GT-230 - Echo String Trimmer (SN: T49414001001 - T49414999999) Gear Case Parts Diagram

String Trimmer

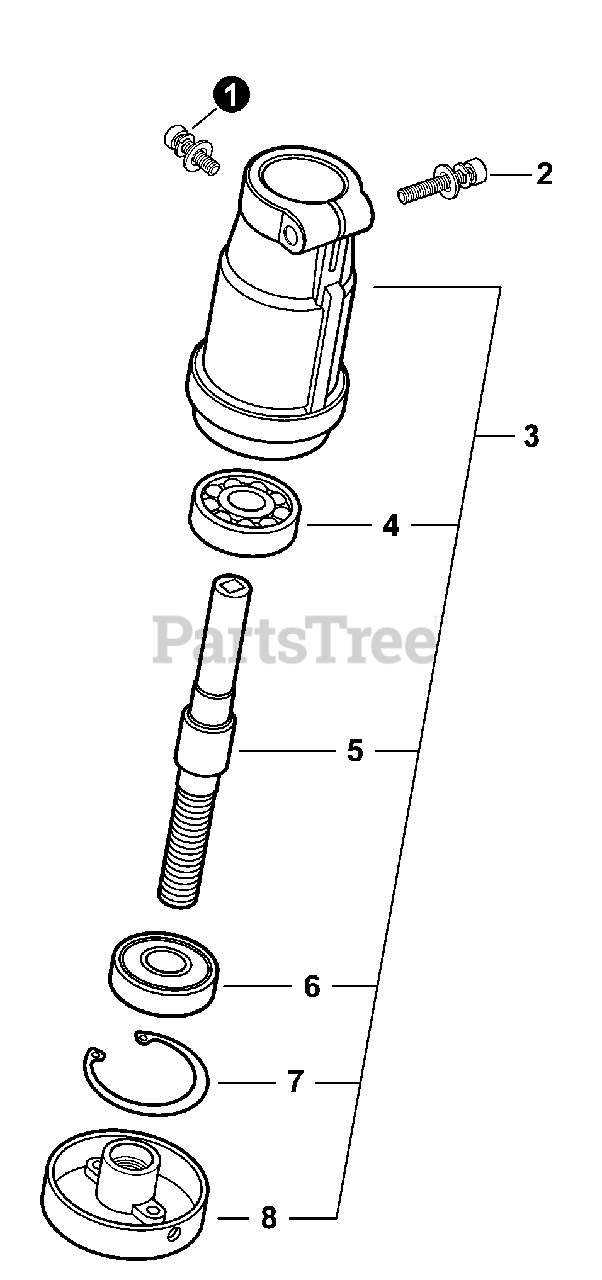

Gear Case Parts Diagram

  • Title

1

Echo 90024204010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo C056000001

GEAR CASE ASSY

Note: Includes ITEMS 4-8

$31.99

$

Usually ships in 2-4 days

0

4

Echo 9406006200

BEARING, BALL 6200
(Superseded to 90081006200)

$10.99

$

Usually ships in 2-4 days

0

5

Echo C534000950

SHAFT, GEAR

$23.99

$

Usually ships in 2-4 days

0

6

Echo 9406106200

BEARING, BALL 6200
(Superseded to 90081106200)

$5.99

$

Usually ships in 2-4 days

0

7

Echo 90070200030

E-RING 30

$2.49

$

In Stock, only 4 left!

0

8

Echo C535000240

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 4 left!

0
