GT 2354 (2690069) - Snapper 54" Garden Tractor, 23hp 54" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

54" Garden Tractor, 23hp

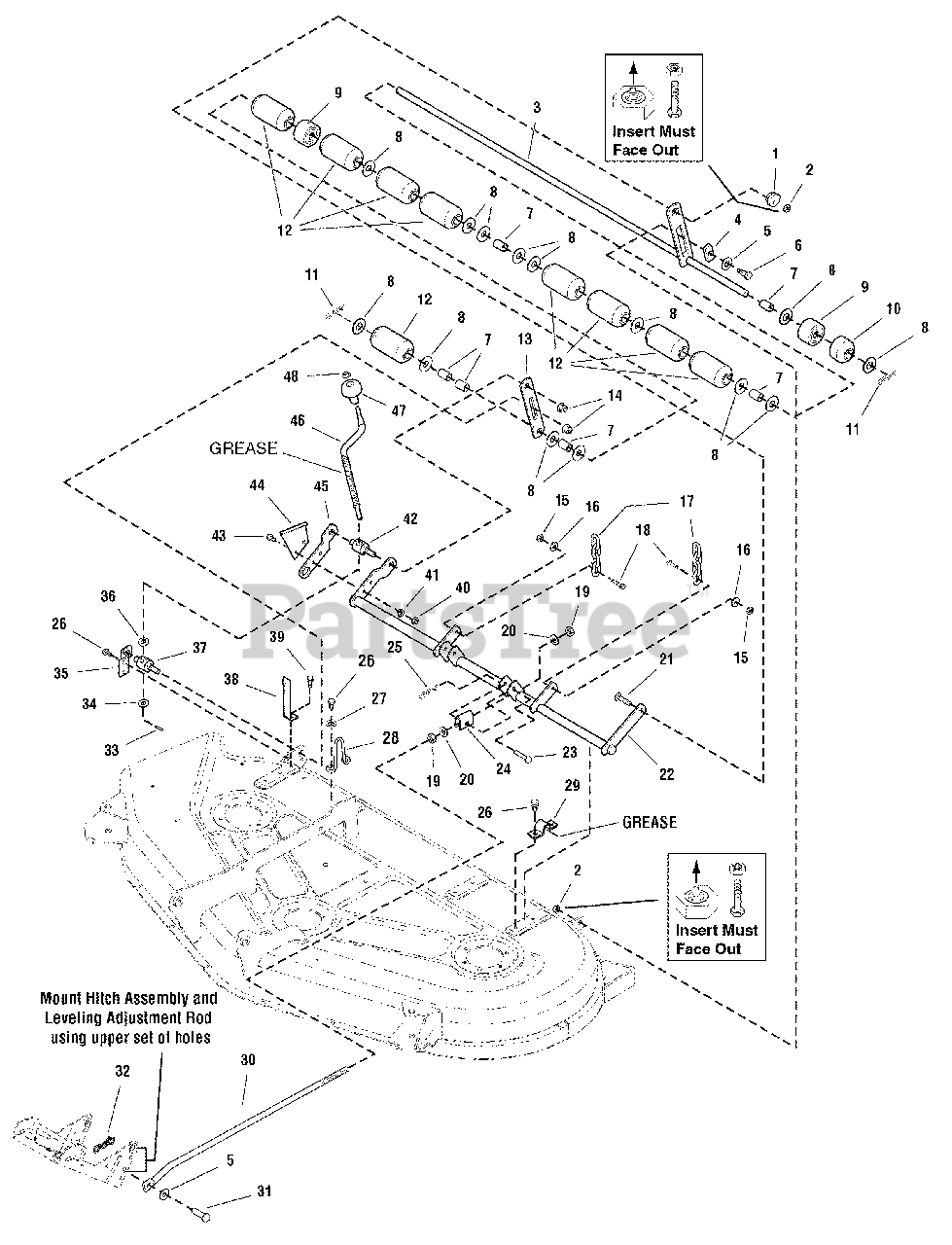

54" Mower Deck - Height Adjustment & Roller Bar Group Parts Diagram

  • Title

1

Snapper 1704082

NUT, Hex, Adjusting
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 9

0

2

Snapper 7960641

NUT, Hex Aluminum Insert Lock, 3/8-16

$

$

Currently unavailable

3

Snapper 1723008A

SHAFT & BAR ASSEMBLY, Roller
(Superseded to 1723008ASM)

$231.99

$

Usually ships in 2-12 days

0

4

Snapper 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, Qty 20+

0

5

Snapper 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 11

0

6

Snapper 2172622

BOLT, Shoulder, 3/8-16 x 1-5/16
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

7

Snapper 1701873

SPACER
(Superseded to 1701873SM)

$6.49

$

In Stock, only 2 left!

0

8

Snapper 2960626

WASHER
(Superseded to 2860626SM)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 1720159

ROLLER, 1 x 2-3/4 x 2, Black
(Superseded to 1720159SM)

$35.99

$

In Stock, only 1 left!

0

10

Snapper 1678043

ROLLER, Half Rounded
(Superseded to 1678043SM)

$45.99

$

In Stock, only 1 left!

0

11

Snapper 1918459

PIN, Cotter, 1/8 x 1-1/2, Black
(Superseded to 703983)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 1678042

ROLLER, with Bushings, Full
(Superseded to 1678043SM)

$45.99

$

In Stock, only 1 left!

0

13

Snapper 1723009A

BAR
(Superseded to 1723009ASM)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 1930644

NUT, Hex Flange, 1/2-13
(Superseded to 1930644SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 12

0

16

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 11

0

17

Snapper 1708088A

CHAIN, 4 Links, 6" Long
(Superseded to 1708088ASM)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 1930570

CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G8
(Superseded to 1930570SM)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 1915726

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, only 1 left!

0

20

Snapper 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 18

0

21

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 8

0

22

Snapper 1720638A

ASSEMBLY, Rocker Shaft
(Superseded to 1732178ASM)

$165.99

$

Usually ships in 2-12 days

0

23

Snapper 2118053

PIN, Round Head, 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

24

Snapper 1706645A

TRUNNION
(Superseded to 1706645ASM)

$8.49

$

Usually ships in 2-12 days

0

25

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 1960541

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 1960541SM)

$3.49

$

In Stock, only 1 left!

0

27

Snapper 1924940

WASHER, 5/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 1719929

UP-STOP, Wire
(Superseded to 1719929SM)

$16.99

$

Usually ships in 2-12 days

0

29

Snapper 1720147A

STRAP
(Superseded to 1720147BZYP)

$9.99

$

Usually ships in 2-12 days

0

30

Snapper 1722995

ROD, 5/8 x 29-5/8 Long
(Superseded to 1722995SM)

$41.99

$

In Stock, only 1 left!

0

31

Snapper 1960116

PIN, Yoke, 1/2
(Superseded to 1960116SM)

$3.99

$

In Stock, Qty 12

0

32

Snapper 1722320

PIN, Bow Tie
(Superseded to 1722320SM)

$3.49

$

In Stock, Qty 16

0

33

Snapper 2916001

PIN, Roll
(Superseded to 2816001SM)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 1704097

WASHER, Detent, 1/2
(Superseded to 1704097SM)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 1720142A

SUPPORT, Trunnion
(Superseded to 1720142ASM)

$26.99

$

Usually ships in 2-12 days

0

36

Snapper 1960170

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

37

Snapper 1704086

TRUNNION
(Superseded to 1704086SM)

$31.99

$

In Stock, only 1 left!

0

38

Snapper 1720643A

INDICATOR, Height
(Superseded to 1720643ASM)

$19.99

$

In Stock, only 2 left!

0

39

Snapper 1960373

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 1917356

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

42

Snapper 1704087

TRUNNION, Threaded
(Superseded to 1704087SM)

$109.99

$

Usually ships in 2-12 days

0

43

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

44

Snapper 1704116A

BRACKET, Height of Cut
(Superseded to 1704116BMYP)

$11.99

$

Usually ships in 2-12 days

0

45

Snapper 1720637A

ARM
(Superseded to 1720637ASM)

$19.99

$

Usually ships in 2-12 days

0

46

Snapper 1719901

CRANK, Height Adjust
(Superseded to 1719901SM)

$48.99

$

In Stock, Qty 7

0

47

Snapper 1714084

KNOB, Spinner
(Superseded to 1714084SM)

$12.99

$

In Stock, only 1 left!

0

48

Snapper 1960093

PUSHNUT, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 8

0
