GT 23540 (2690258) - Snapper 54" Garden Tractor, 23hp Steering Group - Power Steering with Tilt Parts Diagram

54" Garden Tractor, 23hp

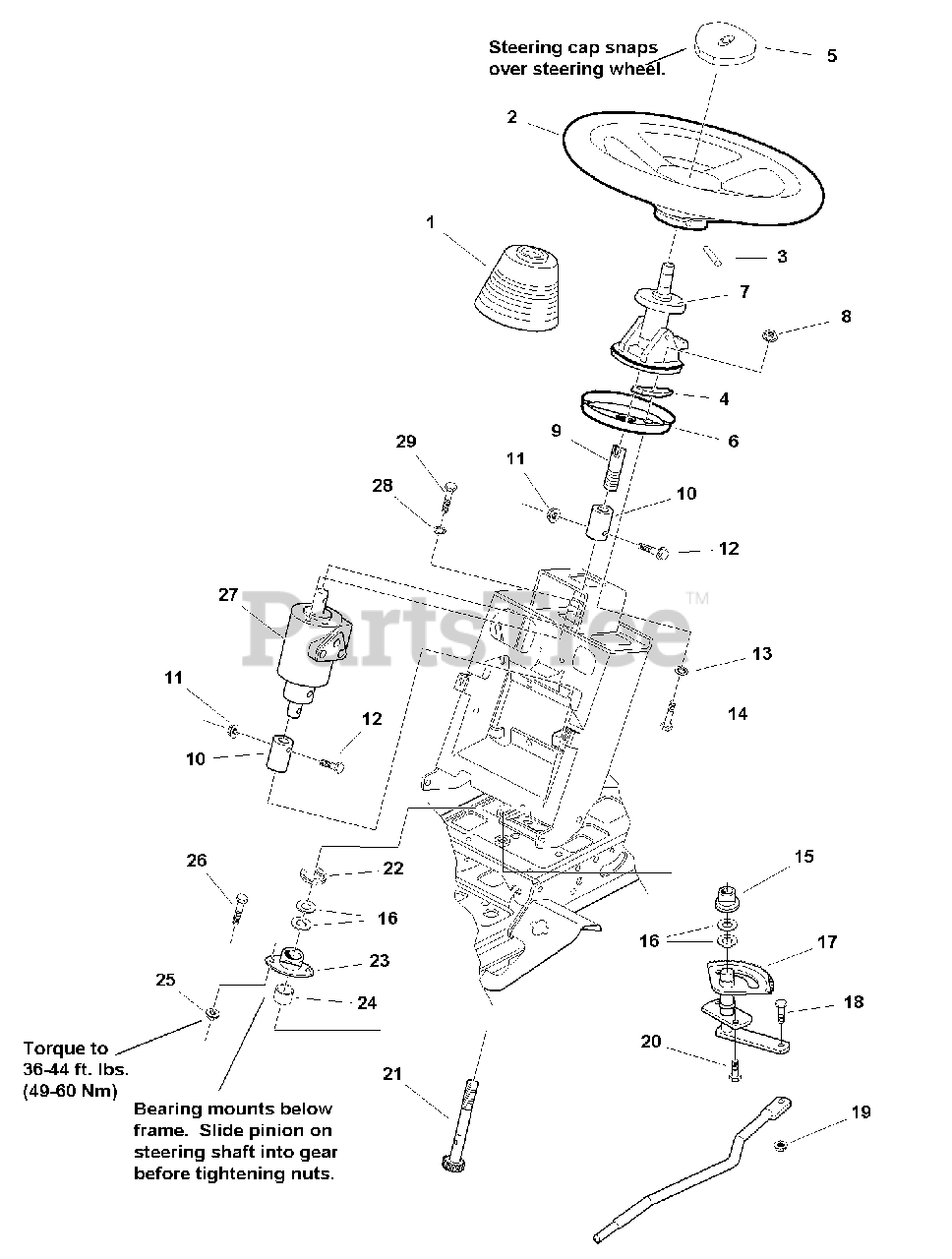

Steering Group - Power Steering with Tilt Parts Diagram

  • Title

1

Snapper 1724368

BOOT, Tilt Steering Unit
(Superseded to 1722749SM)

$

$

Not available

2

Snapper 1722318

STEERING WHEEL, Straight Shaft
(Superseded to 1722318SM)

$117.99

$

In Stock, only 4 left!

0

3

Snapper 1960540

ROLL PIN
(Superseded to 1960540SM)

$4.49

$

In Stock, Qty 9

0

4

Snapper 1723898A

SPACER

$

$

Currently unavailable

5

Snapper 1725024

CAP, Steering Wheel, Plain
(Superseded to 1725024SM)

$7.99

$

In Stock, only 1 left!

0

6

Snapper 1721736A

MOUNTING PLATE
(Superseded to 1721736ASM)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 1724161

TILT STEERING UNIT
(Superseded to 1687680YP)

Note: Applies to Serial Number Units 1999 & Below.

$

$

Not available

8

Snapper 1726026

TILT STEERING UNIT
(Superseded to 1687680YP)

Note: Applies to Serial Number Units 2000 & Above.

$

$

Not available

8

Snapper 2928372

NUT, Hex KEPS, 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

9

Snapper 1722923

ADAPTER, 2-13/16 Long
(Superseded to 1723801SM)

$56.99

$

Usually ships in 2-12 days

0

10

Snapper 1721677

COUPLER, 2-3/8 Long
(Superseded to 1721677SM)

$102.99

$

In Stock, only 1 left!

0

11

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 1922127

CAPSCREW, Hex Head 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 1960518

NUT, Push
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 1931320

CARRIAGE BOLT, 1/4-20 x 1-1/4
(Superseded to 703178)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 2176440

BUSHING, Nylon
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 1960114

WASHER, 3/4
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 1722385

GEAR &, Shaft ASSEMBLY, Steering
(Superseded to 1724470ASM)

$161.99

$

In Stock, only 3 left!

0

18

Snapper 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4
(Superseded to 1960032SM)

$5.49

$

In Stock, Qty 13

0

19

Snapper 1930645

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Snapper 1664847

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 1721628

SHAFT & PINION ASSEMBLY, Steering Power wtih Tilt
(Superseded to 1721628SM)

$124.99

$

In Stock, only 2 left!

0

22

Snapper 1611710

RING, Clipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 13

0

23

Snapper 1722459

BEARING, 3/4 x 1-11/16
(Superseded to 1722459SM)

$11.99

$

In Stock, Qty 11

0

24

Snapper 1722461

SPACER, 3/8" Long
(Superseded to 1722461SM)

$27.99

$

In Stock, only 1 left!

0

25

Snapper 1931211

NUT, Hex Flange Whiz Lock, 3/8-16, Small
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

26

Snapper 1931348

CARRIAGE BOLT, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 1718832

GENERATOR, Torque, Power Steering Unit
(Superseded to 1718832SM)

$1538.99

$

Usually ships in 2-12 days

0

28

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

29

Snapper 1921332

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 20+

0
