GT-2400 - Echo String Trimmer (Type 1E) Clutch, Ignition, Starter Parts Diagram

String Trimmer (Type 1E)

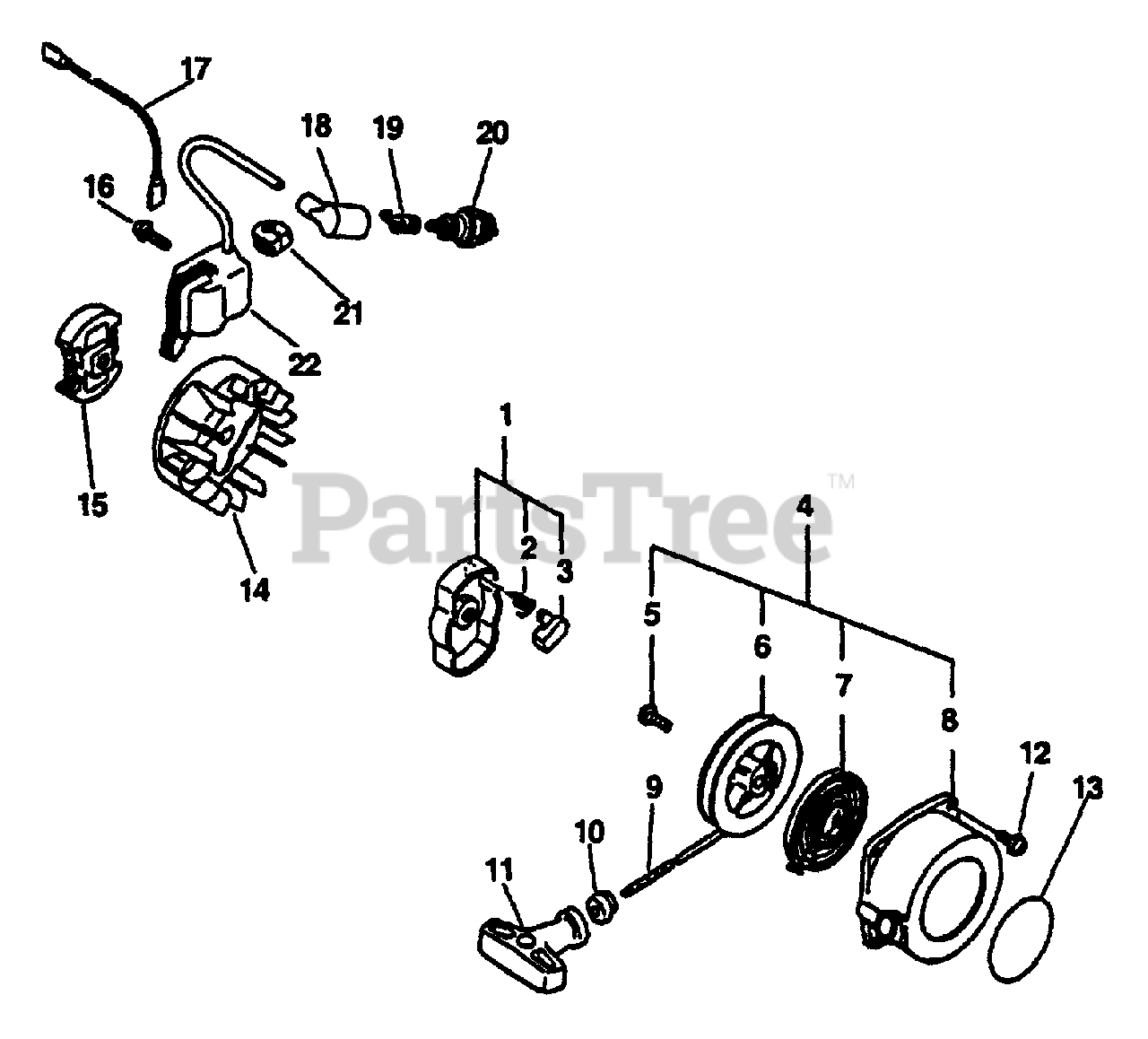

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 2 & 3

$18.99

$

In Stock, only 3 left!

0

2

Echo 17723412220

SPRING, RETURN

$4.49

$

In Stock, Qty 20+

0

3

Echo 17721844330

PAWL, STARTER - BLACK

$3.99

$

In Stock, Qty 20+

0

4

Echo 17720042033

STARTER ASSY

Note: INCLUDES ITEMS 5 - 11

$54.99

$

In Stock, Qty 20+

0

5

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 15

0

6

Echo 17721544430

REEL, ROPE

$9.99

$

In Stock, only 3 left!

0

7

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$10.99

$

In Stock, Qty 20+

0

8

Echo 17723242032

CASE, STARTER

$23.99

$

In Stock, only 2 left!

0

9

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$6.49

$

In Stock, only 2 left!

0

10

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

11

Echo 17722806530

GRIP, STARTER

$5.49

$

In Stock, Qty 8

0

12

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

13

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

14

Echo 15680144731

FLYWHEEL

Note: S/N 001001 - 001622

$117.99

$

Usually ships in 2-4 days

0

14

Echo 15680109660

FLYWHEEL

Note: S/N 001623 & UP

$83.99

$

Usually ships in 2-4 days

0

15

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$30.99

$

In Stock, only 1 left!

0

16

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

17

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

18

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 7

0

19

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

20

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

20

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.49

$

In Stock, Qty 20+

0

22

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 001001 - 001622

$133.99

$

In Stock, only 1 left!

0

22

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: S/N 001623 & UP

$115.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$33.99

$

In Stock, only 3 left!

0
