GT-2400 - Echo String Trimmer (Type 1E) Clutch, Ignition, Starter Parts Diagram

String Trimmer (Type 1E)

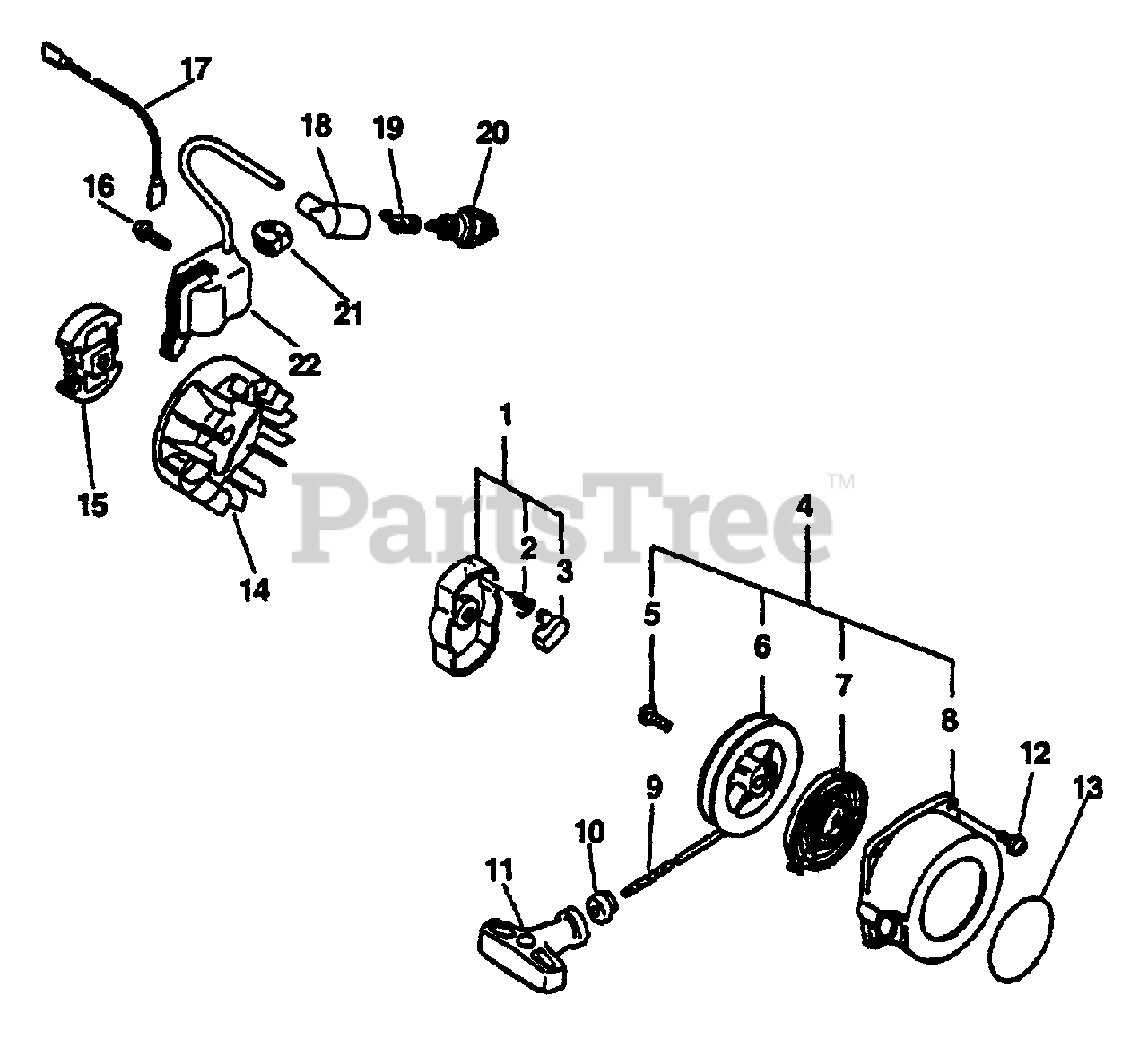

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 177202-44330

PAWL ASSY, STARTER

Note: INCLUDES ITEMS 2 & 3

$11.99

$

In Stock, Qty 9

0

2

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 177200-42033

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 5 - 11

$58.99

$

In Stock, Qty 10

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

7

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

8

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

9

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: RePower BULK OPTION: 99944440000

$6.99

$

In Stock, only 2 left!

0

10

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

11

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

12

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

13

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

14

Echo 156801-44731

FLYWHEEL

Note: S/N 001001 - 001622

$126.99

$

Usually ships in 2-4 days

0

14

Echo 15680109660

FLYWHEEL

Note: S/N 001623 & UP

$90.99

$

Usually ships in 2-4 days

0

15

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0

16

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

17

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

18

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

19

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

20

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

20

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

22

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 001001 - 001622

$143.99

$

In Stock, only 1 left!

0

22

Echo 15662609660

COIL, IGNITION
(Superseded to 15662609661)

Note: S/N 001623 & UP

$124.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
