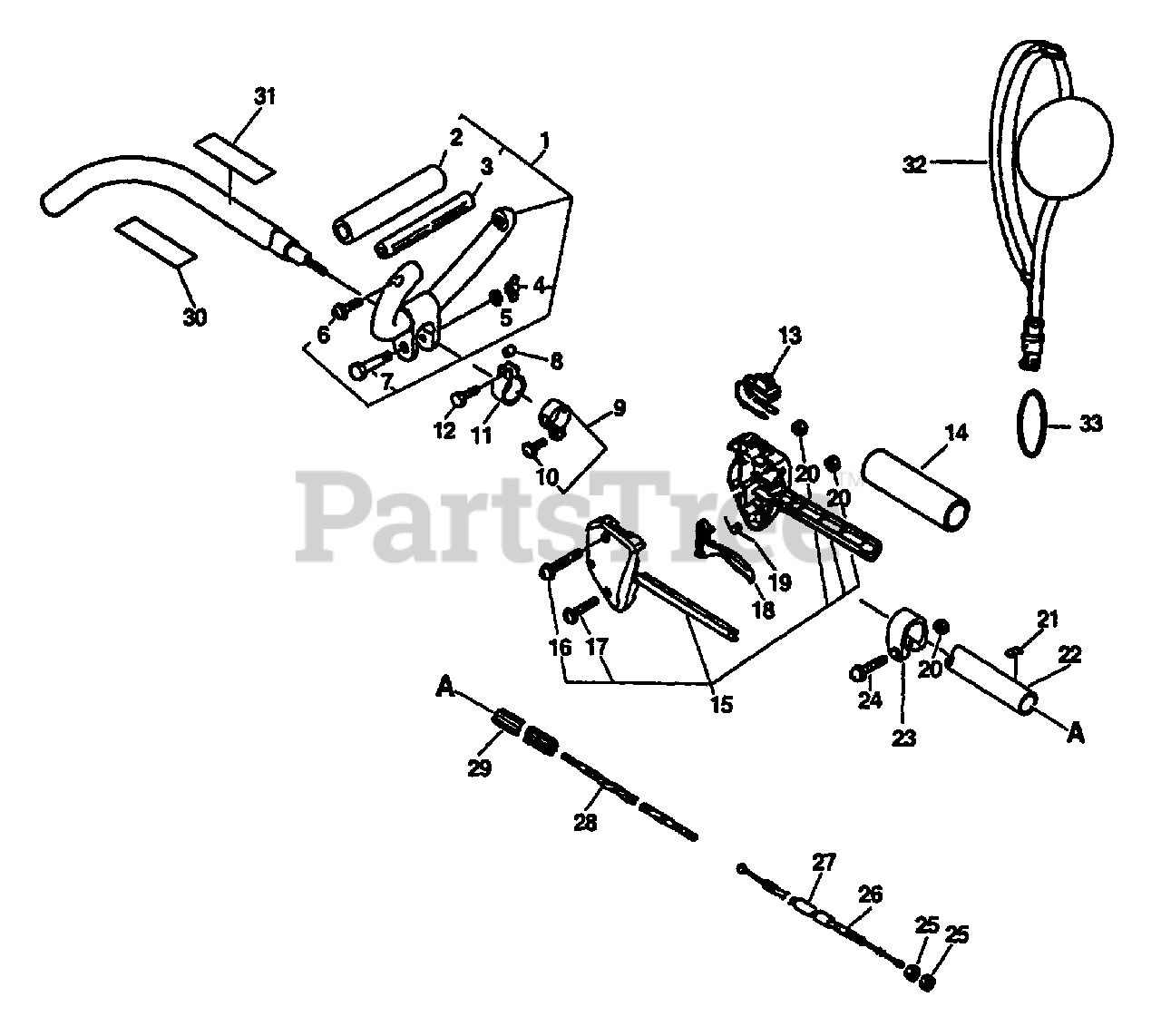

GT-2400 - Echo String Trimmer (Type 1E) Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer (Type 1E)

Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 35120150630

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2 - 7

$30.99

$

Usually ships in 2-4 days

0

2

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 8

0

3

Echo 35121051730

HANDLE

$4.49

$

Usually ships in 2-4 days

0

4

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

5

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

6

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

8

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 16

0

9

Echo 30120152730

CLAMP KIT

Note: Includes ITEM 10

$9.49

$

Usually ships in 2-4 days

0

10

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

11

Echo 30120723330

HOOK

$4.99

$

Usually ships in 2-4 days

0

12

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

13

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 14

0

14

Echo 35121352730

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 17800352730

CONTROL HANDLE ASSY
(Superseded to 17800352731)

Note: INCLUDES ITEMS 16, 17 & 20

$10.99

$

Usually ships in 2-4 days

0

16

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

17

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

19

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

22

Echo 61060944530

MAIN PIPE ASSY

$52.99

$

Usually ships in 2-4 days

0

23

Echo 61027252730

CLAMP

$9.99

$

Usually ships in 2-4 days

0

24

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 9

0

25

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

26

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, Qty 12

0

27

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, only 4 left!

0

28

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

$23.99

$

Usually ships in 2-4 days

0

29

Echo 61021744530

LINER - FLEXIBLE

$16.99

$

In Stock, Qty 17

0

30

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0

31

Echo 89031744530

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

32

Echo 30100054331

SHOULDER STRAP ASSY
(Superseded to C062000080)

$20.99

$

Usually ships in 2-4 days

0

33

Echo 30101652730

RING

$1.49

$

Usually ships in 2-4 days

0
