GT-2400 - Echo String Trimmer (Type 1E) Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

String Trimmer (Type 1E)

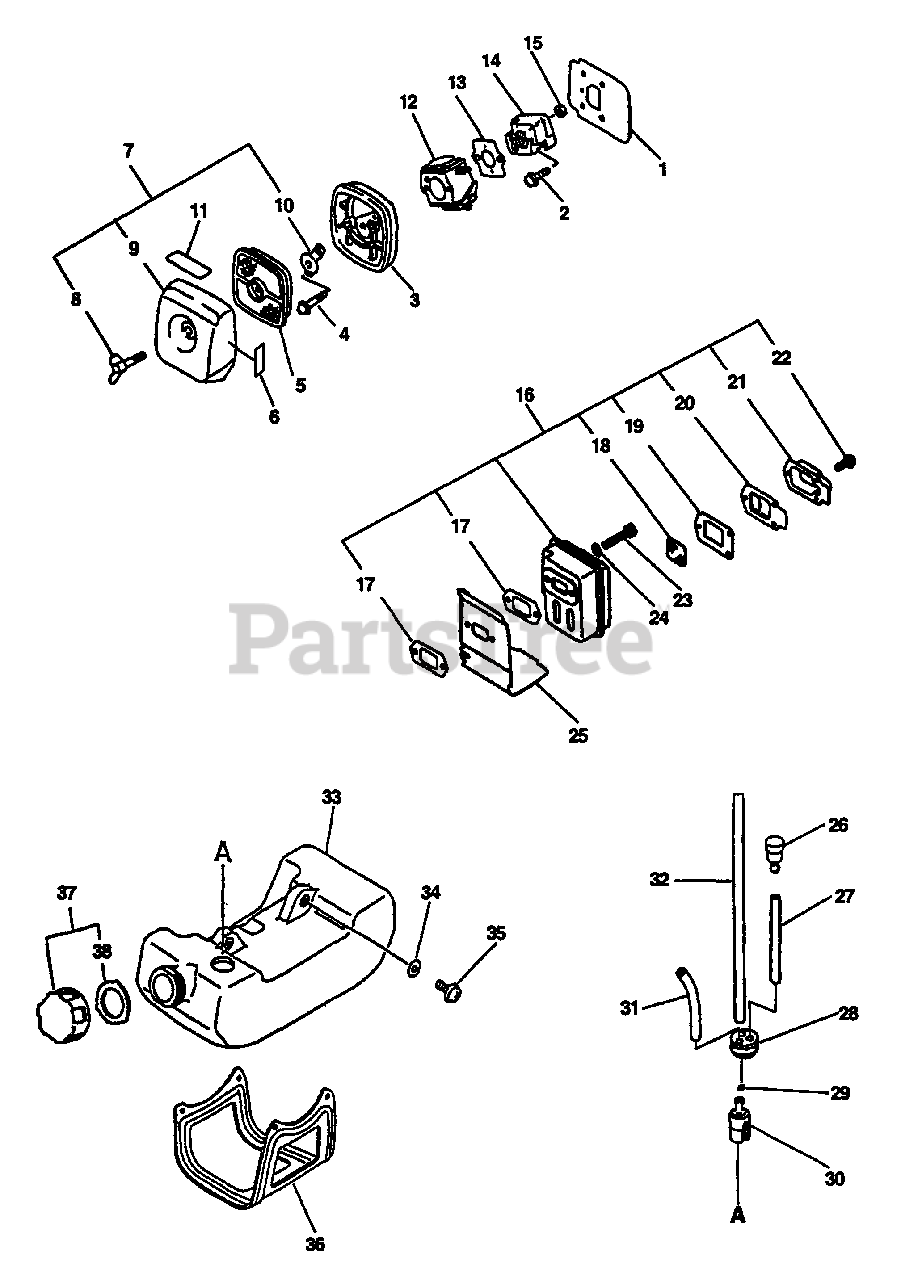

Intake, Air Cleaner, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN KIT P/N 88900005960

$2.99

$

In Stock, Qty 12

0

2

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

3

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

4

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

5

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: INCLUDED IN KIT P/N 90008

$8.99

$

In Stock, Qty 20+

0

6

Echo 89012152730

LABEL, CHOKE

$1.49

$

In Stock, Qty 17

0

7

Echo 13030206561

COVER, AIR FILTER

Note: INCLUDES ITEMS 8 - 10

$9.49

$

In Stock, only 2 left!

0

8

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

9

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

10

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

11

Echo 89033552730

LABEL - METERING

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12300052131

CARBURETOR - WT-424A
(Superseded to 12300052132)

$113.99

$

Usually ships in 2-4 days

0

13

Echo 13001005960

GASKET, CARBURETOR

Note: INCLUDED IN KIT P/N 88900005960

$1.99

$

In Stock, Qty 6

0

14

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: Includes ITEMS 17 - 22

$

$

Not available

17

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900005960

$2.49

$

In Stock, Qty 20+

0

18

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

19

Echo 145866-42031

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900005960

$2.99

$

In Stock, only 2 left!

0

20

Echo 14587642030

GUIDE, EXHAUST

$4.99

$

In Stock, only 3 left!

0

21

Echo 14581852130

OUTLET, EXHAUST

$8.49

$

Usually ships in 2-4 days

0

22

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, only 2 left!

0

23

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

24

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

25

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

26

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

Note: INCLUDED IN KIT P/N 90010

$8.99

$

In Stock, Qty 7

0

27

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

28

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

29

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

30

Echo 131205-07320

FILTER, FUEL

Note: INCLUDED IN KIT P/N 90008

$6.49

$

In Stock, Qty 20+

0

31

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

32

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

33

Echo 131005-44331

TANK, FUEL
(Superseded to 13100544332)

$21.99

$

In Stock, Qty 6

0

34

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

35

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

36

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available

37

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: INCLUDES ITEM 38. (INCLUDED IN KIT P/N 90010)

$5.49

$

In Stock, only 2 left!

0

38

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
