GT 2454 F (960430238-00) - RedMax 54" Garden Tractor, 24hp (2017-08) CHASSIS / FRAME Parts Diagram

54" Garden Tractor, 24hp

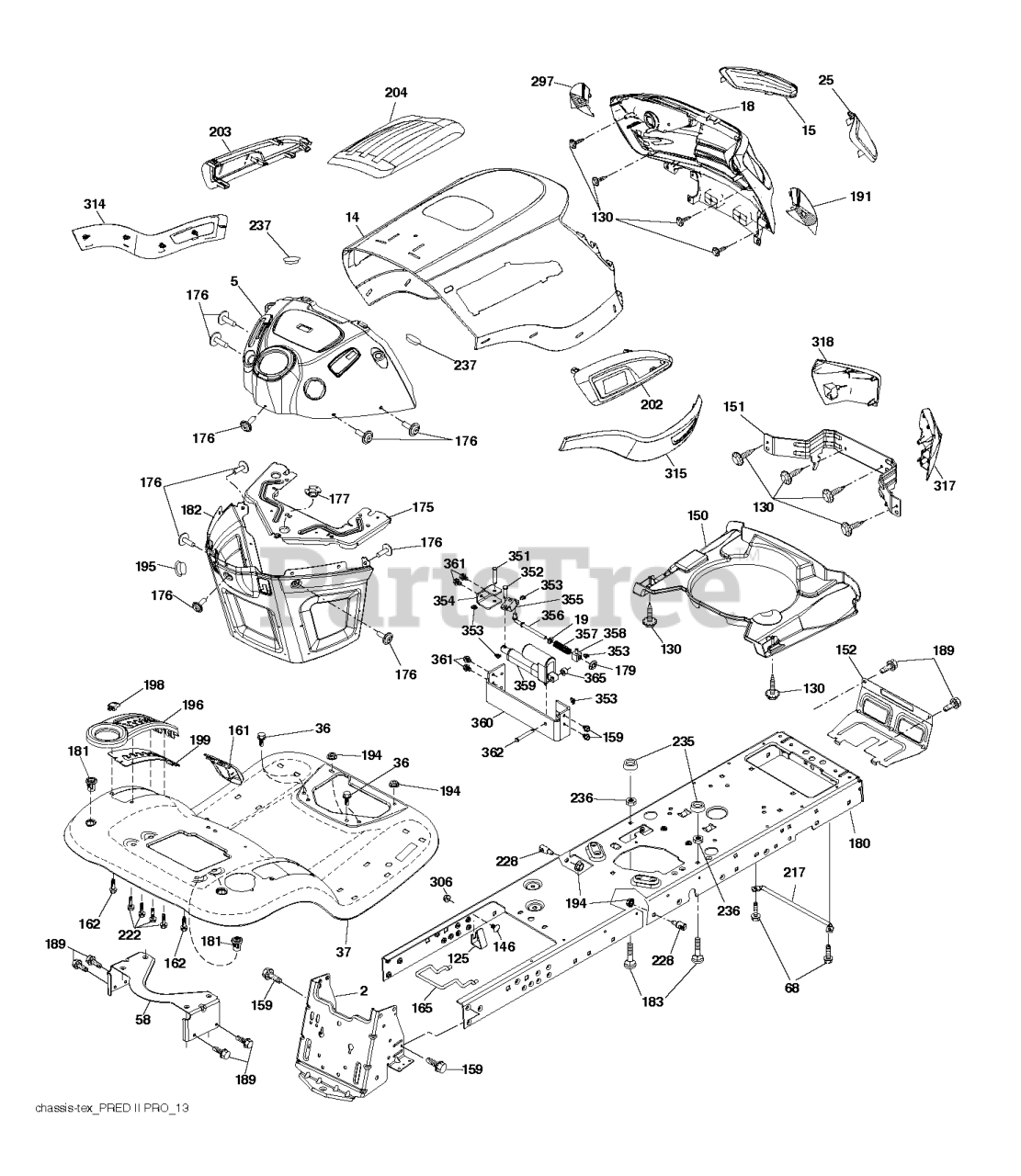

CHASSIS / FRAME Parts Diagram

  • Title

2

RedMax 580434401

DRAWBAR.STGT

$125.99

$

In Stock, only 4 left!

0

5

RedMax 591143501

DASHBOARD DASH.YT.PRED.REC.GA.

$24.99

$

Usually ships in 3-10 days

0

14

RedMax 591144301

HOOD HOOD.GRILL.PREDII.YT/GT.Y

$60.99

$

Usually ships in 3-10 days

0

15

RedMax 587898601

LENS.LH.PRED II.YT.CLR.SVC
(Superseded to 583752001)

Note: LH

$20.99

$

Usually ships in 3-10 days

0

18

RedMax 591044901

GRILLE.PRED2.GT.PRO.REDMAX
(Superseded to 591045001)

$227.99

$

Usually ships in 3-10 days

0

19

RedMax 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 12

0

25

RedMax 587898401

LENS.RH.PRED II.YT.CLR.SVC
(Superseded to 583752101)

Note: RH

$20.99

$

Usually ships in 3-10 days

0

36

RedMax 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

RedMax 591155101

FENDER FENDER PNT CONVERSION 4

$262.99

$

Usually ships in 3-10 days

0

58

RedMax 532194314

BRKT.SUPPORT.FNDR/TANK

$45.99

$

Usually ships in 3-10 days

0

68

RedMax 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

125

RedMax 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

130

RedMax 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

Usually ships in 3-10 days

0

146

RedMax 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

150

RedMax 584862901

PREDATOR.YT.GT.HOOD.AIR DUCT

$34.99

$

Usually ships in 3-10 days

0

151

RedMax 532445494

BRACKET.PIVOT.PREDATOR

$37.99

$

Usually ships in 3-10 days

0

152

RedMax 532194329

SHIELD.BROWNING/DEBRIS

$22.99

$

Usually ships in 3-10 days

0

159

RedMax 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

161

RedMax 532411879

CONSOLE.FUEL.WINDOW.STGT.BLACK

$8.99

$

Usually ships in 3-10 days

0

162

RedMax 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

RedMax 532194330

SUPPORT.TANK.REAR.B/TE

$22.99

$

Usually ships in 3-10 days

0

175

RedMax 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0

176

RedMax 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

RedMax 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

179

RedMax 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

180

RedMax 532445559

CHASSIS.TEX.BOLTED
(Superseded to 582033101)

$341.99

$

Usually ships in 3-10 days

0

181

RedMax 532404796

BUSHING.MNT.FEND.CRGO.
(Superseded to 532403025)

$

$

Not available

182

RedMax 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$113.99

$

In Stock, Qty 6

0

183

RedMax 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

RedMax 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

191

RedMax 532425407

INSERT INSERT.REFLECTIVE.RH
(Superseded to 583419801)

$7.49

$

Usually ships in 3-10 days

0

194

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

195

RedMax 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

RedMax 532411878

CONSOLE ASM DECK LIFT BLACK

$34.99

$

Usually ships in 3-10 days

0

198

RedMax 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

RedMax 532196377

PLATE DECK LIFT

$43.99

$

Usually ships in 3-10 days

0

202

RedMax 591045401

VENT SIDE. HOOD. PREDATOR II.

Note: RH

$13.99

$

Usually ships in 3-10 days

0

203

RedMax 591045402

VENT SIDE. HOOD. PREDATOR II.

Note: LH

$13.99

$

Usually ships in 3-10 days

0

204

RedMax 587963201

VENT ASM.TOP.PRED GT PRO.428
(Superseded to 583751801)

$34.99

$

Usually ships in 3-10 days

0

217

RedMax 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 1 left!

0

222

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

228

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

RedMax 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

RedMax 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

0

237

RedMax 532403704

PLUG.MOUNT.CARGO.BLK

$4.99

$

Usually ships in 3-10 days

0

297

RedMax 532425406

INSERT INSERT.REFLECTIVE.LH
(Superseded to 583419701)

$7.49

$

Usually ships in 3-10 days

0

306

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

314

RedMax 591052502

TRIM SUBASM. PREDATOR II. YT/G

$85.99

$

Usually ships in 3-10 days

0

315

RedMax 591052501

TRIM SUBASM. PREDATOR II. YT/G

$85.99

$

Usually ships in 3-10 days

0

317

RedMax 591042301

BUMPER CORNER. PREDATOR II. GT

$79.99

$

Usually ships in 3-10 days

0

318

RedMax 591043601

BUMPER CORNER. PREDATOR II. GT

$79.99

$

Usually ships in 3-10 days

0

351

RedMax 532421734

PIN.CLEVIS.375X2.125

$7.99

$

Usually ships in 3-10 days

0

352

RedMax 532448634

PIN.CLEVIS.(.375 X 1.25)
(Superseded to 583598001)

$7.99

$

In Stock, only 1 left!

0

353

RedMax 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

354

RedMax 532448619

SUPPORT.BELLCRANK
(Superseded to 583597601)

$21.99

$

Usually ships in 3-10 days

0

355

RedMax 532448636

BELLCRANK.PIVOT.LOCK.DIFF
(Superseded to 583598101)

$43.99

$

Usually ships in 3-10 days

0

356

RedMax 532448693

LINK.LOCK.DIFF
(Superseded to 583598601)

$9.99

$

Usually ships in 3-10 days

0

357

RedMax 532448684

SPRING.COMPRESSION
(Superseded to 583598501)

$7.99

$

Usually ships in 3-10 days

0

358

RedMax 580366601

GUIDE.SWIVEL
(Superseded to 583626401)

$9.49

$

Usually ships in 3-10 days

0

359

RedMax 584393401

ACTUATOR.ELECTRIC

$338.99

$

Usually ships in 3-10 days

0

360

RedMax 532448618

BRACKET.ACUATOR
(Superseded to 583597501)

$84.99

$

Usually ships in 3-10 days

0

361

RedMax 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days

0

362

RedMax 532448633

PIN.CLEVIS.(.375 X 2.42)
(Superseded to 583597901)

$3.99

$

Usually ships in 3-10 days

0

365

RedMax 532447368

SPACER.NYLON.75" X .4375
(Superseded to 583590601)

$4.99

$

Usually ships in 3-10 days

0

--

RedMax 586064001

GUARD.BRUSH.PIVOT.MS428

$250.99

$

Usually ships in 3-10 days

0
