GT 2454 F (960430238-00) - RedMax 54" Garden Tractor, 24hp (2017-08) MOWER LIFT / DECK LIFT Parts Diagram

54" Garden Tractor, 24hp

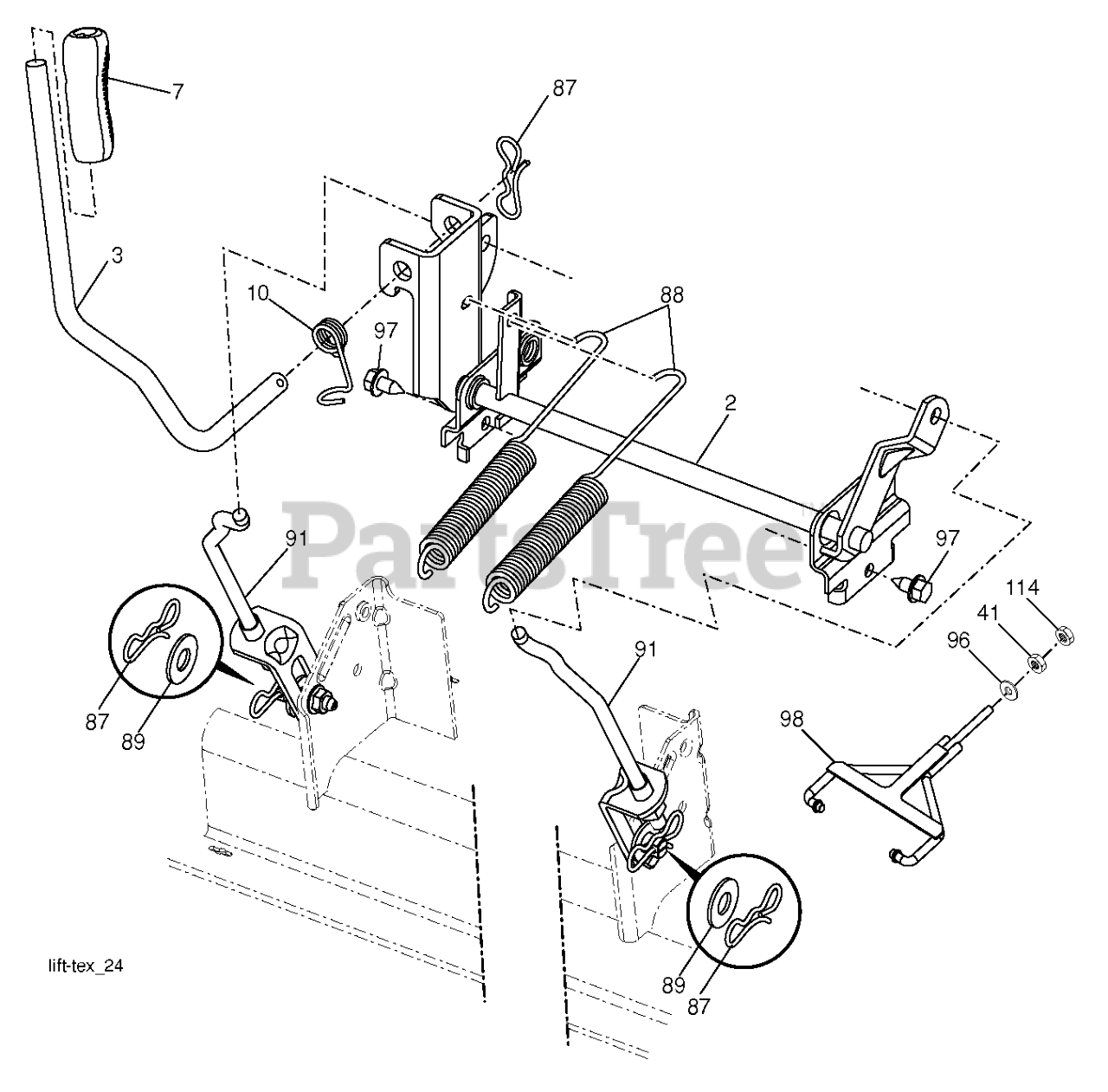

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

2

RedMax 532422027

SHAFT.ASM.CROSS.LIFT

$79.99

$

In Stock, only 1 left!

0

3

RedMax 532195230

LEVER.LIFT.HANDLE.GT
(Superseded to 596270601)

$26.99

$

In Stock, only 2 left!

0

7

RedMax 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 4 left!

0

10

RedMax 532196314

SPRING.TORSION.LIFT.HANDLE

$4.99

$

In Stock, only 2 left!

0

41

RedMax 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

Usually ships in 3-10 days

0

87

RedMax 532194209

PIN.COTTER.7/16.BOW TI.

$3.49

$

In Stock, Qty 10

0

88

RedMax 532195304

SPRING.LIFT.ASSIST.GT2

$

$

Not available

89

RedMax 819191912

WASHER.CLEAR.ZINC

$3.49

$

In Stock, Qty 16

0

91

RedMax 532403407

LINK.ASM.LIFT.54"TG
(Superseded to 589464805)

$22.99

$

In Stock, only 2 left!

0

96

RedMax 532195263

BUSHING SPHERICAL SUSP. FRONT
(Superseded to 593842101)

$5.99

$

In Stock, Qty 8

0

97

RedMax 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

98

RedMax 589318703

DECK ATTACHMENT FRONT LINK WEL

$26.99

$

In Stock, only 4 left!

0

114

RedMax 873360700

NUT **

$

$

Not available
