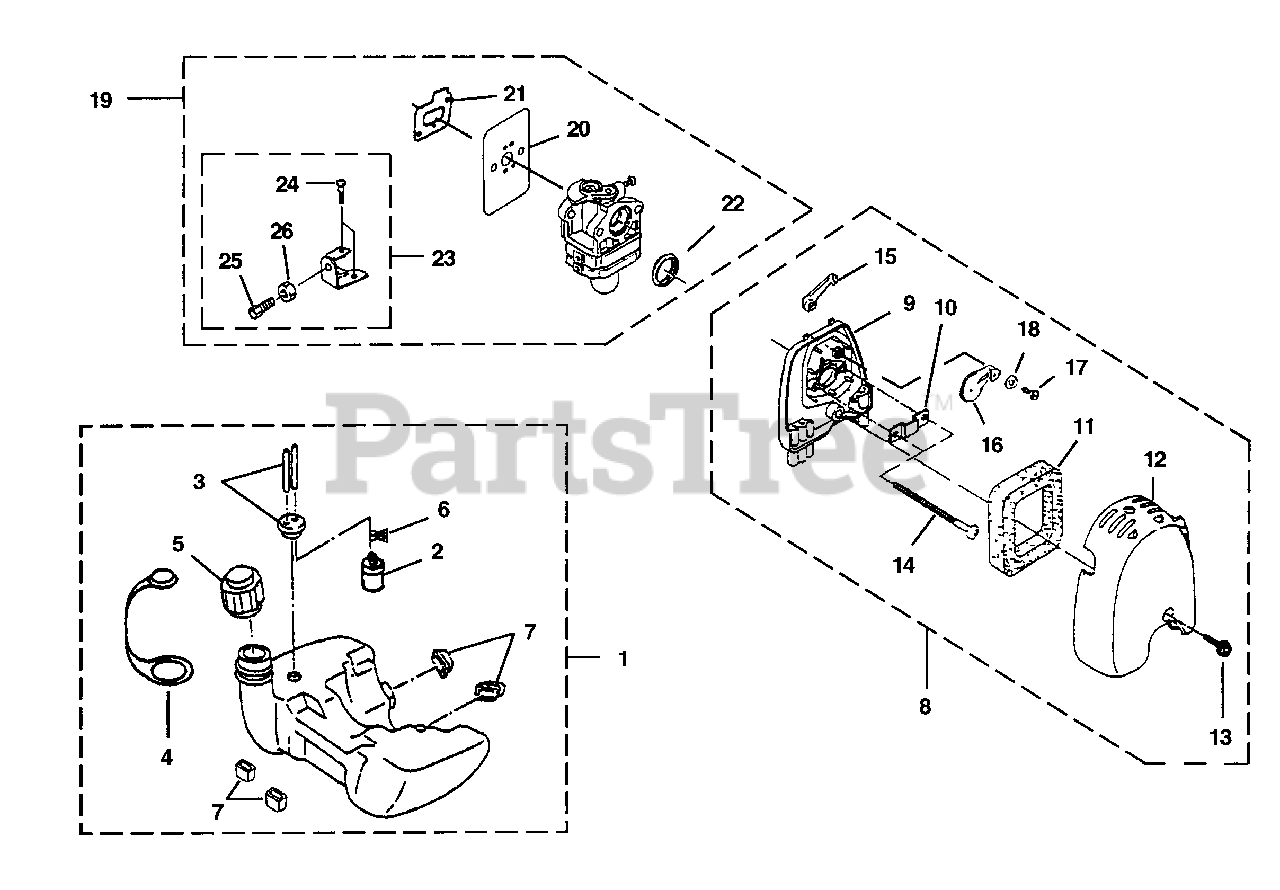

GT 25 (UT-26053) - Green Machine String Trimmer Air Filter - Carburetor - Fuel Tank Parts Diagram

String Trimmer

Air Filter - Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite UP05109

FUEL TANK ASSEMBLY

$

$

Not available

2

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

3

Homelite PS00521

TUBE

$

$

Not available

4

Homelite PS00522

CAP-Retainer
(Superseded to UP02946)

$

$

Not available

5

Homelite UP02946

CAP-Fuel

$

$

Not available

6

Homelite PS00833

CLAMP-Hose

$

$

Not available

7

Homelite UP00481

RUBBER BUMPER KIT

$

$

Not available

8

Homelite UP00486

AIR FILTER ASSEMBLY

$

$

Not available

9

Homelite PS00612

BODY-Air Filter

$

$

Not available

10

Homelite PS00546

PLATE-Air Filter

$

$

Not available

11

Homelite UP02947

FILTER-Air

$

$

Not available

12

Homelite PS00548

COVER-Air Filter

$

$

Not available

13

Homelite PS00802

SCREW ASSEMBLY (M5 x 14)

Note: Torque Specs: 11-15 In/Lbs, 1.2-1.7 Nm

$

$

Not available

14

Homelite PS00614

SCREW

Note: Torque Specs: 19-25 In/Lbs, 2.1-2.8 Nm

$

$

Not available

15

Homelite PS02692

LEVER-Choke

$

$

Currently unavailable

16

Homelite PS02693

PLATE-Choke

$

$

Not available

17

Homelite PS02694

SCREW-Tapping

$

$

Not available

18

Homelite PS02695

WASHER
(Superseded to PS01363)

$

$

Not available

19

Homelite UP05108

CARBURETOR ASSEMBLY

$

$

Not available

20

Homelite PS00582

GASKET-Carburetor

$

$

Not available

21

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

22

Homelite PS00541

RING-Packing

$

$

Not available

23

Homelite UP00485

CABLE BRACKET ASSEMBLY

$

$

Not available

24

Homelite PS00542

SCREW-Throttle Collar

Note: Torque Specs: 48-56 In/Lbs, 5.4-6.3 Nm

$

$

Not available

25

Homelite PS00611

SCREW-Cable Adjust

$

$

Not available

26

Homelite PS00544

NUT-Cable Adjust

$

$

Not available
