GT 2523-54 (13A-2A8K710) - Cub Cadet 54" Garden Tractor Blower Housing And Baffles Parts Diagram

54" Garden Tractor

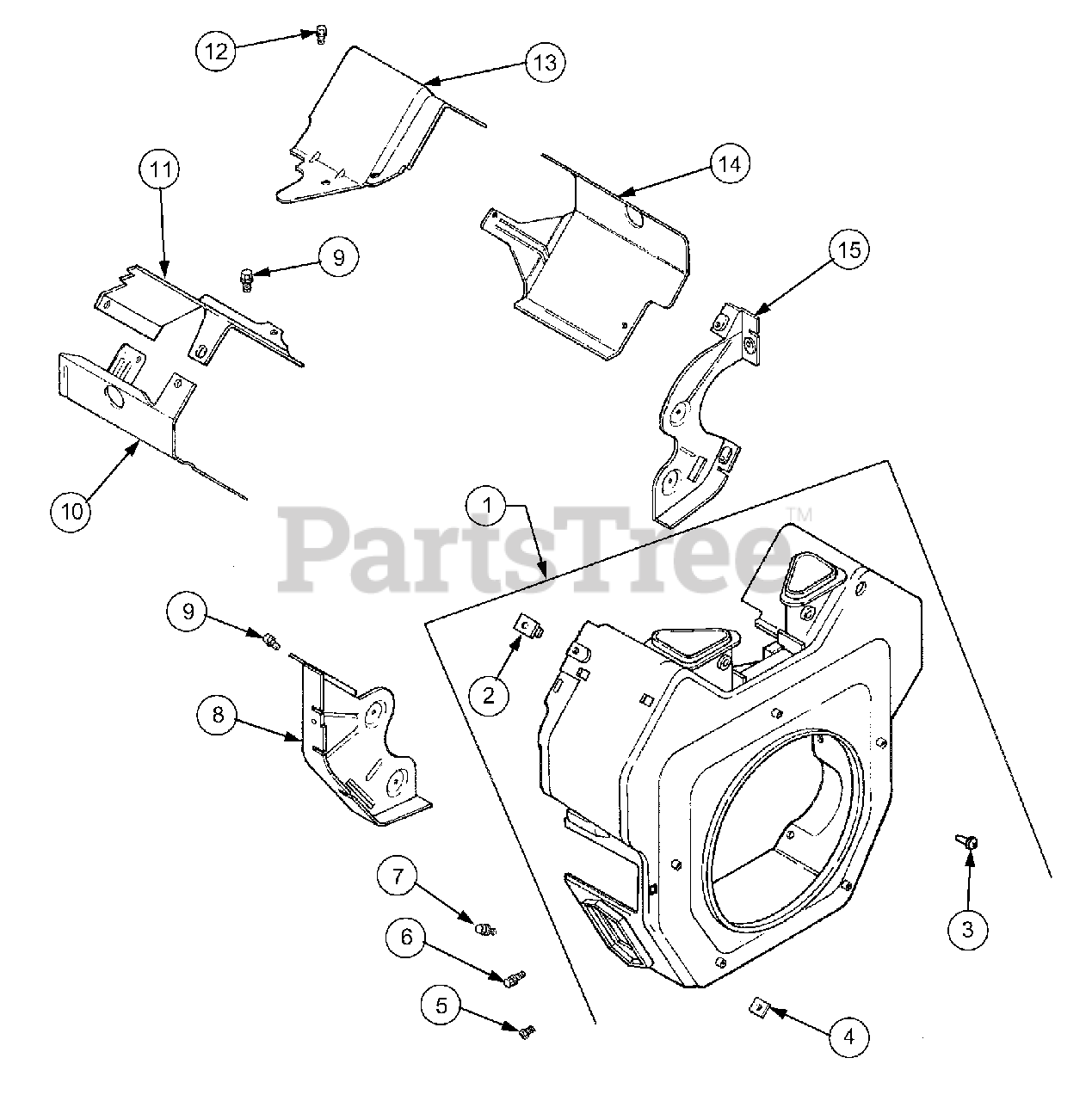

Blower Housing And Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-195-S

Housing, Blower

Note: (Incl. Ref #2-4 and KH-24-096-85-S)

$

$

Currently unavailable

2

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, only 4 left!

0

3

Cub Cadet KH-25-086-91-S

Screw, Tapping

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-100-02

Nut, Plastic

$

$

Not available

5

Cub Cadet KH-M-0551016

Screw, Hex Flange, M5 x 0.8 x 16

$

$

Not available

6

Cub Cadet KH-M-545016-S

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-M-0545020

Screw, Hex Flange, M5 x 0.8 x 20

$

$

Not available

8

Cub Cadet KH-24-146-19-S

Plate, Backing - #2 Side
(Superseded to KH-24-146-59-S)

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-0645016

Screw, Hex Flange, M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$4.99

$

In Stock, Qty 9

0

10

Cub Cadet KH-24-063-39-S

Baffle, Cylinder Barrel - #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-17

Baffle, Valley - #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x 0.8 x 10

$

$

Not available

13

Cub Cadet KH-24-063-59-S

Baffle, Valley - #1 Side
(Superseded to KH-24-063-93-S)

$5.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-58-S

Baffle, Cylinder Barrel - #1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-146-20-S

Plate, Backing - #1 Side

$

$

Not available

Cub Cadet KH-24-096-85-S

Cover, Blower Housing
(Superseded to KH-24-096-161-S)

Note: Not Shown

$2.49

$

In Stock, Qty 11

0
