GT 2542 (14A-2D2G010) - Cub Cadet 42" Garden Tractor (2009 & After) Drive Line Parts Diagram

42" Garden Tractor

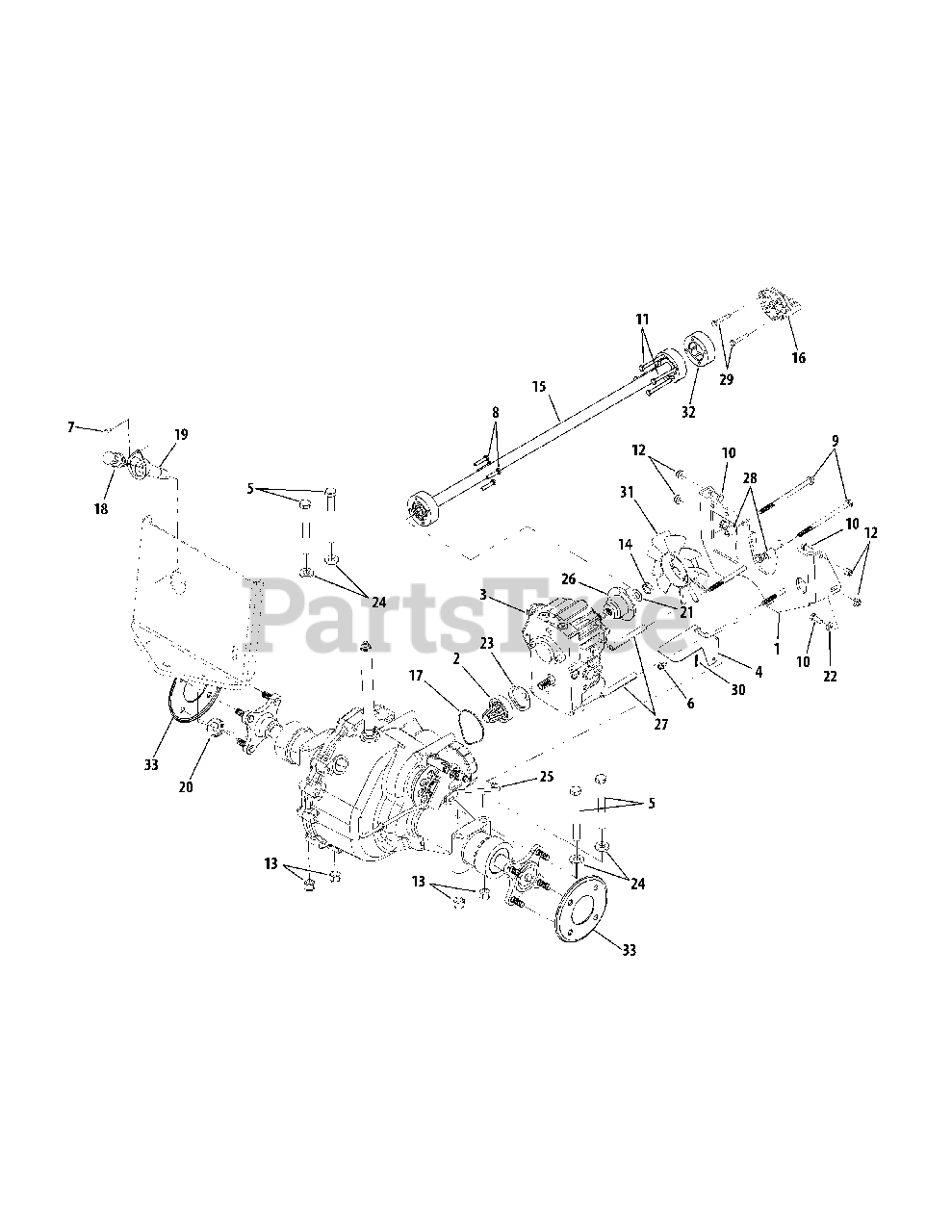

Drive Line Parts Diagram

  • Title

1

Cub Cadet 603-0707

Bracket, Torque

$

$

Not available

2

Cub Cadet 617-3002

Gear Assembly, Pinion

$

$

Not available

3

Cub Cadet 918-3243

Transmission, Hydrostatic

$1403.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-4093

Spring Plate, Hydro Dump

Variations

Cub Cadet 703-4093-0637

Dump Valve Plate, Iron - POWDER BLACK (0637)

$26.99

$

In Stock, only 3 left!

0

$26.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0465

Screw, Hex Cap, 1/2-20 x 4.5 GR5

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0599

Scrw, Hx Wsh Hd Tapp, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0919

Scrw, Hx Wsh Hd Tapp, 10-16 x .44

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet 710-1062

Screw, Hex Patch, 1/4-20 x 1.25 GR5

$5.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1888

Scrw, Hx Hd Tapp, 5/16-18 x 5.25

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-04743

Screw, Hex Patch, 1/4-20 x 2.5 Gr5

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Nut, Hex Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3058

Nut, Hex Nylon Lock, 1/2-20 GR2

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3059

Nut, Hex Top Lock Jam, 1/2-20

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 918-04610

Shaft, Drive, 29.75 Lg

$357.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 759-3764

Drive Barrel Kit

Note: Not shown (2 used per tractor)

$25.99

$

In Stock, Qty 20+

0

16

Cub Cadet 719-3096

Adapter, Engine
(Superseded to KH-24-029-12-S)

$32.99

$

In Stock, only 1 left!

0

17

Cub Cadet 721-0519

Seal, Gland

$32.99

$

In Stock, only 1 left!

0

18

Cub Cadet 727-3195

Dipstick, Transmission

$30.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-3294

Holder, Dipstick

$12.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 735-0277A

Grommet, Rubber, .75 x 1.063

$9.99

$

In Stock, only 2 left!

0

21

Cub Cadet 936-0253

Washer, Belleville
(Superseded to 736-0253)

$

$

Not available

22

Cub Cadet 936-0275

Washer, Flat, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

23

Cub Cadet 736-0619

Washer, Spring

$17.99

$

In Stock, only 1 left!

0

24

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134

$5.49

$

In Stock, Qty 17

0

25

Cub Cadet 747-3417B

Rod, Hydro Dump Valve

$30.99

$

In Stock, only 3 left!

0

26

Cub Cadet 748-3093

Adapter, Hydro Pump

$130.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 750-3349

Spacer, Hydro, .323 x .443 3.51

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 750-3350

Spacer, Hydro, .323 x .600 x .74

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet KH-24-086-17-S

Screw, Hex Patch, M10-1.5x 90mm

$2.49

$

In Stock, Qty 20+

0

30

Cub Cadet 914-0104

Internal Cotter Pin
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 731-3297

Fan, Pump

$35.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 718-04428

Adapter, Drive Shaft
(Superseded to 718-04428A)

$56.99

$

In Stock, only 2 left!

0

33

Cub Cadet 703-06936-0637

Rim Reinforcement Plate

$23.99

$

Usually ships in 3-6 days

0
