GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Battery Electrical Components and Switches Parts Diagram

42" Garden Tractor

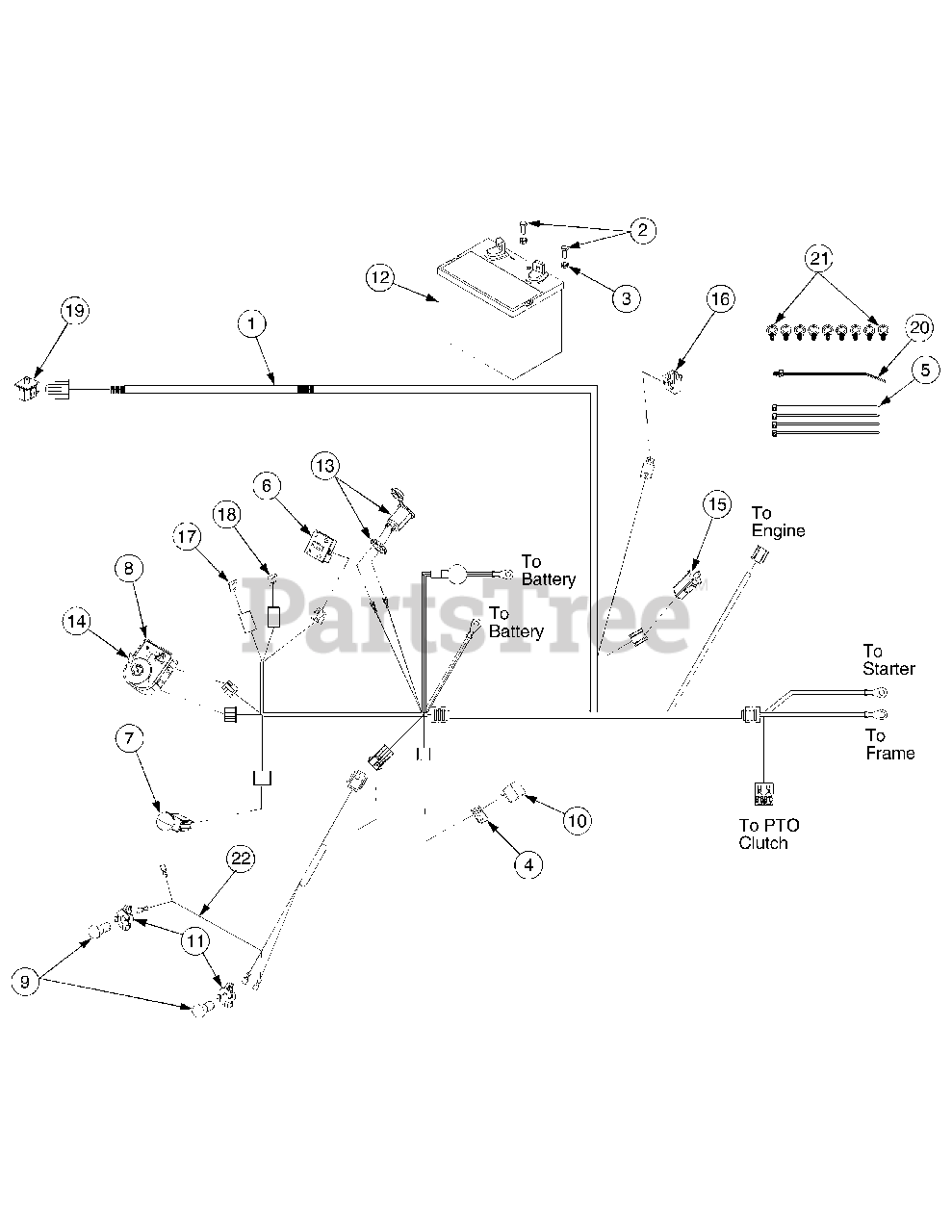

Battery Electrical Components and Switches Parts Diagram

  • Title

1

Cub Cadet 629-04158

Wire Harness, Main
(Superseded to 929-04158A)

$333.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-3015

Screw, Hex, 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0271

Sems Nut

$4.99

$

In Stock, Qty 13

0

4

Cub Cadet 721-0342

Gasket, Silicone
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

5

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 725-04036A

Meter, Indicator / Hour
(Superseded to 925-06170B)

Note: K017 & Before

$75.99

$

In Stock, Qty 9

0

6

Cub Cadet 725-04022B

Meter, Indicator / Hour
(Superseded to 925-04022B)

Note: K017 & After

$155.99

$

In Stock, only 2 left!

0

7

Cub Cadet 725-04175

Switch, PTO
(Superseded to 925-04175A)

$49.99

$

In Stock, only 2 left!

0

8

Cub Cadet 725-04227A

Switch, Key/Module
(Superseded to 925-06119C)

$123.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-0963

Lamp, Head Light
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-1648

Relay
(Superseded to 925-1648A)

$49.99

$

In Stock, only 1 left!

0

11

Cub Cadet 725-1649

Socket, Light, 1/4 Turn
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

12

Cub Cadet 925-1707D

Battery

$

$

Not available

13

Cub Cadet 725-2003

Receptacle, Power 12V

$45.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-2054

Key, Ignition
(Superseded to 925-2054A)

$18.99

$

In Stock, Qty 15

0

15

Cub Cadet 725-3164A

Switch, Interlock (Brake)
(Superseded to 925-3164A)

$42.99

$

In Stock, only 3 left!

0

16

Cub Cadet 725-3167

Switch, Snap Mount (Reverse)
(Superseded to 925-3167)

$15.99

$

In Stock, only 4 left!

0

17

Cub Cadet 725-3243

Fuse, 25 Amp

$5.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-04008

Fuse, 5 Amp

$

$

Not available

19

Cub Cadet 725-04040

Switch, Seat
(Superseded to 925-04040)

$38.99

$

In Stock, only 2 left!

0

20

Cub Cadet 726-0154

Tie, Pushmount
(Superseded to 926-0154)

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-3055

Clip, Cable

$7.49

$

In Stock, Qty 6

0

22

Cub Cadet 629-04142A

Harness, Head Light

$27.99

$

In Stock, only 2 left!

0
