GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Crankcase Parts Diagram

42" Garden Tractor

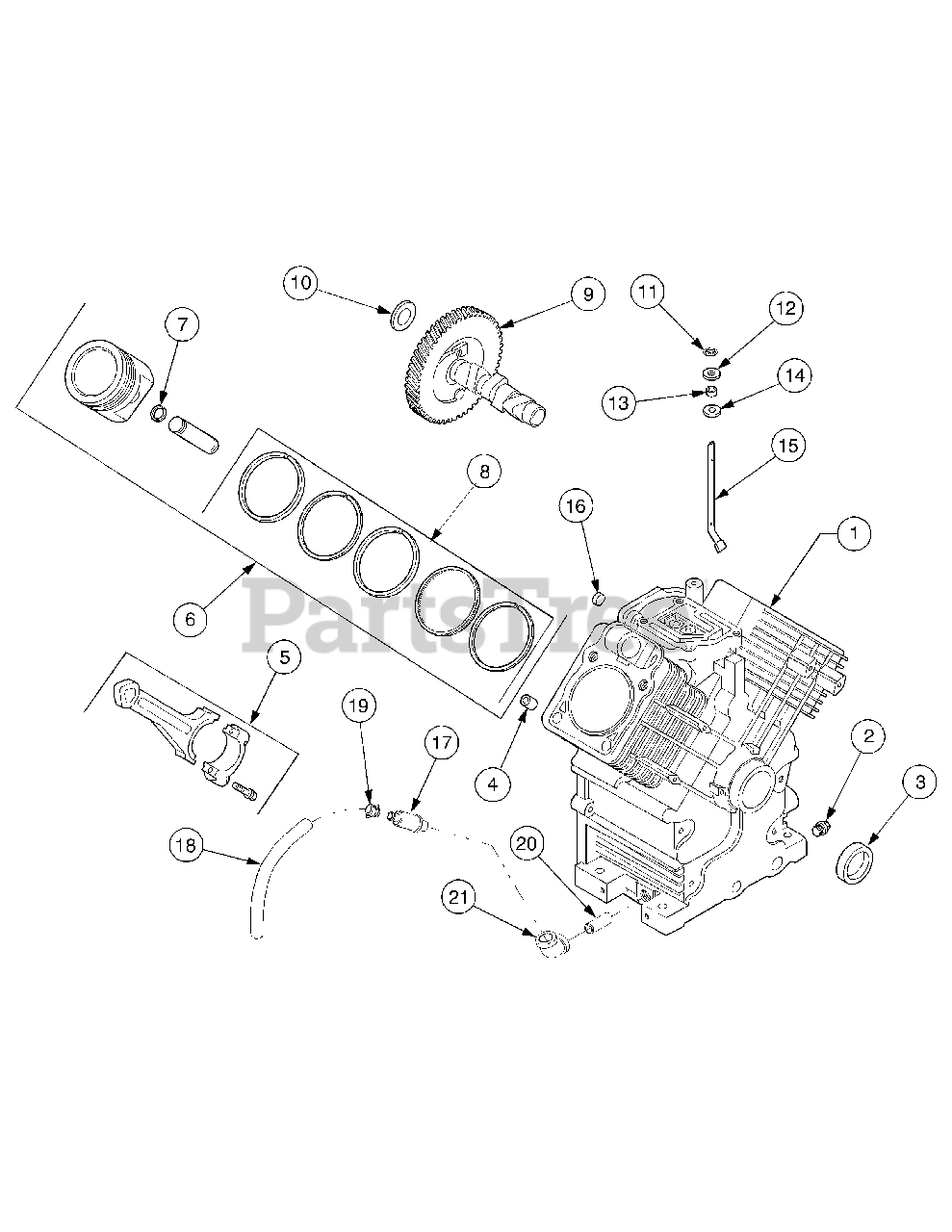

Crankcase Parts Diagram

  • Title

Cub Cadet KH-PA-64742

Complete Engine

Note: CH20S-64742

$

$

Not available

Cub Cadet KH-24-522-416

Short Block

Note: CH20S-64742

$1894.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-PA-64748

Complete Engine

Note: CH20S-64748

$

$

Not available

Cub Cadet KH-24-522-416

Short Block

Note: CH20S-64748

$1894.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-107-S

Gasket Set

Note: Not shown

$165.99

$

In Stock, only 2 left!

0

1

Cub Cadet N/A

Cylinder Block, (Use Miniblock)

$

$

Currently unavailable

1

Cub Cadet KH-24-782-15

Miniblock

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Plug, Hex Hd, 3/8

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-032-01

Seal, Front Oil
(Superseded to KH-24-032-19-S)

$8.99

$

In Stock, Qty 20+

0

4

Cub Cadet KH-24-380-13-S

Pin, Locating Dowel
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet KH-24-067-13

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

Note: CH20S-64742

$71.99

$

In Stock, Qty 10

0

5

Cub Cadet KH-24-067-14

Rod, Connection, .010 / .25mm

Note: CH20S-64742

$

$

Not available

5

Cub Cadet KH-24-067-20-S

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

Note: CH20S-64748

$71.99

$

In Stock, Qty 10

0

5

Cub Cadet KH-24-067-17-S

Rod, Connection, .010 / .25mm
(Superseded to KH-25-067-05-S)

Note: CH20S-64748

$71.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-17-S

Piston w/Ring Set, Std
(Superseded to KH-24-874-46-S)

$

$

Not available

6

Cub Cadet KH-24-874-14-S

Piston w/Ring Set, .08mm
(Superseded to KH-24-874-47-S)

$

$

Not available

6

Cub Cadet KH-24-874-18-S

Piston w/Ring Set, .010 / .25mm
(Superseded to KH-24-874-48-S)

$

$

Not available

6

Cub Cadet KH-24-874-19-S

Piston w/Ring Set, .020 / .50mm
(Superseded to KH-24-874-49-S)

$

$

Not available

7

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$3.49

$

In Stock, Qty 9

0

8

Cub Cadet KH-24-108-11-S

Ring Set, Std
(Superseded to KH-24-108-22-S)

Note: CH20S-64742

$

$

Not available

8

Cub Cadet KH-24-108-12-S

Ring Set, .010 / .25mm
(Superseded to KH-24-108-24-S)

Note: CH20S-64742

$

$

Not available

8

Cub Cadet KH-24-108-13-S

Ring Set, .020 / .50mm
(Superseded to KH-24-108-25-S)

$

$

Not available

8

Cub Cadet KH-24-108-22-S

Ring Set, Std

Note: CH20S-64748

$

$

Not available

8

Cub Cadet KH-24-108-24-S

Ring Set, .010 / .25mm

Note: CH20S-64748

$

$

Not available

9

Cub Cadet KH-24-012-10-S

Camshaft Assembly
(Superseded to KH-24-012-23-S)

$

$

Not available

10

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320 (Red)
(Superseded to KH-12-422-09-S)

Note: AR

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400 (Black)
(Superseded to KH-12-422-13-S)

Note: AR

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280 (White)
(Superseded to KH-12-422-07-S)

Note: AR

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300 (Blue)
(Superseded to KH-12-422-08-S)

Note: AR

$2.49

$

In Stock, only 1 left!

0

10

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340 (Yellow)
(Superseded to KH-12-422-10-S)

Note: AR

$2.49

$

In Stock, Qty 10

0

10

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360 (Green)
(Superseded to KH-12-422-11-S)

Note: AR

$2.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380 (Gray)
(Superseded to KH-12-422-12-S)

Note: AR

$2.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-018-09-S

Ring, Retainer

$2.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-M-931010-S

Washer, Nylon

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-468-15-S

Washer, Plain

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$49.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 4 left!

0

17

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 14

0

18

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$12.99

$

In Stock, Qty 20+

0

19

Cub Cadet 751-3142

Cap

$4.99

$

In Stock, Qty 8

0

20

Cub Cadet 737-0199

Pipe, Straight, 3/8 NPT x 2.0
(Superseded to 937-0199)

$

$

Not available

21

Cub Cadet 737-0272

Elbow, 90 Degree

$

$

Not available
