GT 2542 (14A-2D2G710) - Cub Cadet 42" Garden Tractor (2008 & Before) Engine Mounting and Muffler Mfg Date K016 & Before Parts Diagram

42" Garden Tractor

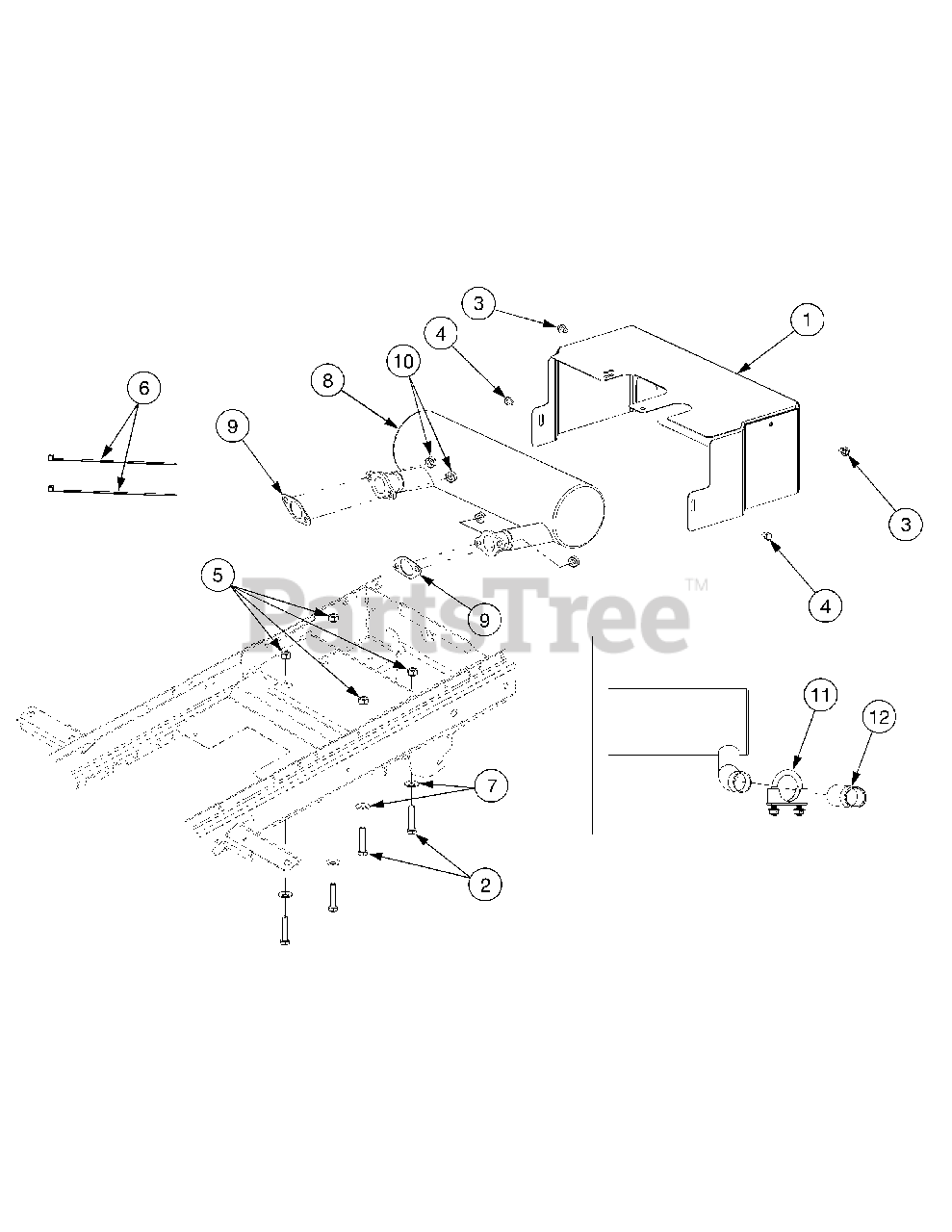

Engine Mounting and Muffler Mfg Date K016 & Before Parts Diagram

  • Title

1

Cub Cadet 703-05875

Shield, Heat
(Superseded to 703-05875A)

Note: Serial number 1A136G & Prior

$

$

Not available

1

Cub Cadet 703-05939

Muffler Extension Shield

Note: Serial number 1A136G & Prior

$64.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 703-05875A

Shield, Heat

Note: Serial number 1A136G & After

$

$

Not available

1

Cub Cadet 703-05947

Muffler Extension Shield

Note: Serial number 1A136G & After

$56.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 728-0177

Pop Rivets 3/16" x .450"

$5.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 736-0400

Flat Washer .194" x .62" x .063"

$5.99

$

In Stock, Qty 10

0

2

Cub Cadet 710-0539

Bolt, Eng Mount, 3/8-24 x 1.75 GR5

$4.99

$

In Stock, only 4 left!

0

3

Cub Cadet 710-0653

Screw, Hx Wsh Hd Tapp, 1/4-20 x .375

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-3209

Screw, Hex Cap, M6 x 1 x 10

$8.99

$

In Stock, Qty 9

0

5

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 14

0

6

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .062

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 751-10249

Muffler Assembly
(Superseded to 751-10249A)

$295.99

$

Usually ships in 3-6 days

0

9

Cub Cadet KH-24-041-02

Gasket, Exhaust
(Superseded to KH-24-041-49-S)

$3.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-M-0841080

Nut, Hex Flange
(Superseded to 712-3086)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 751-10191

Clamp, Muffler

$

$

Not available

12

Cub Cadet 751-10360

Pipe Extension, Exhaust

$

$

Not available
