GT 2544 (13A-2D7L710) - Cub Cadet 44" Garden Tractor (2004 & Before) Deck Assembly 44" Parts Diagram

44" Garden Tractor

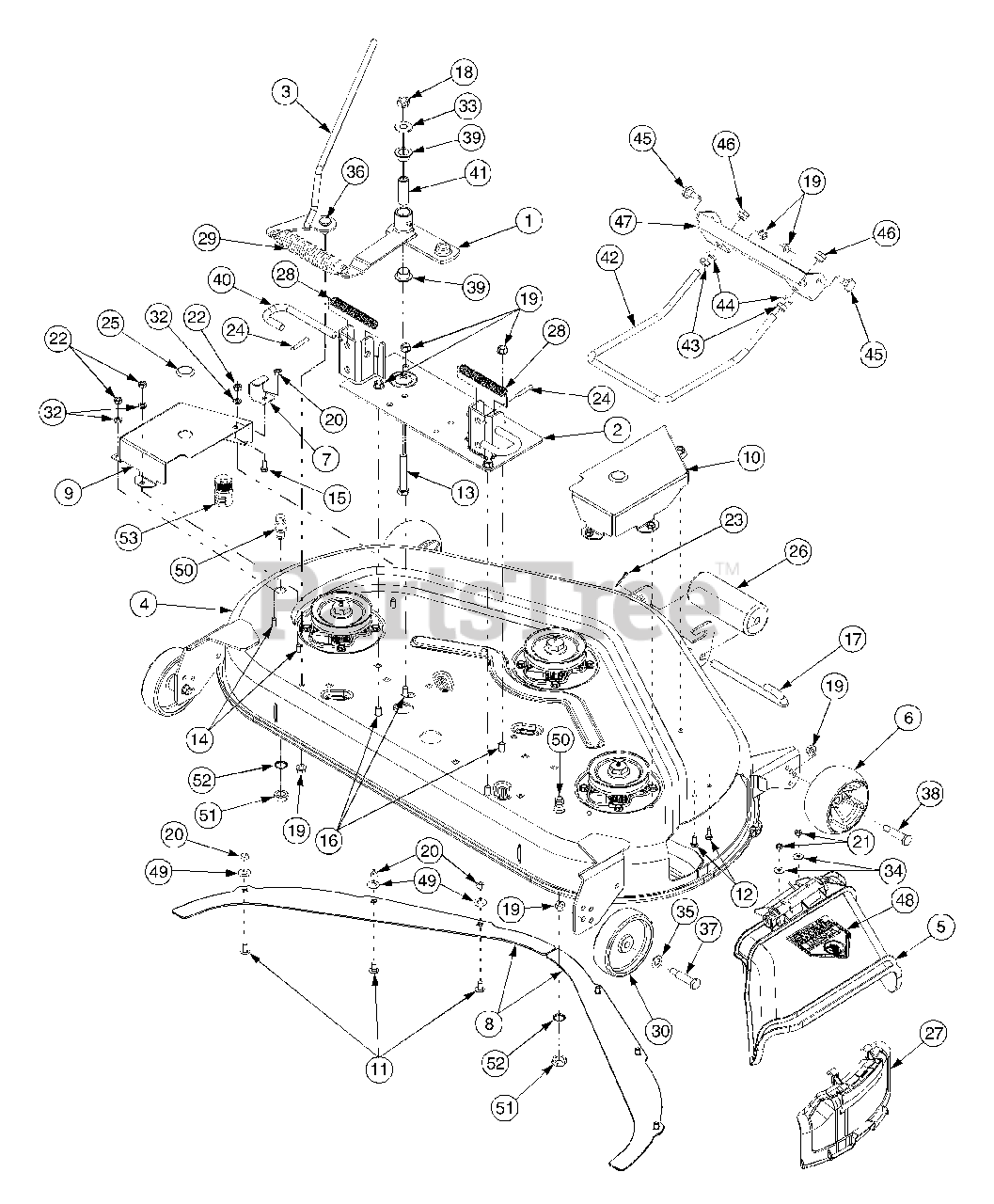

Deck Assembly 44" Parts Diagram

  • Title

1

Cub Cadet 603-0857

Idler Assembly
(Superseded to 903-0857)

$139.99

$

In Stock, Qty 6

0

2

Cub Cadet 603-0183A

Plate Assy, Mounting

Variations

Cub Cadet 603-0183A-0637

Mounting Plate Assembly - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0183A-0716

Mounting Plate Assembly - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 603-0183A-4021

PLATE ASM-MOUNTING - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

Cub Cadet 603-04113

Handle, Tension

Variations

Cub Cadet 603-04113-0637

HANDLE ASSY - POWDER BLACK (0637)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04113-0716

USE 603-04113-0637 HANDLE ASS - CUB YELLOW-99 (0716)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04113-4021

USE 603-04113-0637 HANDLE ASS - CUB YELLOW 2 (4021)

$75.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04269

Deck Housing Assembly
(Superseded to 903-04269A)

Variations

Cub Cadet 603-04269-0716

USE 903-04269A-0716 SHELL-44" - CUB YELLOW-99 (0716)

$

$

Not available

$921.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30014

Graphic, Warning

$10.99

$

In Stock, only 1 left!

0

Cub Cadet 777S30018

Graphic, Deck Safety

$9.49

$

In Stock, Qty 9

0

Cub Cadet 777S30503

Graphic, Deck Safety

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 777I20847

Graphic, Belt Routing

$

$

Not available

5

Cub Cadet 631-0094

Chute Assembly, Discharge
(Superseded to 631-0094B)

$83.99

$

In Stock, only 2 left!

0

6

Cub Cadet 634-04188

Wheel, Deck w/Fitting
(Superseded to 753-04856A)

$22.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-2559

Bracket, Stop

Variations

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$

$

Not available

$28.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-3359

Baffle, Skirt

Variations

Cub Cadet 703-3359-0716

Skirt Baffle - CUB YELLOW-99 (0716)

$47.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3359-0637

Skirt Baffle - POWDER BLACK (0637)

$47.99

$

In Stock, only 2 left!

0

$38.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3742

Belt Cover, LH

Variations

Cub Cadet 703-3742-0637

COVER-BELT LH - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3742-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3742-0716

Belt Cover, LH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-3742-0650

COVER-BELT LH - RED METALLIC (0650)

$

$

Not available

$53.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-3743

Belt Cover, RH

Variations

Cub Cadet 703-3743-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-3743-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-3743-4021

COVER-BELT RH - CUB YELLOW 2 (4021)

$

$

Not available

$64.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0260A

Bolt, Carriage, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1010

Screw, Hex Cap, 1/2-20 x 3.0

$

$

Not available

14

Cub Cadet 710-1611B

Screw, Self Tap, 5/16-18 x .75

$7.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20

$6.49

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0431

Nut, Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 12

0

22

Cub Cadet 712-3010

Nut, Hex, 5/16-18, GR5

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0115

Pin, Cotter, 1/8 Dia x 1

$4.49

$

In Stock, only 1 left!

0

24

Cub Cadet 715-3003

Pin, Spiral Spring, 3/16 Dia x .75

$7.49

$

In Stock, Qty 5

0

25

Cub Cadet 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 15

0

26

Cub Cadet 731-3005

Front Roller

$30.99

$

In Stock, Qty 20+

0

27

Cub Cadet 731-3316

Plug, Mulch

$32.99

$

In Stock, Qty 10

0

28

Cub Cadet 732-3127

Spring, Comp, .66 OD x 1.8
(Superseded to 932-3127)

$4.99

$

In Stock, Qty 15

0

29

Cub Cadet 732-0861

Spring, Ext, .162 Dia x 1.25 OD

$32.99

$

In Stock, Qty 10

0

30

Cub Cadet 734-0973

Wheel, Deck, 5.0 x 1.38
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0179

Washer, Flat, 1/2 x 1.25 x .10

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0272

Washer, Flat, .510 x 1 x .060

$5.49

$

In Stock, Qty 20+

0

36

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0533

Screw, Shoulder, .498 x 1.635

$8.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 738-0373

Bolt, Shoulder
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0338

Bearing, Flange, 3/4 ID x .52 LG

$9.99

$

In Stock, Qty 20+

0

40

Cub Cadet 747-3188

Pin, Mower Support

$36.99

$

In Stock, Qty 6

0

41

Cub Cadet 750-3136

Spacer, .5 OD x .75 x 2.07 Lg
(Superseded to 950-3136)

$

$

Not available

42

Cub Cadet 747-3172B

Rod, Front Lift
(Superseded to 747-3172C)

$76.99

$

In Stock, Qty 8

0

43

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.99

$

In Stock, Qty 17

0

45

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia. x .494 Lg

$4.99

$

In Stock, Qty 14

0

46

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 703-2248

Bracket, Front Lift

Variations

Cub Cadet 703-2248-0637

Front Lift Bracket - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 5

0

Cub Cadet 703-2248-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$50.99

$

In Stock, Qty 5

0

$40.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 777S30284

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0226

Washer, Flat, .474 x .88 x .064
(Superseded to 936-0226)

$4.49

$

In Stock, only 2 left!

0

50

Cub Cadet 737-04003B

Nozzle, Deck Wash
(Superseded to 737-04003D)

$24.99

$

In Stock, Qty 10

0

51

Cub Cadet 712-0641

Nut, Hex M16-1.5

$6.49

$

In Stock, Qty 9

0

52

Cub Cadet 736-0760

Washer, Lock

$4.49

$

In Stock, Qty 7

0

53

Cub Cadet 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$24.99

$

In Stock, Qty 20+

0
