GT 2550 (13A-2C7P710) - Cub Cadet 50" Garden Tractor (2004 & Before) Grille, Hood And Side Panels Parts Diagram

50" Garden Tractor

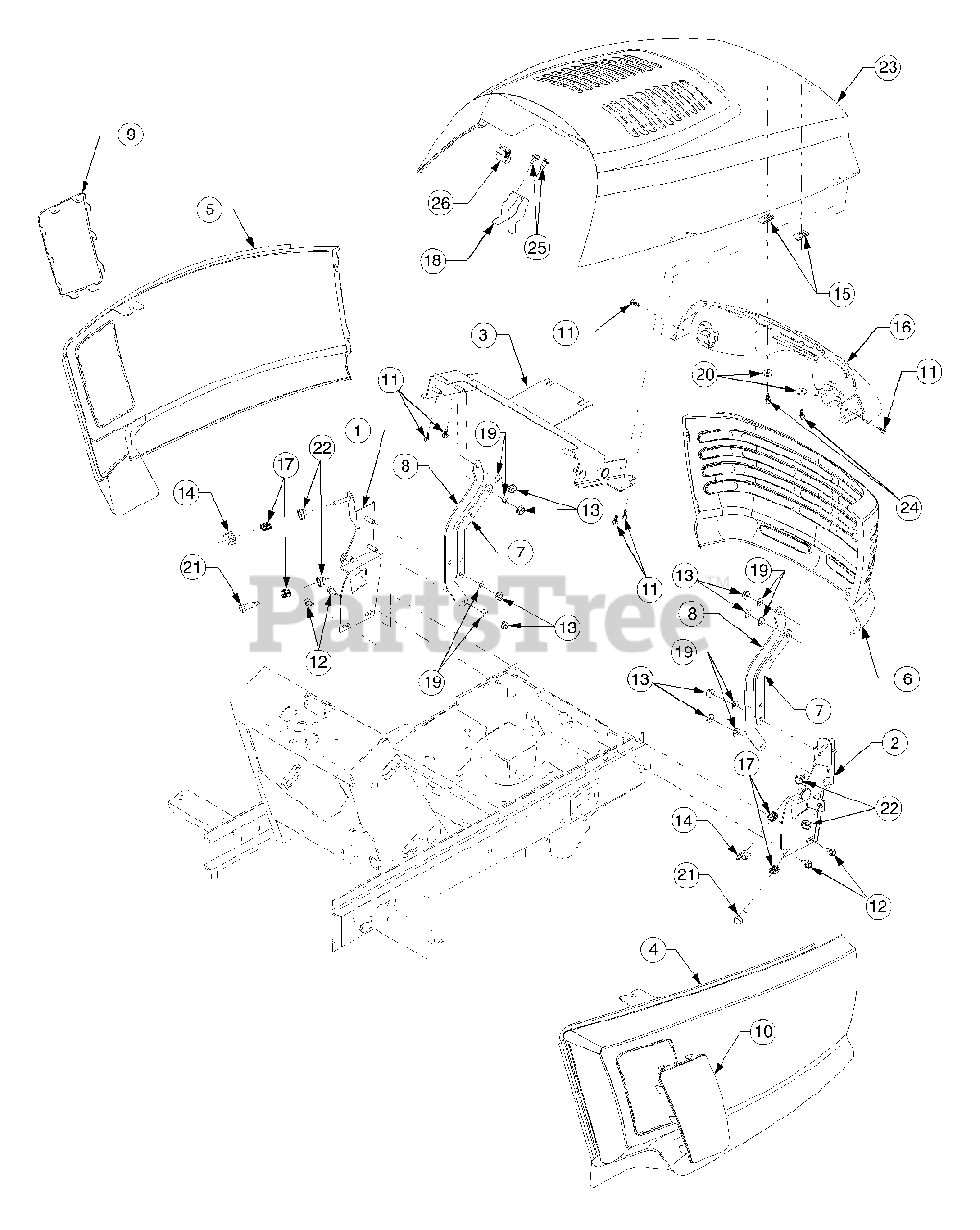

Grille, Hood And Side Panels Parts Diagram

  • Title

1

Cub Cadet 603-0211

Bracket, Grille LH

$

$

Not available

2

Cub Cadet 603-0212

Bracket, Grille RH
(Superseded to 603-0212A)

$

$

Not available

3

Cub Cadet 603-04191

Bracket, Upper Hood
(Superseded to 603-04191-0499)

Variations

Cub Cadet 603-04191-0499

Hood Bracket Assembly - CUB BEIGE (0499)

$

$

Not available

$

$

4

Cub Cadet 703-2396

Panel, RH Side
(Superseded to 703-2396-0499)

Variations

Cub Cadet 703-2396-0499

Side Panel R/H - CUB BEIGE (0499)

$260.99

$

Usually ships in 3-6 days

0

$260.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D08640

Graphic, GT 2550
(Superseded to 977D08640)

$

$

Not available

Cub Cadet 777X40079

Strip, Protective

$

$

Not available

5

Cub Cadet 703-2397

Panel, LH Side
(Superseded to 703-2397-0499)

Variations

Cub Cadet 703-2397-0499

SIDE PANEL L/H - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet 777D08640

Graphic, GT 2550
(Superseded to 977D08640)

$

$

Not available

Cub Cadet 777X40079

Strip, Protective

$

$

Not available

6

Cub Cadet 703-2398

Grille
(Superseded to 703-2398-0499)

Variations

Cub Cadet 703-2398-0499

Grille - CUB BEIGE (0499)

$159.99

$

Usually ships in 3-6 days

0

$159.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20314

Graphic, Warning HOT

$

$

Not available

7

Cub Cadet 703-2465

Link, Short Hood

Variations

Cub Cadet 703-2465-0637

Hood Link - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2466A

Link, Long Hood
(Superseded to 703-2466B)

$

$

Not available

9

Cub Cadet 703-2495

Screen, LH Panel

Variations

Cub Cadet 703-2495-0499

SCREEN (LH) PANEL - CUB BEIGE (0499)

$

$

Not available

$

$

10

Cub Cadet 703-2496

Screen, RH Panel
(Superseded to 703-2496-0499)

Variations

Cub Cadet 703-2496-0499

PANEL SCREEN (RH) - CUB BEIGE (0499)

$

$

Not available

$

$

11

Cub Cadet 710-0351

Screw, Truss Mach Tapp, #10 x 50

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4 x 50

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0397

Nut, Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 726-0139

Nut, U-Type Speed, #10

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet 625-04001A

Headlight Assy
(Superseded to 925-04001A)

Note: (Includes Lamp and Socket)

$147.99

$

In Stock, Qty 19

0

Cub Cadet 725-0963

Lamp, 12V
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

Cub Cadet 777X41348

Reflector, Headlight
(Superseded to 977X41348)

$

$

Not available

17

Cub Cadet 732-0334

Spring, Compression, .50 OD x .50

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 732-1178

Spring, Hood Latch

$26.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0175

Washer, Spring, .265 x .562 x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

20

Cub Cadet 736-0400

Washer, Flat, .218 x .62 x .063

$4.99

$

In Stock, Qty 16

0

21

Cub Cadet 738-3141

Bolt, Shoulder, .31 Dia x .75 Lg

$4.99

$

In Stock, only 3 left!

0

22

Cub Cadet 748-3055

Bushing, Tapered
(Superseded to 948-3055)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 759-3747B

Hood, Series 2000

$

$

Not available

Cub Cadet 777D08229

Graphic, Hood - RH

$

$

Not available

Cub Cadet 777D08230

Graphic, Hood - LH

$

$

Not available

24

Cub Cadet 710-0436

Screw, Hex Tapp, 10-16 x .625
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-1005

Screw, Hex Wash Hd Tapp, 1/4-14 x .5
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 723-3061-19

Seal, Heat Baffle
(Superseded to 723-3059)

$19.99

$

Usually ships in 3-6 days

0
