GT 2550 (13A-2C7P710) - Cub Cadet 50" Garden Tractor (2004 & Before) Seat And Support Parts Diagram

50" Garden Tractor

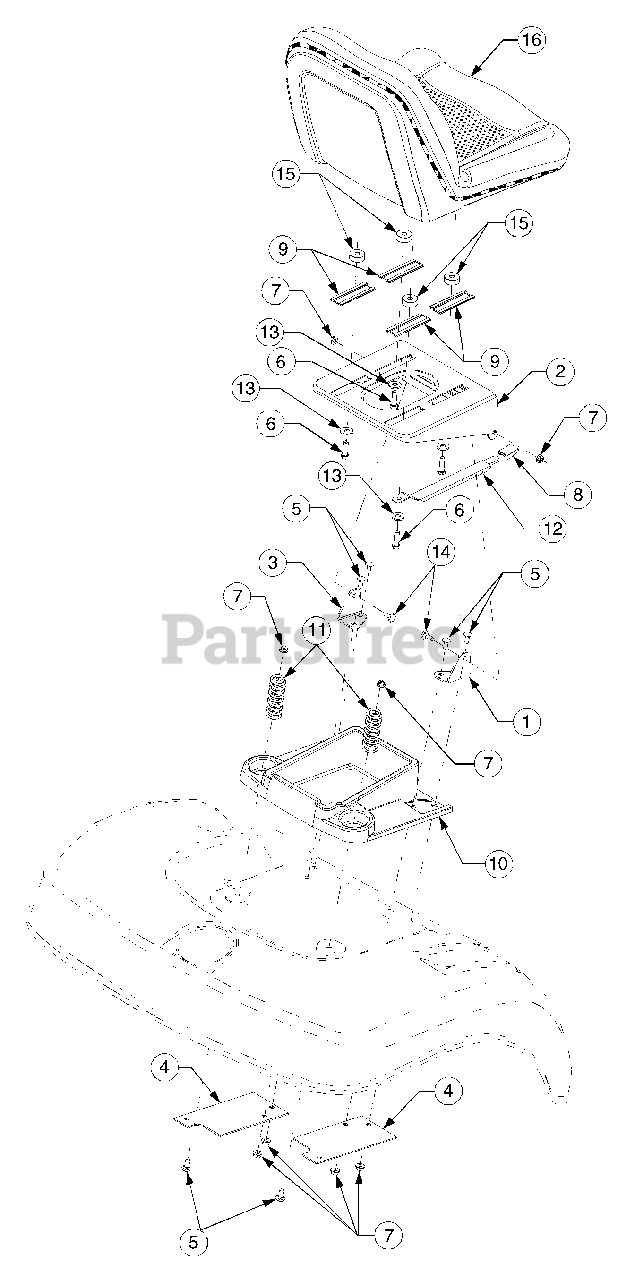

Seat And Support Parts Diagram

  • Title

1

Cub Cadet 703-05576

Bracket, RH Seat Pivot

Variations

Cub Cadet 703-05576-0716

BRACKET-RH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 703-2395B

Seat, Base

Variations

Cub Cadet 703-2395B-0716

BASE-SEAT - CUB YELLOW-99 (0716)

$120.99

$

Usually ships in 3-6 days

0

$112.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20310

Graphic, Seat Adjuster

$

$

Not available

3

Cub Cadet 703-05555

Bracket, LH Seat Pivot

Variations

Cub Cadet 703-05555-0716

BRACKET-LH PIVOT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 703-2628

Bracket, Fender Reinforcement

Variations

Cub Cadet 703-2628-0498

Fender Reinforcement Plate - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2628-0716

Fender Reinforcement Plate - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2628-4015

Fender Reinforcement Plate, Fire Red - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-2628-4021

PLATE-FNDR REINFOR - CUB YELLOW 2 (4021)

$

$

Not available

$

$

5

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3120

Screw, Hx Cap Lock, 3/8-16 x 1.5 GR5

$3.99

$

In Stock, Qty 14

0

7

Cub Cadet 712-04054

Nut, Hex Flange Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-0426

Knob, Seat Adjuster
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

9

Cub Cadet 731-3154

Slide, Seat

$

$

Not available

10

Cub Cadet 731-3162

Tray, Tool
(Superseded to 931-3162)

$

$

Not available

11

Cub Cadet 732-04251

Spring, Comp, 1.28 OD x 4.5

$20.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 732-04100

Index Spring, Seat Adjuster
(Superseded to 932-04100)

$

$

Not available

13

Cub Cadet 736-3052

Washer, Flat, .406 x 1.0 x .105

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0140

Bolt, Shoulder

$5.49

$

In Stock, Qty 17

0

15

Cub Cadet 738-04013A

Spacer, Seat Slide Shoulder
(Superseded to 938-04013A)

$

$

Not available

16

Cub Cadet 757-04030

Seat, High Back
(Superseded to 757-04030A)

$

$

Not available

Cub Cadet 777D06883

Graphic, Seat Back

$16.99

$

In Stock, only 2 left!

0

Cub Cadet 777D01782

Graphic, Made in USA

$

$

Not available
