GT 2550 (14A-2E7P010) - Cub Cadet 50" Garden Tractor (2009 & After) Implement Lift Links Parts Diagram

50" Garden Tractor

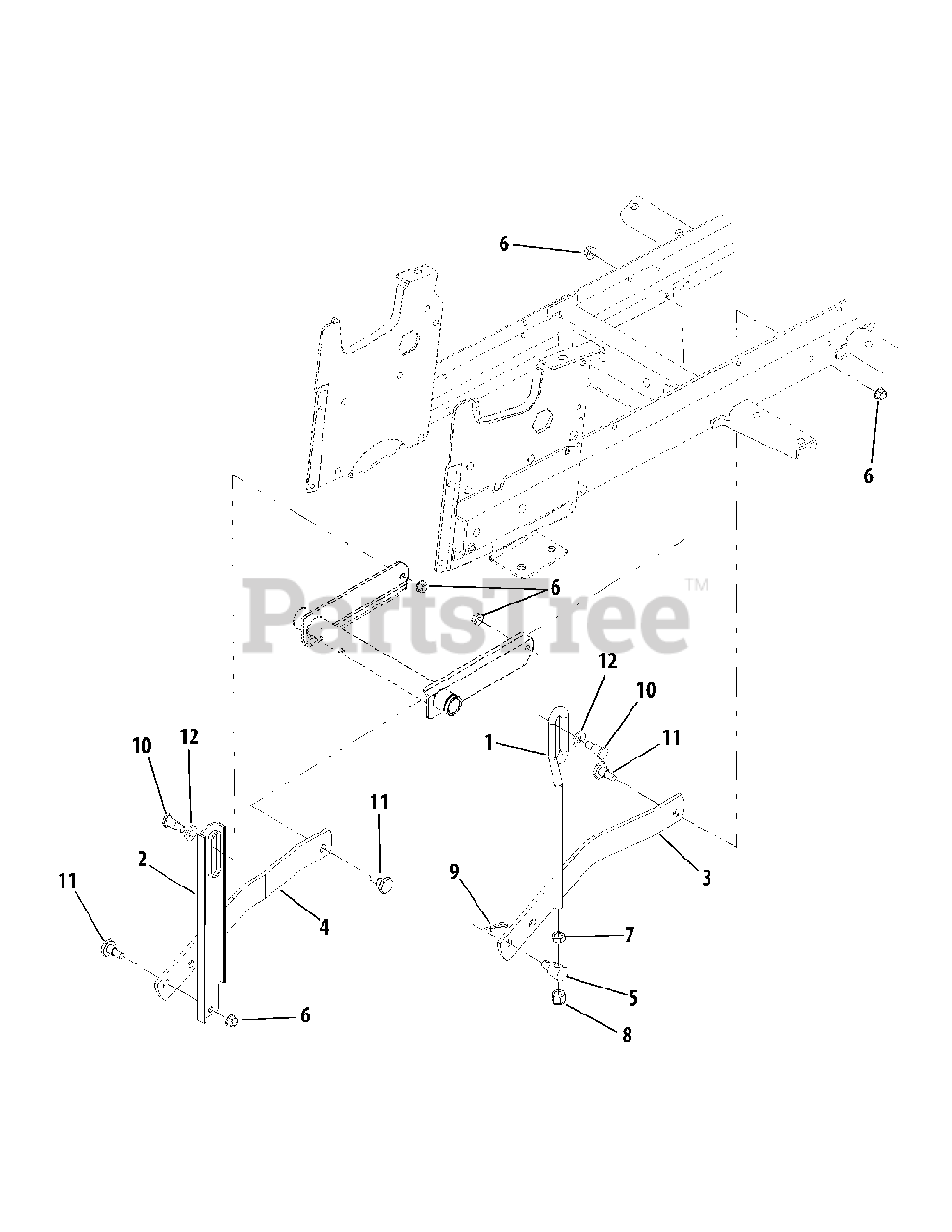

Implement Lift Links Parts Diagram

  • Title

1

Cub Cadet 747-04196

Rod, Lift Link

$

$

Not available

2

Cub Cadet 703-2234

Bracket, LH Hanger

Variations

703-2234-4021

Cub Cadet 703-2234-4021

BRACKET ASSY - CUB YELLOW 2 (4021)

$

$

Not available

$

$

3

Cub Cadet 703-2832-0637

Link, RH Lift

$

$

Not available

4

Cub Cadet 703-2833-0637

Link, LH Lift

$

$

Not available

5

Cub Cadet 911-3319

Ferrule, Adjustment

$

$

Not available

6

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$4.49

$

In Stock, Qty 13

0

7

Cub Cadet 912-3048

Nut, Hex Jam, 1/2-13 GR5
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 914-0145

Pin, Internal Cotter
(Superseded to 714-0145)

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 738-0430

Bolt, Shoulder

$12.99

$

In Stock, only 2 left!

0

11

Cub Cadet 938-0507B

Bolt, Shoulder
(Superseded to 738-0507B)

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 936-0326

Washer, Flat, .51 x 1.0 x .125
(Superseded to 736-0326)

$4.99

$

In Stock, Qty 5

0
