GT 2550 (14A-2E7P010) - Cub Cadet 50" Garden Tractor (2009 & After) Steering Parts Diagram

50" Garden Tractor

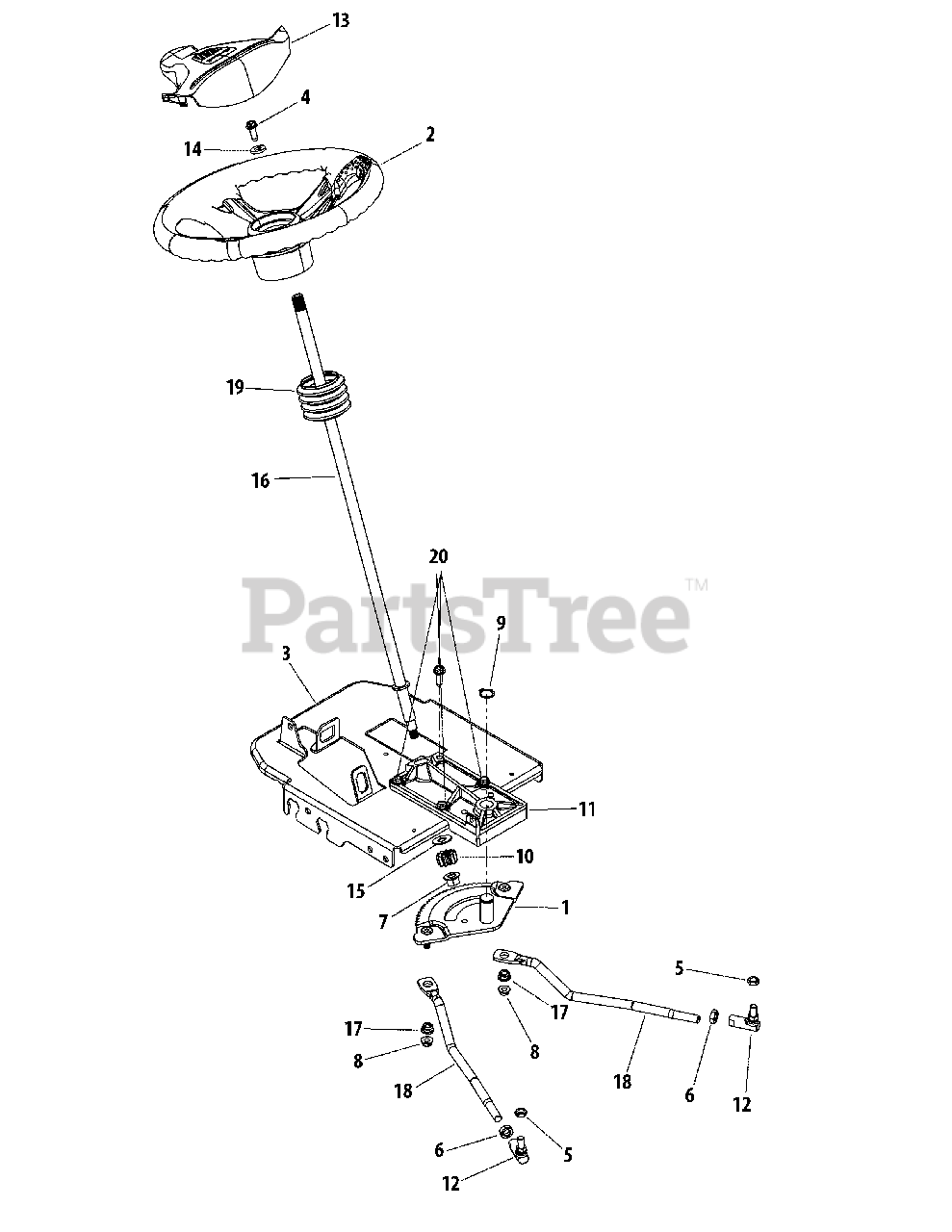

Steering Parts Diagram

  • Title

1

Cub Cadet 617-04034

Gear Assy, Segment
(Superseded to 917-04034)

$

$

Not available

2

Cub Cadet 631-04008A

Wheel, Steering, Soft Grip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 11

0

3

Cub Cadet 703-05830-0637

Bracket, Steering Support

$

$

Not available

4

Cub Cadet 710-0650

Screw, Hx. Wash. Hd Tapp, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0262

Nut, Hex Jam Lock, 3/8-24 Gr2

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 912-0240

Nut, Hex Jam, 7/16-20 GR2

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0459

Nut, Flange Lock 7/16-20 GrB

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 916-0101

Ring, Snap, .75 Dia Shaft
(Superseded to 716-0101)

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 717-1554

Gear, Steering Pinion

$10.99

$

In Stock, Qty 20+

0

11

Cub Cadet 919-04200A

Housing Assy, Steering
(Superseded to 919-04200B)

$143.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 937-3000

Fitting, Grease, 3/16 Drive Type

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 923-0448A

Joint, Ball, 3/8-24

$22.99

$

In Stock, Qty 20+

0

13

Cub Cadet 731-04532B

Cover, Steering Wheel

$22.99

$

In Stock, Qty 14

0

14

Cub Cadet 936-3004

Washer, Flat, .406 x .875 x .105 Thk
(Superseded to 736-3004)

$

$

Not available

15

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .03 Thk

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 738-04202

Shaft, Steering, .625 x 27.10
(Superseded to 938-04202A)

$79.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 941-0475

Plastic Bushing, .38 ID

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 747-04455

Link, Drag

$48.99

$

In Stock, only 1 left!

0

19

Cub Cadet 931-05524

Bellow, Steering, 2.12 Lg

$

$

Not available

20

Cub Cadet 710-0602

Screw, Hx. Wash. Hd Tapp, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0
