GT 2550 (14A-2E7P710) - Cub Cadet 50" Garden Tractor (2005 - 2008) Hydrostatic Pump Parts Diagram

50" Garden Tractor

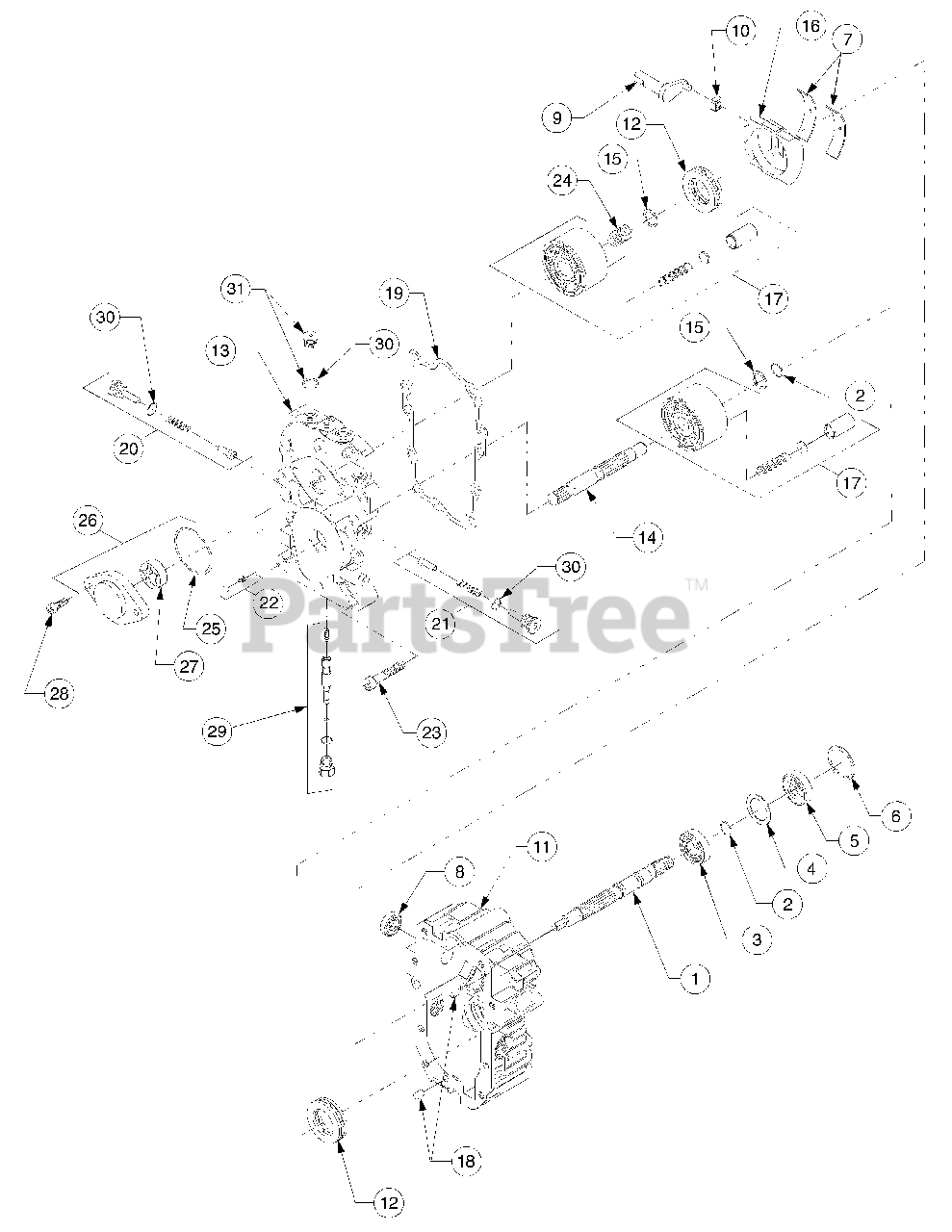

Hydrostatic Pump Parts Diagram

  • Title

1

Cub Cadet HG-50158

Shaft, Pump (Splined)

$156.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-2003016

Ring, Retaining

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-2003043

Bearing, Ball
(Superseded to HG-2003043P)

$68.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-2003018

Spacer

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-9008000-0128

Seal, Lip

$17.99

$

In Stock, only 3 left!

0

6

Cub Cadet HG-2003052

Ring, Retaining

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2003023

Bearing, Cradle
(Superseded to HG-52619)

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-9008000-0126

Seal, Lip

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-2003005

Arm, Trunnion

$200.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2000015

Guide, Slot

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-2513036

Housing Kit

$258.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50551P

Bearing Assembly, Thrust Ball

$27.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-70444

Center Section Kit

$503.99

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2003034

Shaft, Motor

$314.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-2003017

Washer, Block Thrust

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-2003087

Swash Plate

$204.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-70331

Block Assembly

$175.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HG-9004800-2506

Pin

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-2003060

Gasket, Center Section

$9.99

$

Usually ships in 3-6 days

0

20

Cub Cadet HG-2510027

Kit, Check Valve

$60.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-2510034

Kit, Orificed Check Valve

$45.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-2510011

Kit, Charge Relief Valve

$11.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-9007314-0808

Screw, Socket Hd

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-2003014

Spring, Block

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet HG-9004101-1340

O-Ring

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-2513027

Kit, Charge Pump

$175.99

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-50273

Gerotor Assy

$33.99

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-50095

Screw, Socket Hd

$

$

Not available

29

Cub Cadet HG-2153011

Bypass Valve Kit
(Superseded to HG-2513011)

$159.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-9004201-3700

O-Ring

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-9005110-5600

Plug w/O-Ring

$18.99

$

Usually ships in 3-6 days

0
