GT-2550 (14AZ816P190) - White Outdoor 50" Garden Tractor (2000) 50" Cutting Deck Parts Diagram

50" Garden Tractor

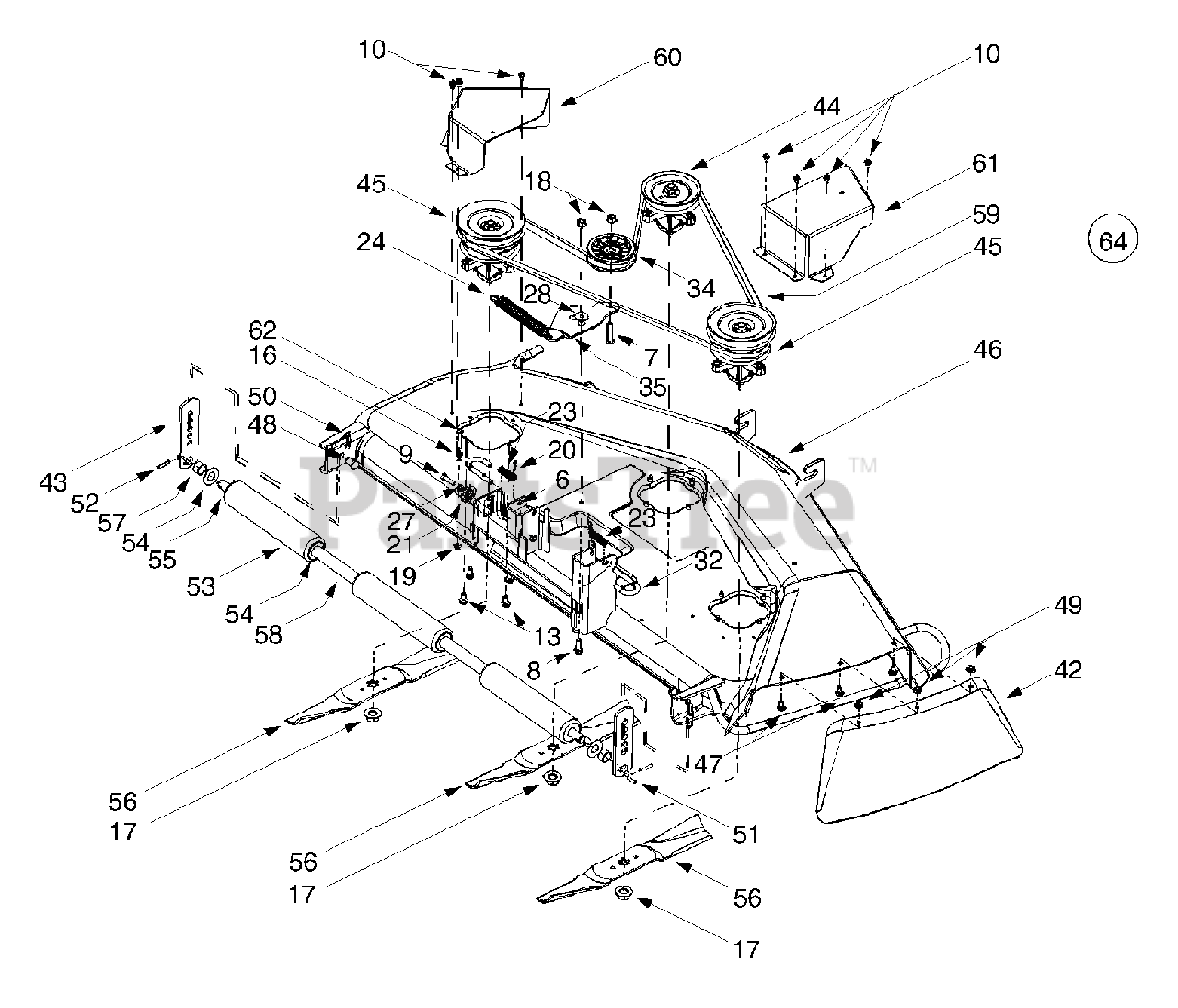

50" Cutting Deck Parts Diagram

  • Title

6

White Outdoor 710-0167

Carriage Screw, 1/4-20 x .5
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0599

Self Tapping Screw,1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0291

Center Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 9

0

17

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 714-0104

Internal Cotter Pin, .072 x 1.12

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

23

White Outdoor 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-0594A

Extension Spring, .91 x 7.33
(Superseded to 932-0594A)

$13.99

$

In Stock, Qty 20+

0

27

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 738-0347

Shoulder Spacer, .625 x .169
(Superseded to 938-0347)

$9.49

$

In Stock, Qty 14

0

32

White Outdoor 747-1116

Deck Release Pin

$11.99

$

In Stock, Qty 20+

0

34

White Outdoor 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

35

White Outdoor 783-0139

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

White Outdoor 783-0139-0637

Idler Bracket, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

42

White Outdoor 12649

Chute Guard
(Superseded to 12649-0637)

Variations

White Outdoor 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$156.99

$

Usually ships in 3-6 days

0

White Outdoor 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$156.99

$

Usually ships in 3-6 days

0

White Outdoor 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

White Outdoor 12649-0650

GUARD-CHUTE - RED METALLIC (0650)

$

$

Not available

White Outdoor 12649-0662

GUARD-CHUTE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 12649-0665

No Longer Available GUARD-CHUTE - YARDMAN GREEN (0665)

$

$

Not available

$156.99

$

Usually ships in 3-6 days

0

43

White Outdoor 12650

Height Adjustment Bracket

Variations

White Outdoor 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$40.99

$

In Stock, Qty 6

0

White Outdoor 12650-4008

Height Adjuster - WINE RED (4008)

$40.99

$

In Stock, Qty 6

0

$32.99

$

Usually ships in 3-6 days

0

44

White Outdoor 618-0428

Center Spindle Ass'y, 5 Dia. w/ Fitting
(Superseded to 918-0428B)

$

$

Not available

45

White Outdoor 618-0429

Double Pulley Spindle Ass'y w/ Fitting
(Superseded to 918-0429A)

$246.99

$

Usually ships in 3-6 days

0

46

White Outdoor 683-0196

50-inch Deck Shell

Variations

White Outdoor 683-0196-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-0196-0637

No Longer Available DECK ASSEMB - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0196-0650

DECK ASSEMBLY - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0196-0665

No Longer Available DECK ASSEMB - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0196-0667

No Longer Available DECK ASSEMB - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

47

White Outdoor 710-0260

Carriage Bolt, 5/16-18 x .62
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 711-0332

Clevis Pin, .50 Dia. x .78
(Superseded to 911-0332)

$14.99

$

In Stock, Qty 20+

0

49

White Outdoor 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

50

White Outdoor 714-0145

Click Pin, .092 x 1.64

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 715-0108

Spring Pin, 1/4 Dia. x 1

$4.99

$

In Stock, Qty 20+

0

52

White Outdoor 715-0246

Spring Pin, 3/16 x 1.25
(Superseded to 915-0246)

$6.49

$

In Stock, Qty 9

0

53

White Outdoor 731-0335

Deck Roller

$67.99

$

In Stock, Qty 11

0

54

White Outdoor 736-0316

Flat Washer, .78 x 1.59 x .06

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 738-0295

Deck Roller Shaft, .75 Dia. x 47.12

$115.99

$

In Stock, only 2 left!

0

56

White Outdoor 742-0623

Blade, Star Center, 17.3
(Superseded to 942-0623)

$30.99

$

In Stock, only 3 left!

0

57

White Outdoor 750-0212

Spacer, .752 x 1.0 x .53

$9.99

$

In Stock, Qty 20+

0

58

White Outdoor 750-0288

Spacer, .82 x 1.0 x 5.75

Variations

White Outdoor 750-0288-0637

SPACER-TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

59

White Outdoor 754-0291A

Deck Belt
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

60

White Outdoor 783-0746

Belt Cover, L.H.

Variations

White Outdoor 783-0746-0637

COVER-BELT LH 50" - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0746-0665

COVER-BELT LH 50" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0746-0606

COVER-BELT LH 50" - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0746-0650

COVER-BELT LH 50" - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0746-0667

COVER-BELT LH 50" - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

61

White Outdoor 783-0793

Belt Cover, R.H.

Variations

White Outdoor 783-0793-0637

COVER-PULLEY RH 50 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0793-0606

COVER-PULLEY RH 50 - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0793-0650

COVER-PULLEY RH 50 - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0793-0665

COVER-PULLEY RH 50 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0793-0667

COVER-PULLEY RH 50 - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

62

White Outdoor 710-3288

Hex Cap Screw, 1/4-20 x 1.62

$6.49

$

In Stock, Qty 15

0

64

White Outdoor 753-0877

50-inch Deck Assembly Complete

Variations

White Outdoor 753-0877-0606

No Longer Available KIT-DECK ASM COMP5 - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 753-0877-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 753-0877-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 753-0877-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$
