GT-2550 H (14A9816K790) - White Outdoor 54" Garden Tractor (2004) Hood And Fuel Tank Parts Diagram

54" Garden Tractor

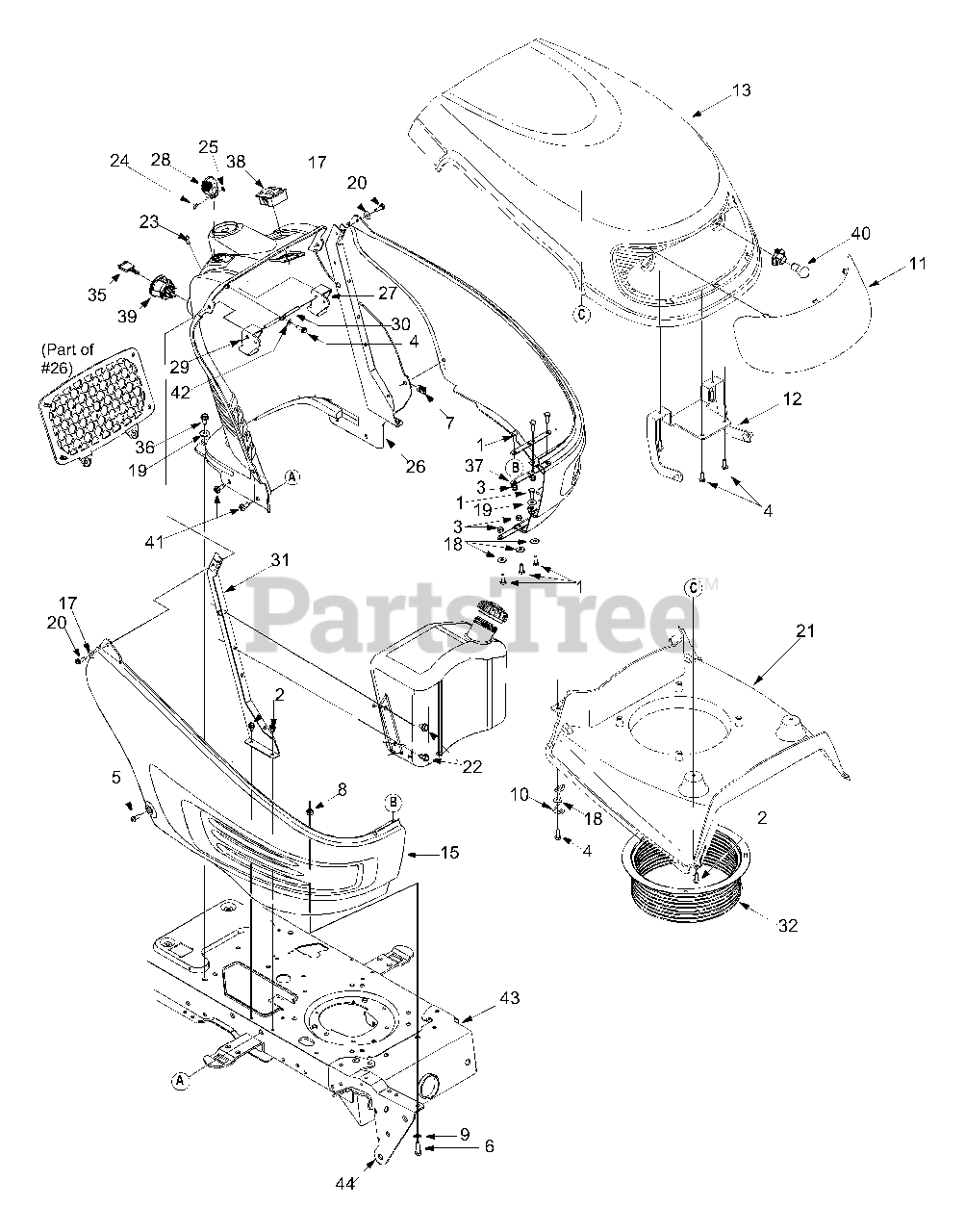

Hood And Fuel Tank Parts Diagram

  • Title

1

White Outdoor 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x .75

$5.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 18

0

7

White Outdoor 712-0292

U-type Speed Nut, 1/4-20

$9.99

$

Usually ships in 3-6 days

0

8

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

9

White Outdoor 726-0201

Speed Nut

$6.49

$

In Stock, Qty 20+

0

10

White Outdoor 747-2127

Hood Latch Rod

$11.99

$

Usually ships in 3-6 days

0

11

White Outdoor 731-2286

Head Light Lens
(Superseded to 931-2286)

$

$

Not available

12

White Outdoor 683-0305

Hood Bracket Assembly
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 731-2283A

Hood
(Superseded to 931-2283A)

$

$

Not available

14

White Outdoor 731-2327A

LH Side Panel
(Superseded to 931-2327C)

$

$

Not available

15

White Outdoor 731-2328A

RH Side Panel
(Superseded to 931-2328C)

$

$

Not available

16

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

17

White Outdoor 736-0342

Flat Washer, .283 x .75 x .030

$6.99

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0173

Flat Washer, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

20

White Outdoor 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

21

White Outdoor 731-2284

Hood Plenum

$63.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-3217

Torx Screw, #8-32 x .375

$6.49

$

In Stock, Qty 10

0

25

White Outdoor 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 12

0

26

White Outdoor 731-0071E

Dash Panel, 4-style

$

$

Not available

White Outdoor 735-04023

Cargo Net

$

$

Not available

White Outdoor 726-04029

Clips

$3.99

$

Usually ships in 3-6 days

0

27

White Outdoor 731-0072

Parking Brake Button

$

$

Not available

28

White Outdoor 731-1857

Throttle Control Lever

$13.99

$

In Stock, only 4 left!

0

White Outdoor 746-1086

Throttle Cable
(Superseded to 946-1086)

$31.99

$

In Stock, Qty 7

0

White Outdoor 746-1085A

Choke Control
(Superseded to 946-1085A)

Note: (Not Shown)

$28.99

$

In Stock, Qty 14

0

29

White Outdoor 731-2106

Cruise Control Button

$

$

Not available

30

White Outdoor 747-1155

Brake/Cruise Pivot Rod

$12.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-04285

Dash Support Tube RH
(Superseded to 783-04285F-0637)

Variations

White Outdoor 783-04285-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 783-04323

Dash Support Tube LH
(Superseded to 783-04323F-0637)

Variations

White Outdoor 783-04323-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

32

White Outdoor 731-2234

Intake Bellow
(Superseded to 731-2234A)

$29.99

$

Usually ships in 3-6 days

0

33

White Outdoor 751-0658E

Fuel Tank, 3 Gallon

$107.99

$

In Stock, Qty 5

0

34

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

35

White Outdoor 725-1745

Ignition Key w/ Plastic Cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

White Outdoor 725-1744

Ignition Key
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

36

White Outdoor 710-0726

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 783-1000A

Grille Support Bracket

Variations

White Outdoor 783-1000A-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 725-04036

Systems Indicator Monitor
(Superseded to 925-06170B)

$65.99

$

In Stock, only 1 left!

0

39

White Outdoor 725-1741

Ignition Switch
(Superseded to 925-1741)

$41.99

$

In Stock, Qty 20+

0

40

White Outdoor 625-0051

Headlight Assembly
(Superseded to 925-0051)

$15.99

$

In Stock, only 2 left!

0

41

White Outdoor 710-1611B

Self-tapping Screw, 5/16-18 x .75

$6.49

$

In Stock, only 2 left!

0

42

White Outdoor 746-1085

Choke Control
(Superseded to 946-1085A)

$28.99

$

In Stock, Qty 14

0

43

White Outdoor 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

44

White Outdoor 783-0726B

Pivot Bracket Support RH
(Superseded to 783-0726E)

Variations

White Outdoor 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0726B-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726B-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726B-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 783-0726B-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

White Outdoor 783-0727A

Pivot Bracket Support LH
(Superseded to 783-0727B)

Variations

White Outdoor 783-0727A-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727A-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727A-0637

USE 783-0727C BRKT:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727A-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 629-1067

Tractor Wire Harness

$347.99

$

Usually ships in 3-6 days

0
