GT 255400 (2690630) - Snapper 54" Garden Tractor, 23hp Lift Group - Hydraulic Lift with Power Steering Parts Diagram

54" Garden Tractor, 23hp

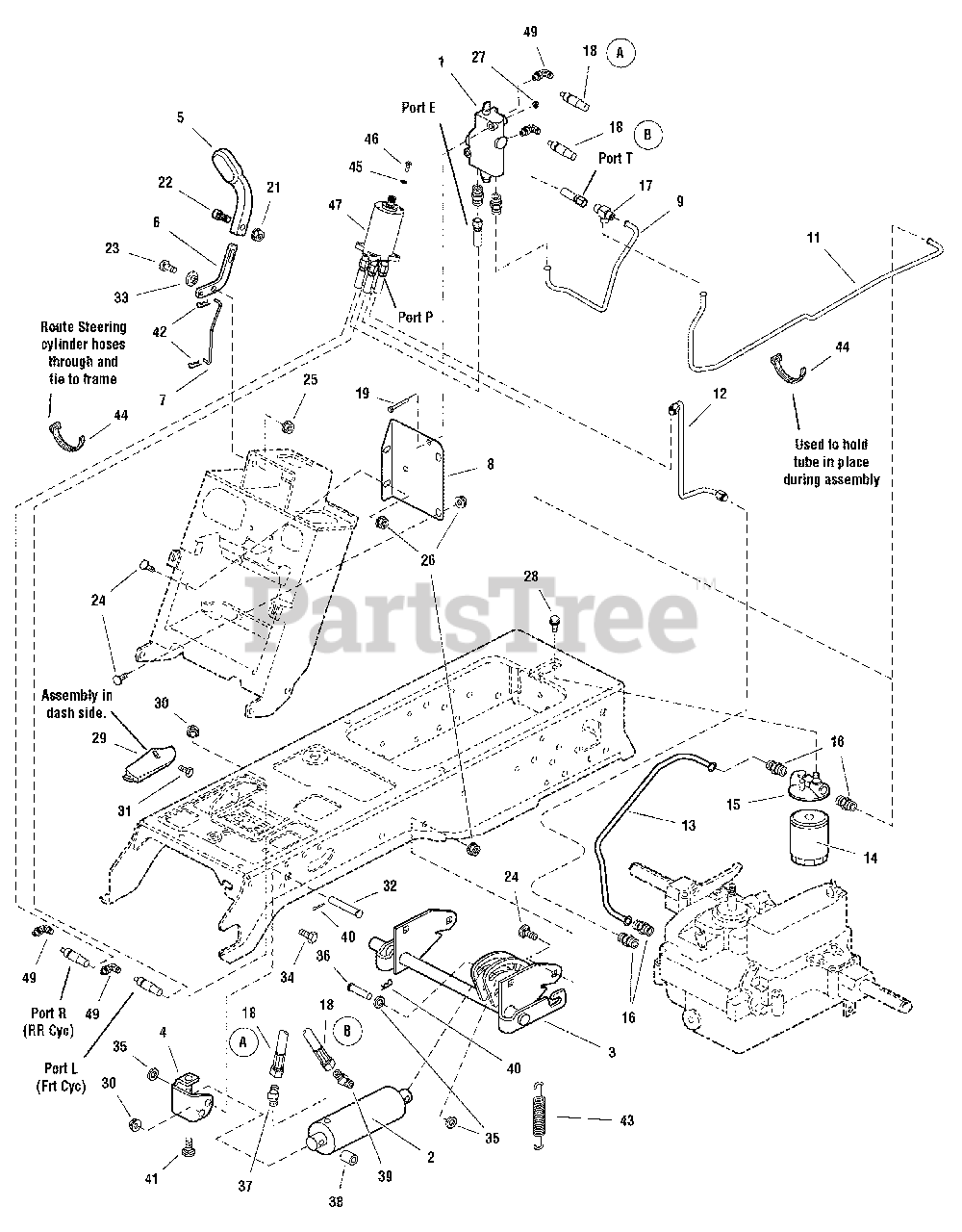

Lift Group - Hydraulic Lift with Power Steering Parts Diagram

  • Title

1

Snapper 1717558

VALVE, Control
(Superseded to 1717558SM)

$670.99

$

Usually ships in 2-12 days

0

2

Snapper 1722266

CYLINDER, Hydraulic
(Superseded to 1722266SM)

$524.99

$

Usually ships in 2-12 days

0

3

Snapper 1727436A

SHAFT ASSEMBLY, Lift
(Superseded to 1727436ASM)

$256.99

$

Usually ships in 2-12 days

0

4

Snapper 1722113A

SUPPORT, Cylinder
(Superseded to 1722113ASM)

$27.99

$

Usually ships in 2-12 days

0

5

Snapper 1722146

HANDLE, Lift
(Superseded to 1722146SM)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 1721901

LEVER, Hydraulic
(Superseded to 1721901SM)

$8.99

$

Usually ships in 2-12 days

0

7

Snapper 1727557

ROD, Curved Link
(Superseded to 1727557SM)

$13.99

$

In Stock, only 2 left!

0

8

Snapper 1721904A

SUPPORT, Control
(Superseded to 1721904ASM)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper 1722135

TUBE, Hydraulic
(Superseded to 1722135SM)

$53.99

$

Usually ships in 2-12 days

0

11

Snapper 1722138

TUBE, Hydraulic
(Superseded to 1722138SM)

$139.99

$

Usually ships in 2-12 days

0

12

Snapper 1733727

TUBE, Hydraulic 3 Bends
(Superseded to 1733727SM)

$74.99

$

In Stock, only 1 left!

0

13

Snapper 1733427

TUBE, Hydraulic
(Superseded to 1733427SM)

$68.99

$

Usually ships in 2-12 days

0

13

Snapper 1722297

TUBE, Hydraulic
(Superseded to 1722297SM)

$70.99

$

In Stock, only 1 left!

0

14

Snapper 1719168

FILTER, Oil
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 13

0

15

Snapper 1719169

BASE, Oil Filter
(Superseded to 1719169SM)

$56.99

$

Usually ships in 2-12 days

0

16

Snapper 1722123

FITTING, Straight
(Superseded to 1722123SM)

$9.99

$

Usually ships in 2-12 days

0

17

Snapper 1733211

FITTING, Tee, 3 Ports / Hydraulic Hose
(Superseded to 1733211SM)

$43.99

$

Usually ships in 2-12 days

0

18

Snapper 1733216

HOSE ASSEMBLY, Hydraulic
(Superseded to 1733216SM)

$79.99

$

Usually ships in 2-12 days

0

19

Snapper 1921963

CAPSCREW, Hex Head, 1/4-20 x 2 G5
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 1727778A

SHAFT ASSEMBLY, Lift
(Superseded to 1727778ASM)

$106.99

$

Usually ships in 2-12 days

0

21

Snapper 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1960666

SCREW, Torx Plus Socket Head 1/4-20 x 7/8
(Superseded to 1960666SM)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 1921333

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 14

0

26

Snapper 1960636

NUT, Hex KEPS 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

27

Snapper 2828372

NUT, Hex KEPS 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

28

Snapper 1931646

SCREW, Hex Whiz Lock Flange, 1/4-20 x 1/2
(Superseded to 1931646SM)

$4.49

$

In Stock, only 4 left!

0

29

Snapper 1722285

COVER, Dash ABS
(Superseded to 1722285SM)

$6.99

$

In Stock, only 1 left!

0

30

Snapper 1960637

NUT, Hex KEPS 3/8-16
(Superseded to 1960637SM)

$3.49

$

In Stock, only 1 left!

0

31

Snapper 1722607

SCREW, Pan Head Torque, #8-16 x 1/2, Plastite
(Superseded to 1722607SM)

$3.99

$

In Stock, only 1 left!

0

32

Snapper 1722147

PIN, Clevis
(Superseded to 1722147SM)

$8.49

$

Usually ships in 2-12 days

0

33

Snapper 1723244

SPACER, Hydraulic Lift Pivot
(Superseded to 1723244SM)

$7.99

$

Usually ships in 2-12 days

0

34

Snapper 1921210

CAPSCREW, Hex Head 3/8-16 x 1 G5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

35

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 1722819

PIN, Flat Head Drilled
(Superseded to 1722819SM)

$6.99

$

In Stock, Qty 10

0

37

Snapper 1722122

FITTING, Elbow 1/2
(Superseded to 1722122SM)

$17.99

$

Usually ships in 2-12 days

0

38

Snapper 1722148

SPACER
(Superseded to 1722148SM)

$11.99

$

Usually ships in 2-12 days

0

39

Snapper 1722141

FITTING, Elbow 1/2
(Superseded to 1722141SM)

$17.99

$

In Stock, only 1 left!

0

40

Snapper 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 5

0

41

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, Qty 5

0

42

Snapper 1923360

PIN, Cotter 5/8 x 3/4
(Superseded to 703892)

$3.49

$

In Stock, Qty 5

0

43

Snapper 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 11

0

44

Snapper 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

45

Snapper 1916964

LOCKWASHER, Spring 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

46

Snapper 2860444

CAPSCREW, Hex Head
(Superseded to 2860444SM)

$2.99

$

Usually ships in 2-12 days

0

47

Snapper 1733506

POWER STEERING UNIT, w/Hoses
(Superseded to 1733506SM)

$

$

Not available

47

Snapper 1734134

POWER STEERING UNIT, w/Hoses
(Superseded to 1734134SM)

Note: (4wd units)

$1094.99

$

Usually ships in 2-12 days

0

49

Snapper 1733230

FITTING, Hose Elbow Perma Push 9/16-18
(Superseded to 1733230SM)

$103.99

$

Usually ships in 2-12 days

0
