GT 26 D - Jonsered String Trimmer (2002-08) ENGINE Parts Diagram

String Trimmer

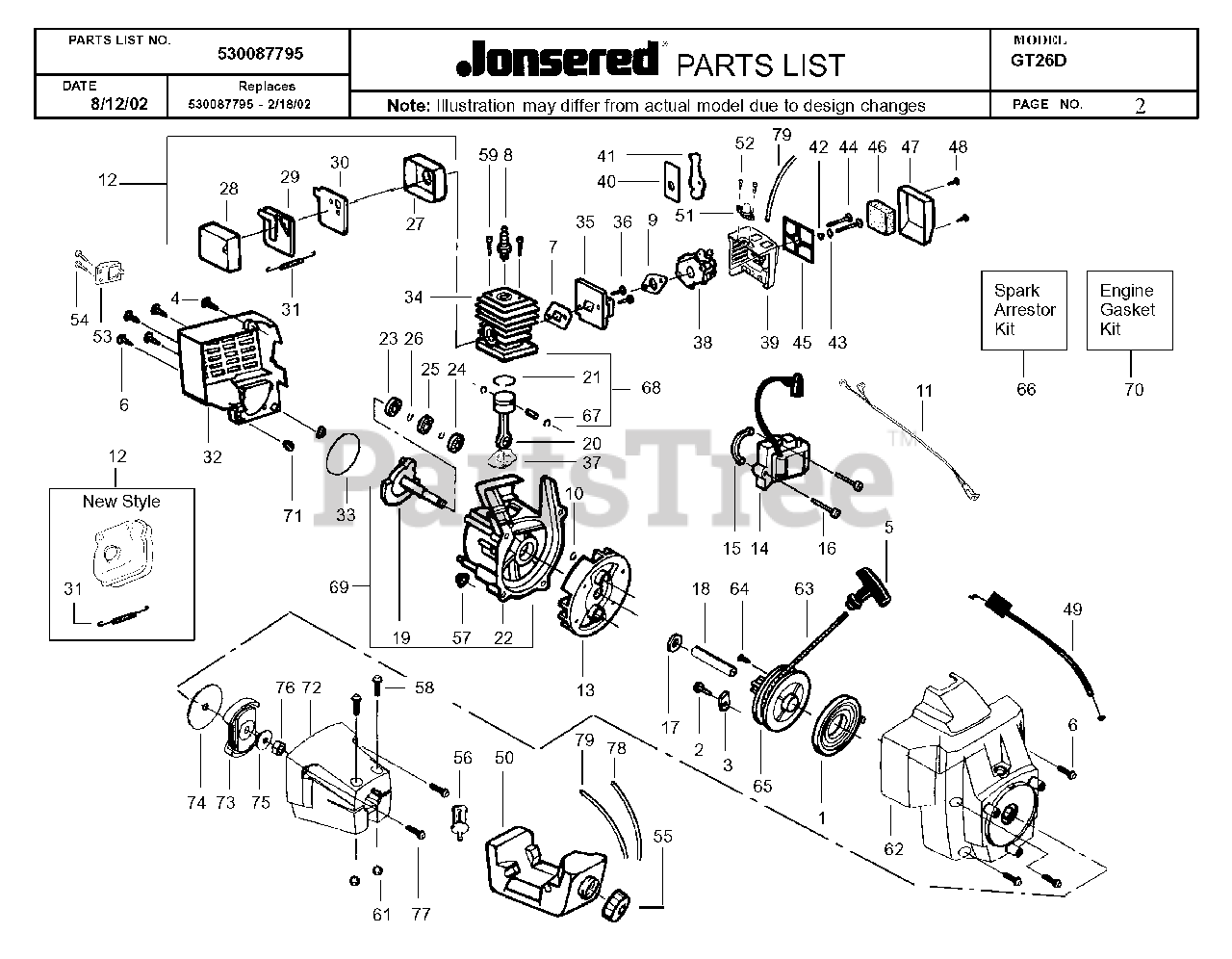

ENGINE Parts Diagram

  • Title

1

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

2

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

3

Jonsered 530027523

RETAINER

$7.49

$

In Stock, only 2 left!

0

4

Jonsered 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

5

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

6

Jonsered 530015810

SCREW - SHROUD
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Jonsered 530019243

GASKET - CYLINDER / CARB ADAPT

$6.49

$

In Stock, Qty 6

0

8

Jonsered 952030201

No Description Available
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

9

Jonsered 530035421

GASKET

$

$

Not available

10

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

11

Jonsered 530047278

LEAD WIRE ASSEMBLY

$7.49

$

Usually ships in 3-10 days

0

530069989

Jonsered 530069989

MUFFLER (OLD STYLE)

$6.49

$

Usually ships in 3-10 days

0

530071309

Jonsered 530071309

KIT-MUFFLER (NEW STYLE)
(Superseded to 530071390)

$18.99

$

Usually ships in 3-10 days

0

13

Jonsered 530069886

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Jonsered 530039163

IGNITION MODULE

$53.99

$

Usually ships in 3-10 days

0

15

Jonsered 530036145

SPACER - IGNITION MODULE

$3.99

$

In Stock, only 3 left!

0

16

Jonsered 530015954

SCREW.

$4.99

$

Usually ships in 3-10 days

0

17

Jonsered 530015149

WASHER

$4.99

$

In Stock, only 3 left!

0

18

Jonsered 530037705

DRIVE COUPLING

$5.99

$

Usually ships in 3-10 days

0

19

Jonsered 530014864

CRANKSHAFT ASSEMBLY

Note: NEW PART NUMBER FOR THIS IPL

$21.99

$

Usually ships in 3-10 days

0

20

Jonsered 530069615

CONNECTING ROD ASSEMBLY

$24.99

$

Usually ships in 3-10 days

0

21

Jonsered 530012472

RING-PISTON
(Superseded to 545154009)

Note: NEW PART NUMBER FOR THIS IPL

$3.99

$

In Stock, Qty 11

0

22

Jonsered 530012414

ASSY-CRANKCASE
(Superseded to 530071627)

$26.99

$

Usually ships in 3-10 days

0

23

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

24

Jonsered 530032124

BEARING

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 530019179

SEALING RING

$7.49

$

Usually ships in 3-10 days

0

26

Jonsered 530015945

CLIP

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 530036578

MUFFLER BODY

$4.99

$

Usually ships in 3-10 days

0

28

Jonsered 530036577

MUFFLER COVER

$2.99

$

Usually ships in 3-10 days

0

29

Jonsered 530053500

BAFFLE

$0.99

$

Usually ships in 3-10 days

0

30

Jonsered 530053499

BAFFLE

$1.99

$

Usually ships in 3-10 days

0

530016197

Jonsered 530016197

SPRING

$4.99

$

In Stock, Qty 6

0

530042088

Jonsered 530042088

No Description Available

$3.99

$

In Stock, only 1 left!

0

32

Jonsered 530054571

No Description Available

$

$

Not available

33

Jonsered 530019181

GASKET, CRANKCASE

$6.49

$

In Stock, only 4 left!

0

34

Jonsered 530069757

CYLINDER
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

35

Jonsered 530071250

SPACER

$8.99

$

Usually ships in 3-10 days

0

36

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

37

Jonsered 530019223

GASKET - CYLINDER

$4.99

$

In Stock, Qty 6

0

38

Jonsered 530069998

CARBURETOR
(Superseded to 530071639)

$63.46

$

In Stock, only 1 left!

0

39

Jonsered 530054554

No Description Available

$9.99

$

Usually ships in 3-10 days

0

40

Jonsered 530037326

CHOKE PLATE

$

$

Not available

41

Jonsered 530038102

CHOKE SHUTTER

$3.99

$

Usually ships in 3-10 days

0

42

Jonsered 530015254

WASHER

$3.99

$

In Stock, only 2 left!

0

43

Jonsered 530015852

CHOKE SPACER

$2.49

$

In Stock, only 1 left!

0

44

Jonsered 530015849

SCREW

$6.49

$

In Stock, only 1 left!

0

45

Jonsered 530037413

FILTER PLATE

$

$

Not available

46

Jonsered 530037331

AIR FILTER FOAM

$

$

Not available

47

Jonsered 530037292

AIR FILTER COVER

$4.99

$

Usually ships in 3-10 days

0

48

Jonsered 530015957

SCREW

$4.99

$

In Stock, Qty 7

0

49

Jonsered 530049826

THROTTLE CABLE.

$7.99

$

Usually ships in 3-10 days

0

50

Jonsered 530069862

TANK UNIT

$

$

Not available

51

Jonsered 530038874

AIR PURGE BUBBLE

$8.99

$

Usually ships in 3-10 days

0

52

Jonsered 530015780

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$6.49

$

In Stock, only 3 left!

0

53

Jonsered 530037045

MUFFLER GUARD
(Superseded to 530069380)

$6.49

$

Usually ships in 3-10 days

0

54

Jonsered 530015675

SCREW-8-18 X 5/18(RECES

$3.99

$

In Stock, only 1 left!

0

55

Jonsered 530014347

CAP ASSY W/ RETAINER

$8.99

$

In Stock, Qty 5

0

56

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 530036792

CRANKCASE ISOLATOR

$7.49

$

Usually ships in 3-10 days

0

58

Jonsered 530015767

SCREW-10-24 X 1-3/8 (UN

$3.99

$

In Stock, only 2 left!

0

59

Jonsered 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

61

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

62

Jonsered 530047493

HOUSING

$14.99

$

Usually ships in 3-10 days

0

63

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

64

Jonsered 530016080

SCREW

$6.49

$

In Stock, Qty 11

0

65

Jonsered 530069400

STARTER PULLEY KIT
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

530069380

Jonsered 530069380

KIT-SPARK ARRESTOR (OLD STYLE)

$6.49

$

Usually ships in 3-10 days

0

530071290

Jonsered 530071290

No Description Available

$9.99

$

Usually ships in 3-10 days

0

67

Jonsered 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

68

Jonsered 530069987

No Description Available

$27.99

$

Usually ships in 3-10 days

0

69

Jonsered 530054135

No Description Available

$

$

Not available

70

Jonsered 530071253

GASKET KIT

$

$

Not available

71

Jonsered 530036793

SHROUD ISOLATOR

$8.99

$

Usually ships in 3-10 days

0

72

Jonsered 530047013

COVER

$

$

Not available

73

Jonsered 530069491

CLUTCH ASSEMBLY KIT

$

$

Not available

74

Jonsered 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, Qty 20+

0

75

Jonsered 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

76

Jonsered 530626605

NUT

$3.99

$

Usually ships in 3-10 days

0

77

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, Qty 17

0

78

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

79

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0
