GT 2754 KH (14AK94GK897) - Columbia 54" Garden Tractor, Kohler (2012) Steering & Front Axle Parts Diagram

54" Garden Tractor, Kohler

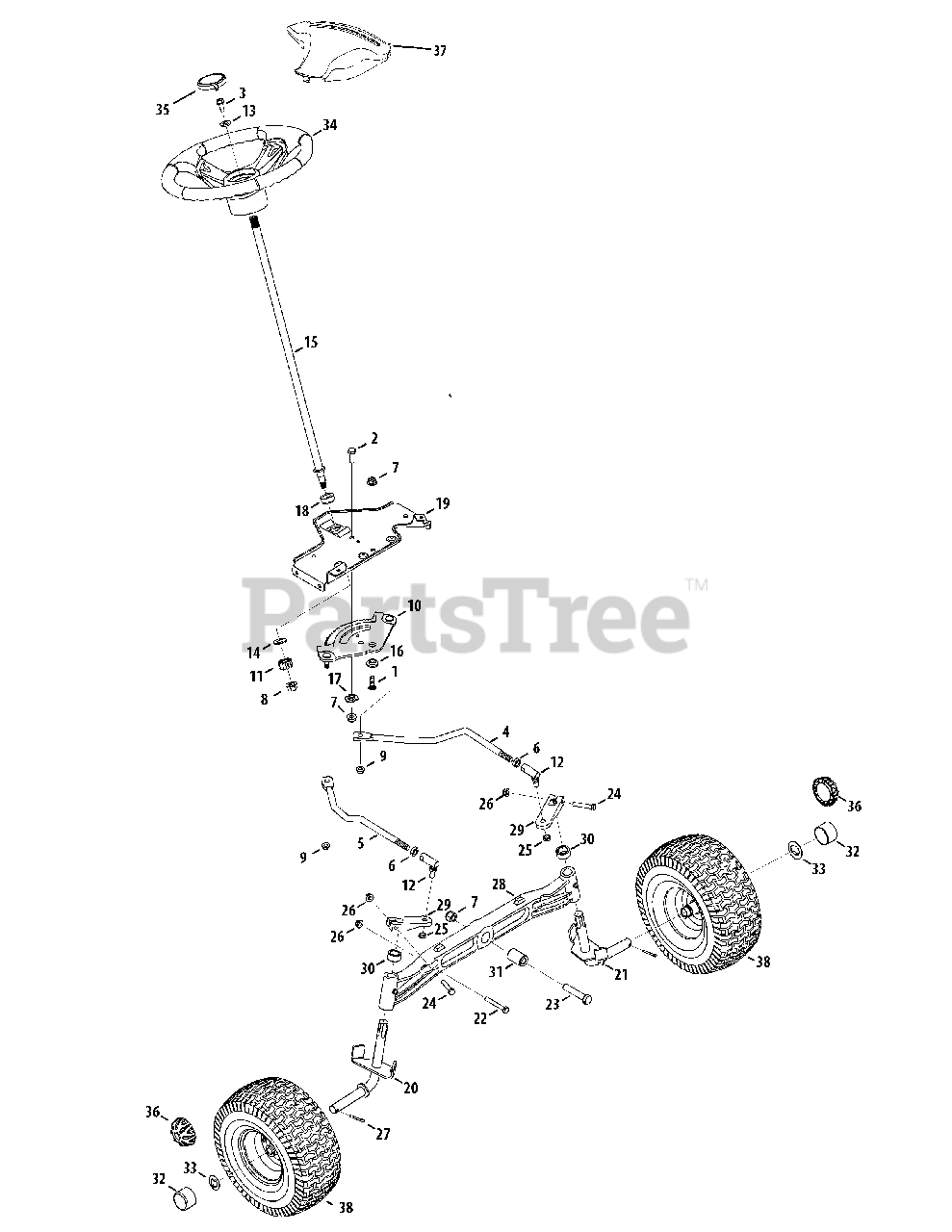

Steering & Front Axle Parts Diagram

  • Title

1

MTD 710-04095

Screw, 3/8-16 x 1.0

$4.99

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw 3/16 x 1.00

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw 5/16-18 x 1.00 Special

$6.49

$

In Stock, Qty 20+

0

4

MTD 711-04998

Link, Drag LH

$25.99

$

In Stock, Qty 15

0

5

MTD 711-04999

Link, Drag RH

$25.99

$

In Stock, Qty 14

0

6

MTD 912-0240

Hex Jam Nut 7/16-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Hex Flange L-Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

10

MTD 717-1550F

Steering Gear, 11/90 Ratio

$65.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16 - 20

$22.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Flat Washer .406 ID x .875 DE x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Fl. Washer .510 x 1.120 x .060

$4.49

$

In Stock, Qty 20+

0

15

MTD 738-04263

Steering Shaft .625 OD x 24.25

$63.99

$

In Stock, Qty 8

0

16

MTD 738-04363

Shoulder Spacer .385 x 1.25 x .3025

$5.49

$

In Stock, Qty 20+

0

17

MTD 738-04364B

Spacer .38x 1.375 Special

$5.99

$

In Stock, only 3 left!

0

18

MTD 741-04237B

Hex Flange Bearing 5/8

$6.49

$

In Stock, Qty 20+

0

19

MTD 783-06043-0637

Steering Support Bracket

$

$

Not available

20

MTD 938-04040-0637

Axle Ass’y RH .750 Dia. (54" Deck)

$

$

Not available

21

MTD 938-04041-0637

Axle Ass’y LH .750 Dia. (54" Deck)

$

$

Not available

22

MTD 710-0395

Hex Bolt 5/16-18 x 2.25

$4.49

$

In Stock, Qty 8

0

23

MTD 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.49

$

In Stock, Qty 20+

0

24

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$4.99

$

In Stock, Qty 20+

0

25

MTD 912-0214

Hex Cent L-Nut 3/8-24
(Superseded to 712-0214)

$5.99

$

In Stock, Qty 20+

0

26

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

27

MTD 714-0162

Cotter Pin 5/32" Dia.

$4.99

$

In Stock, Qty 20+

0

28

MTD 719-04413A

Pivot Bar (cast)

$224.99

$

Usually ships in 3-6 days

0

29

MTD 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$19.99

$

In Stock, Qty 9

0

30

MTD 748-04068

Spacer .710 ID x .125 OD x .56

$3.99

$

In Stock, Qty 20+

0

31

MTD 750-05280

Spacer .385 x 1.0 x 1.5075

$10.99

$

In Stock, Qty 10

0

32

MTD 731-05674

Hub Cap

$4.99

$

In Stock, Qty 20+

0

33

MTD 736-04228A

Flat Washer .350 x 1.559 x .062
(Superseded to 736-04228B)

$4.99

$

In Stock, Qty 20+

0

34

MTD 631-04028

Steering Wheel, Standard Grip

$64.99

$

In Stock, Qty 7

0

34

MTD 631-04008A

Steering Wheel, Softgrip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

35

MTD 731-04040

Steering Wheel Cap (sprig)logo

$9.49

$

In Stock, only 1 left!

0

36

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

37

MTD 731-04065A

Steering Wheel Cover (w/sprigs)

$13.99

$

Usually ships in 3-6 days

0

38

N/A

Wheel Complete

$

$

Not available

38

MTD 734-1727

Tire Only

Note: Not shown

$52.99

$

Usually ships in 3-6 days

0

38

MTD 934-04090A-0662

Rim w/bearings

Note: Not shown

$176.99

$

Usually ships in 3-6 days

0

38

MTD 934-0255

Valve

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

38

MTD 941-04137

Ball Bearing
(Superseded to 941-04137A)

Note: Not shown

$28.99

$

In Stock, Qty 14

0
