GT 31 B (UT-26055) - Green Machine String Trimmer Engine Internals Parts Diagram

String Trimmer

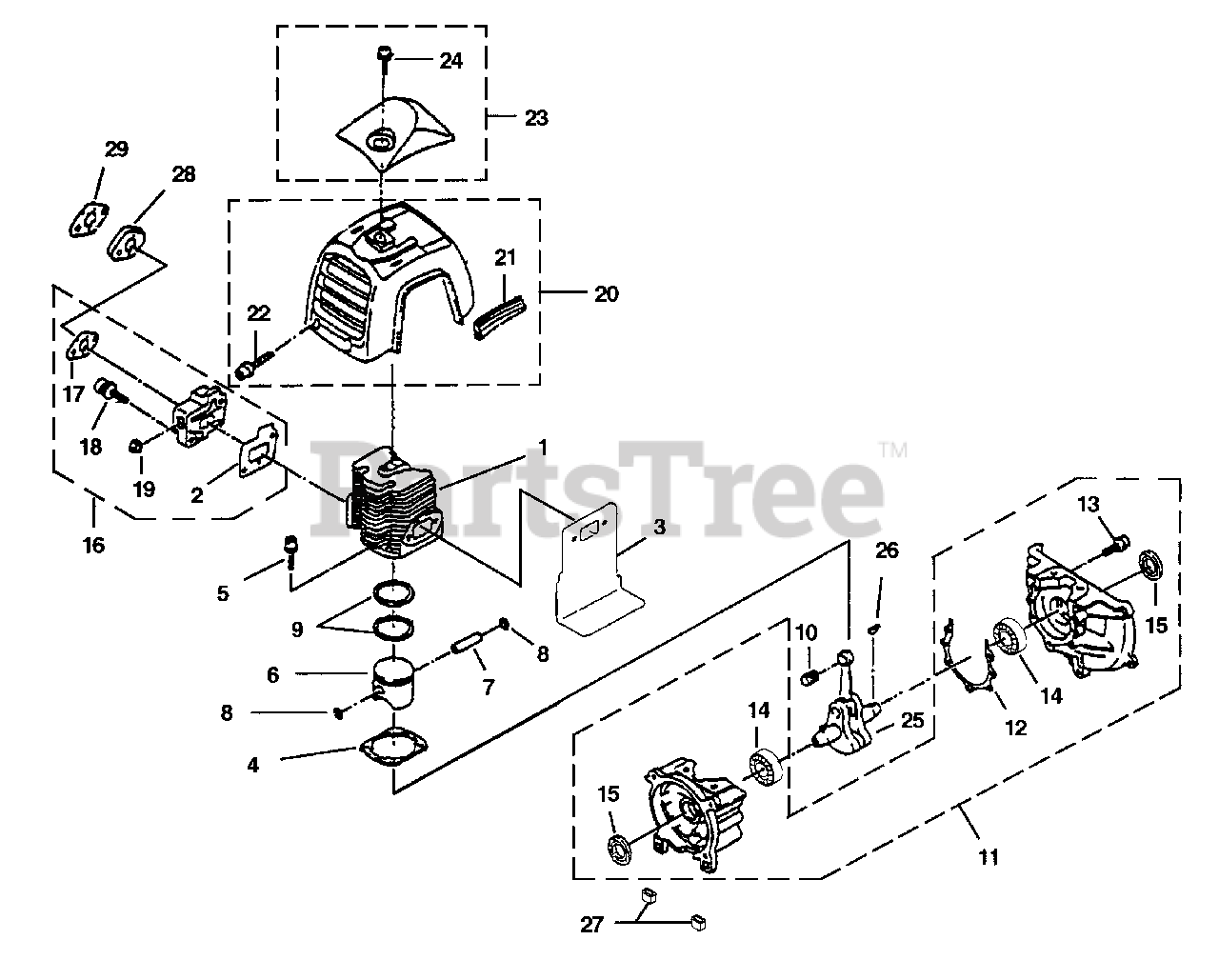

Engine Internals Parts Diagram

  • Title

1

Homelite UP00446

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00481

GASKET-Heat Dam

$

$

Not available

3

Homelite PS00482

GASKET-Muffler

$

$

Not available

4

Homelite PS00483

GASKET-Cylinder

$

$

Not available

5

Homelite PS00518

SCREW-Socket HD (M5 x 18 SW)

Note: Torque Specs 61 - 69 In/Lbs, 6.9 - 7.8 Nm

$

$

Not available

6

Homelite UP00447

PISTON ASSEMBLY

$

$

Not available

7

Homelite PS00485

PIN-Piston

$

$

Not available

8

Homelite PS00486

RING-Retaining

$

$

Not available

9

Homelite PS00487

RINGS-Piston

$

$

Not available

10

Homelite PS00488

BEARING-Wrist Pin

$

$

Not available

11

Homelite UP00448

CRANKCASE ASSEMBLY

$

$

Not available

12

Homelite PS00489

GASKET-Crankcase

$

$

Not available

13

Homelite PS00490

SCREW (M5 x 25)

Note: Torque Specs 33 - 37 In/Lbs, 3.7 - 4.2 Nm

$

$

Not available

14

Homelite PS02687

BALL BEARING

$

$

Not available

15

Homelite PS02688

OIL SEAL

$

$

Not available

16

Homelite UP00449

HEAT DAM ASSEMBLY

$

$

Not available

2

Homelite PS00481

GASKET-Heat Dam

$

$

Not available

17

Homelite PS00851

GASKET-Carburetor

$

$

Not available

18

Homelite PS00758

SCREW-Socket Hd (M5 x 20)

Note: Torque Specs 33 - 37 In/Lbs, 3.7 - 4.2 Nm; Red 262 Loctite Required

$

$

Not available

19

Homelite PS00494

NUT

$

$

Not available

20

Homelite UP00459

CYLINDER COVER

$

$

Not available

21

Homelite PS00528

BUMPER, Rubber

$

$

Not available

22

Homelite PS00534

SCREW (M5 X 30)

Note: Torque Specs 11 - 15 In/Lbs, 1.2 - 1.7 Nm

$

$

Not available

23

Homelite UP00460

PLUG COVER

$

$

Not available

24

Homelite PS00535

SCREW

$

$

Not available

25

Homelite PS00537

CRANKSHAFT

$

$

Not available

26

Homelite PS00538

KEY-Woodruff

$

$

Not available

27

Homelite UP00458

RUBBER BUMPER KIT

$

$

Not available

28

Homelite PS02689

SPACER-Carburetor

$

$

Not available

29

Homelite PS00851

GASKET-Carburetor

$

$

Not available
