GT 31 B (UT-26055) - Green Machine String Trimmer Exhaust System Parts Diagram

String Trimmer

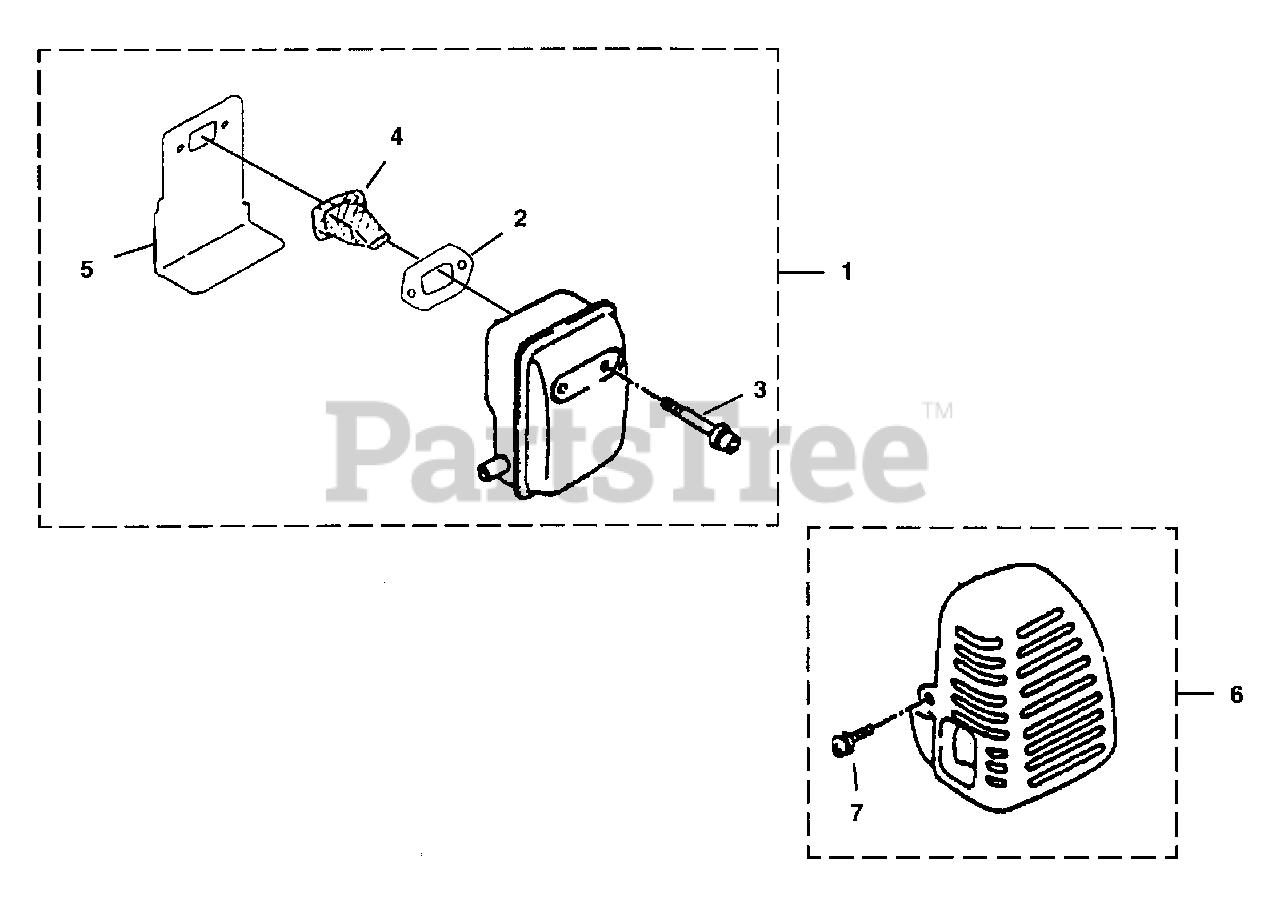

Exhaust System Parts Diagram

  • Title

1

Homelite UP05125

MUFFLER ASSEMBLY

$

$

Currently unavailable

2

Homelite PS02715

GASKET-Muffler

$

$

Not available

3

Homelite PS00694

SCREW-Socket Hd. (M5 x 55)

Note: Torque Specs 61 - 69 In/Lbs, 6.9 - 7.8 Nm, Red 262 Loctite Required

$1.49

$

Usually ships in 3-7 days

0

4

Homelite PS02716

SPARK ARRESTOR

$

$

Not available

5

Homelite PS00482

GASKET-Muffler

$

$

Not available

6

Homelite UP00461

MUFFLER COVER (Black)

$

$

Not available

7

Homelite PS00536

SCREW ASSEMBLY (M5 x 14)

Note: Torque Specs 11 - 15 In/Lbs, 1.2 - 1.7 Nm

$

$

Not available
