GT 31 B (UT-26055) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

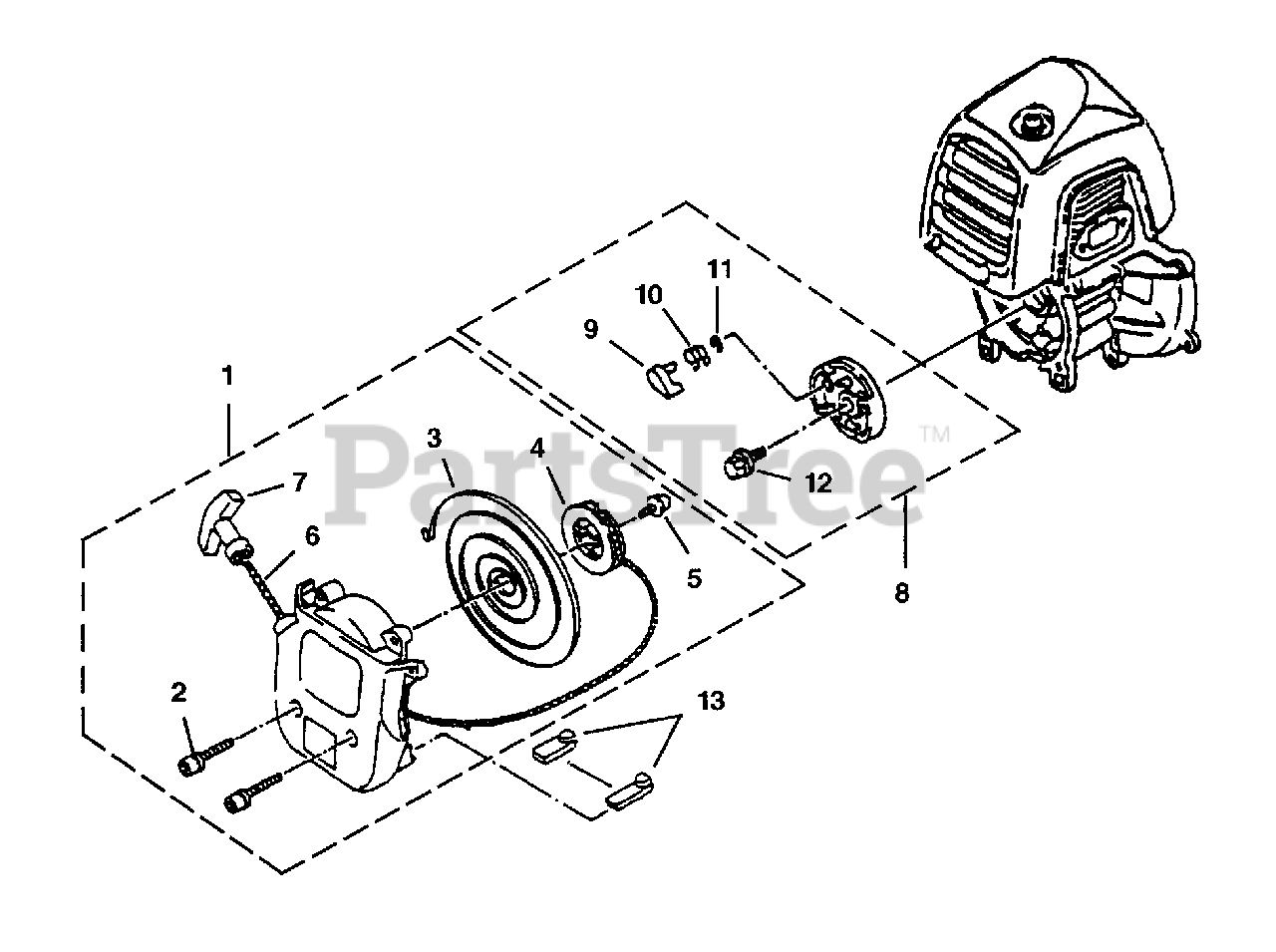

Starter Parts Diagram

  • Title

1

Homelite UP00443

STARTER COMPLETE

$

$

Not available

2

Homelite PS00534

SCREW-Socket Hd (M5 x 30)

Note: Torque Specs 26 - 34 In/Lbs, 2.9 - 3.8 Nm

$

$

Not available

3

Homelite PS00707

SPRING

$

$

Not available

4

Homelite PS00473

PULLEY

$

$

Not available

5

Homelite PS00474

SCREW-Set (M5 x 30)

Note: Torque Specs 26 - 34 In/Lbs, 2.9 - 3.8 Nm

$

$

Not available

6

Homelite PS00475

ROPE-Starter

$

$

Not available

7

Homelite PS00568

GRIP

$

$

Not available

8

Homelite UP00444

STARTER CUP ASSEMBLY

$

$

Not available

9

Homelite PS00477

RATCHET

$

$

Not available

10

Homelite PS00478

SPRING-Return

$

$

Not available

11

Homelite PS00479

E-CLIP

$4.99

$

Usually ships in 3-7 days

0

12

Homelite PS00822

BOLT ASSEMBLY (M6 x 14)

Note: Torque Specs 62 - 78 In/Lbs, 7.0 - 8.8 Nm

$

$

Not available

13

Homelite UP00458

RUBBER BUMPER KIT

$

$

Not available
