GT 31 (UT-26041) - Green Machine String Trimmer Deflector, Guard, Driveshaft & Stringhead Parts Diagram

String Trimmer

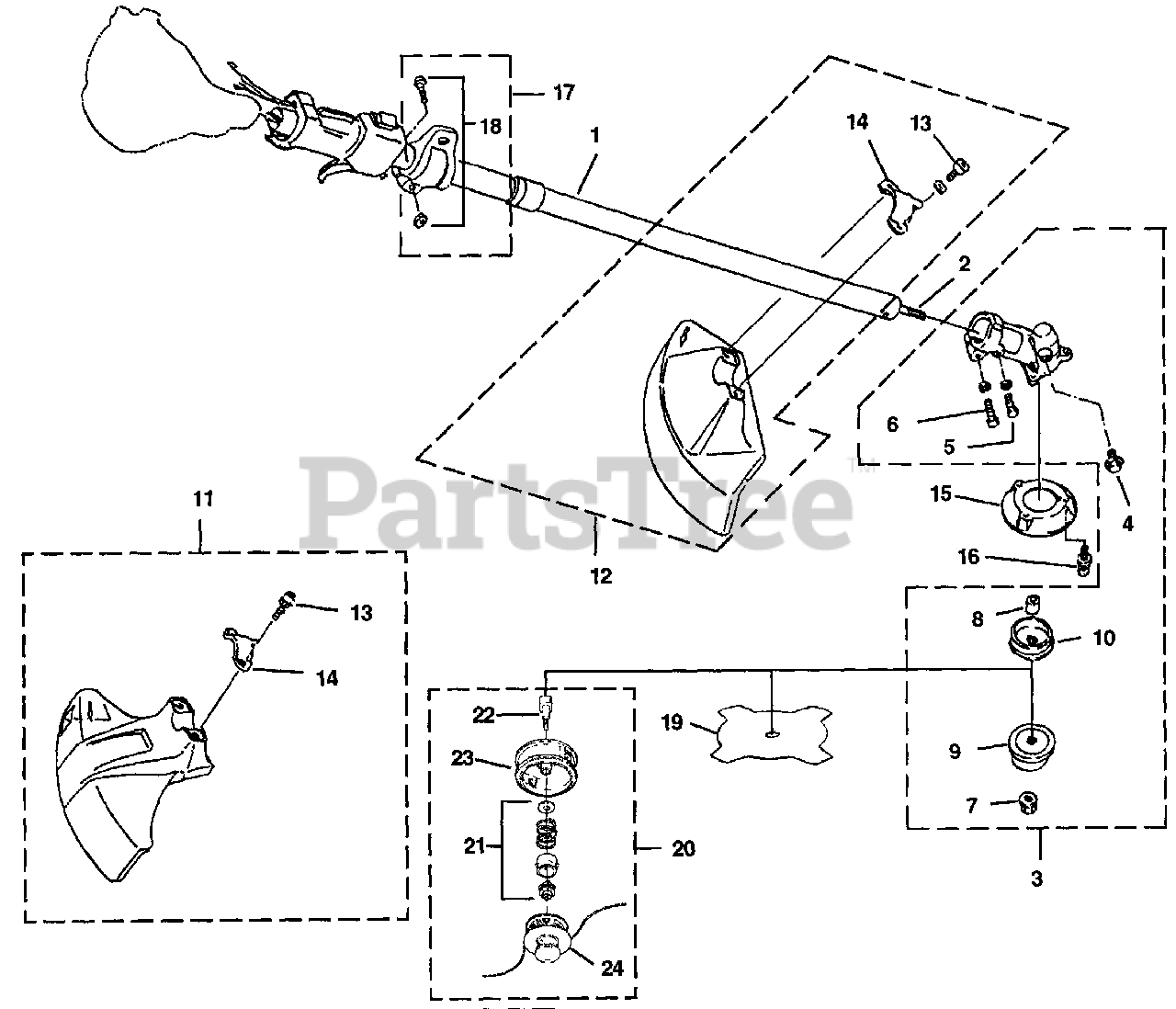

Deflector, Guard, Driveshaft & Stringhead Parts Diagram

  • Title

1

Homelite UP00435

DRIVESHAFT HOUSING

$

$

Not available

2

Homelite PS00448

Drive Shaft

$

$

Not available

3

Homelite UP00436

GEAR HEAD

$

$

Not available

4

Homelite PS00449

BOLT-Grease

$

$

Not available

5

Homelite PS00450

BOLT

$

$

Not available

6

Homelite PS00451

BOLT

$

$

Not available

7

Homelite PS00452

NUT

$

$

Not available

8

Homelite PS00453

SPACER

$

$

Not available

9

Homelite PS00447

WASHER-Cupped

$

$

Not available

10

Homelite PS00454

WASHER-Flange

$

$

Not available

11

Homelite UP00438

DEFLECTOR ASSEMBLY (Grass)

Note: Incl items 13 & 14

$137.99

$

Usually ships in 3-7 days

0

12

Homelite UP00627

DEFLECTOR ASSEMBLY (Blade)

Note: Incl items 13 & 14

$

$

Not available

13

Homelite PS00455

BOLT (M6 x 30)

$

$

Not available

14

Homelite PS00456

CLAMP

$

$

Not available

15

Homelite UP00496

GRASS GUARD

$

$

Not available

16

Homelite PS00559

SCREW-Socket Hd (M5 x 12 W SW)

$

$

Not available

17

Homelite UP00441

HANGER ASSEMBLY

$

$

Not available

18

Homelite PS00460

SCREW and NUT

$

$

Not available

19

Homelite DG07813

QUAD BLADE

$

$

Currently unavailable

20

Homelite UP00625

STRINGHEAD ASSEMBLY (.095)

$

$

Not available

21

Homelite A02342

REPAIR KIT

$

$

Not available

22

Homelite 03709

BOLT, Shaft

$

$

Not available

23

Homelite 02341

HOUSING W/Eyelets

$

$

Not available

24

Homelite UP02941

SPOOL & STRING (.095)

$30.99

$

In Stock, only 1 left!

0
