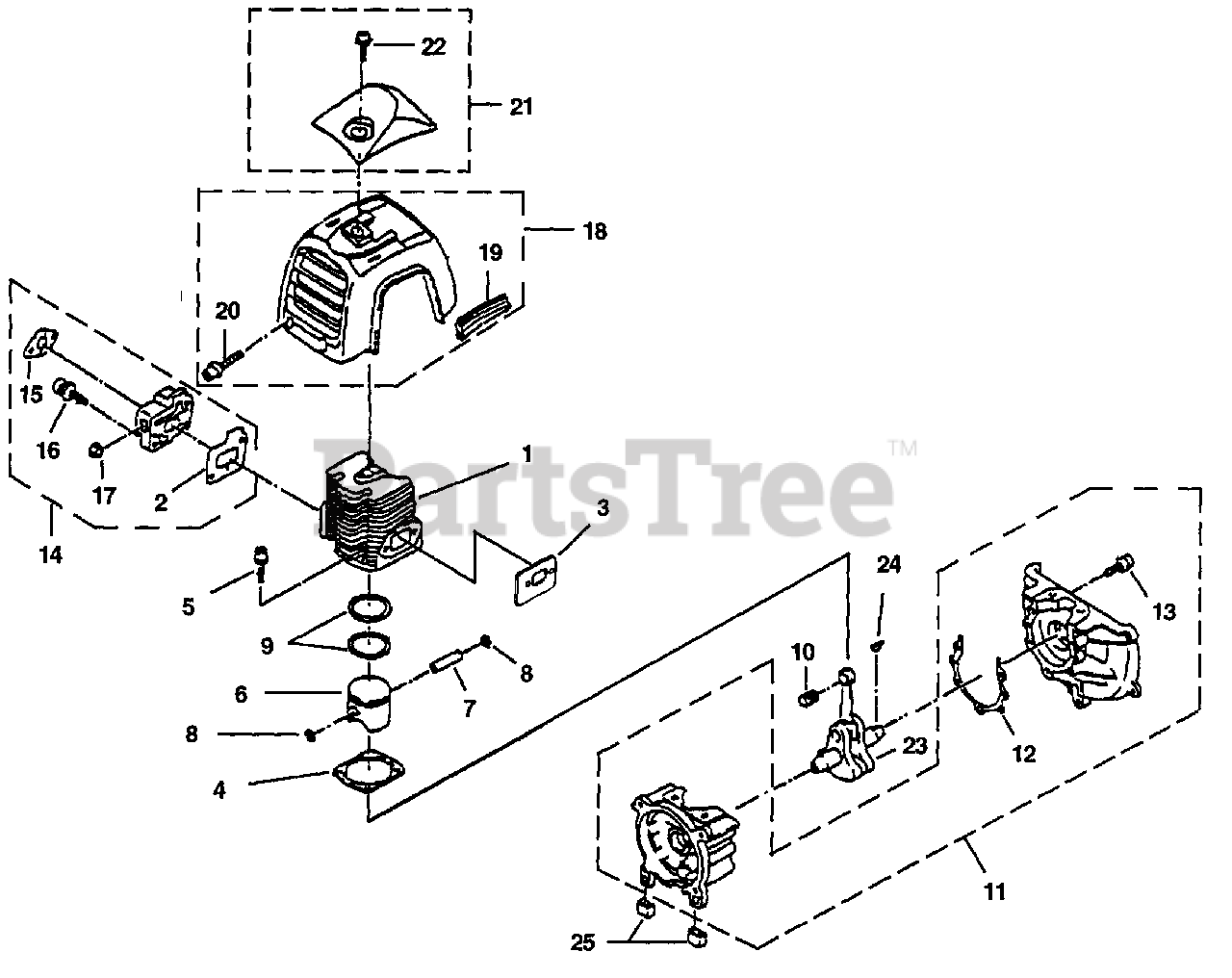

GT 31 (UT-26041) - Green Machine String Trimmer Engine Internals Parts Diagram

String Trimmer

Engine Internals Parts Diagram

  • Title

1

Homelite UP00446

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00481

GASKET-Heat Dam

$

$

Not available

3

Homelite PS00482

GASKET-Muffler

$

$

Not available

4

Homelite PS00483

GASKET-Cylinder

$

$

Not available

5

Homelite PS00518

SCREW-Socket HD (M5 x 18 SW)

$

$

Not available

6

Homelite UP00447

PISTON ASSEMBLY

$

$

Not available

7

Homelite PS00485

PIN-Piston

$

$

Not available

8

Homelite PS00486

RING-Retaining

$

$

Not available

9

Homelite PS00487

RINGS-Piston

$

$

Not available

10

Homelite PS00488

BEARING-Wrist Pin

$

$

Not available

11

Homelite UP00448

CRANKCASE ASSEMBLY

$

$

Not available

12

Homelite PS00489

GASKET-Crankcase

$

$

Not available

13

Homelite PS00490

SCREW

$

$

Not available

14

Homelite UP00449

HEAT DAM ASSEMBLY

$

$

Not available

2

Homelite PS00481

GASKET-Heat Dam

$

$

Not available

15

Homelite PS00851

GASKET-Carburetor

$

$

Not available

16

Homelite PS00758

SCREW-Socket Hd (M5 x 20)

$

$

Not available

17

Homelite PS00494

NUT

$

$

Not available

18

Homelite UP00459

CYLINDER COVER

$

$

Not available

19

Homelite PS00528

BUMPER, Rubber

$

$

Not available

20

Homelite PS00534

SCREW (M5 x 30)

$

$

Not available

21

Homelite UP00460

PLUG COVER

$

$

Not available

22

Homelite PS00535

SCREW

$

$

Not available

23

Homelite PS00537

CRANKSHAFT

$

$

Not available

24

Homelite PS00538

KEY-Woodruff

$

$

Not available

25

Homelite UP00458

BUMPER, Rubber

$

$

Not available
