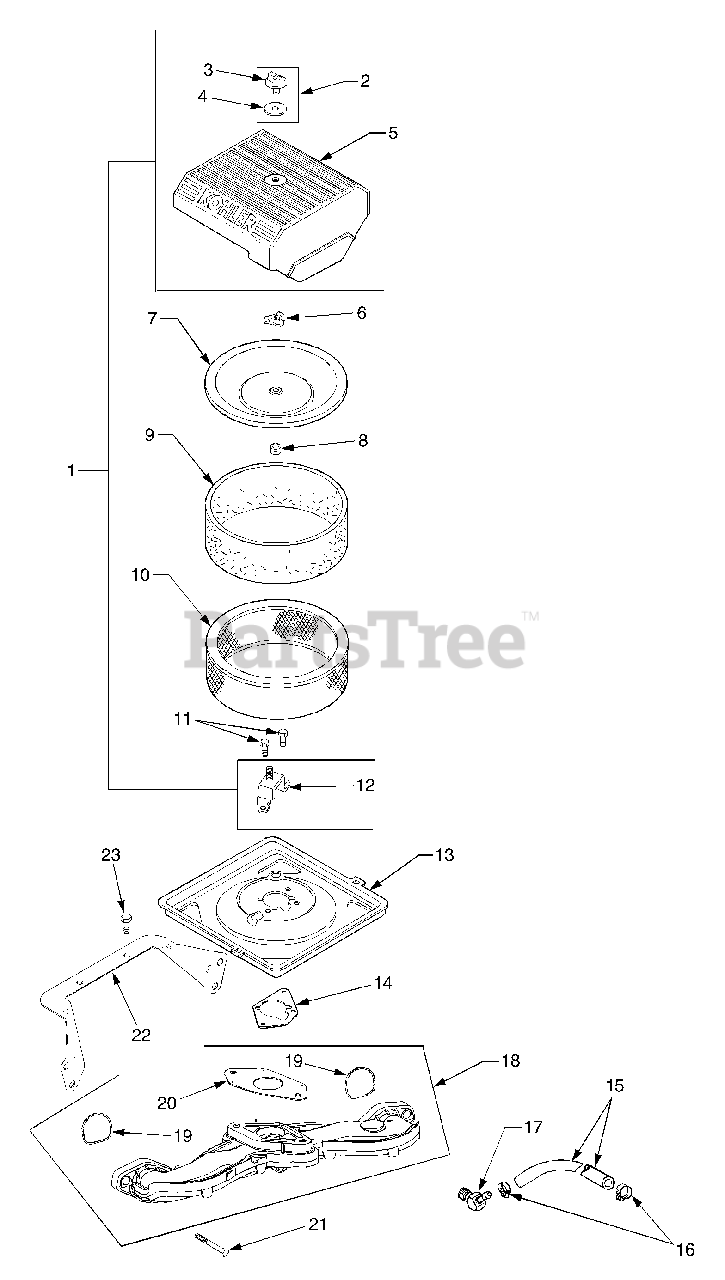

GT 3100 (14B-671-710) - Cub Cadet Garden Tractor Air Intake Parts Diagram

Garden Tractor

Air Intake Parts Diagram

  • Title

1

Cub Cadet KH-24-743-08

Kit, Air Cleaner Cover

Note: (Incl 2-5, 12)

$

$

Not available

2

Cub Cadet KH-54-755-01

Kit, Knob w/Seal
(Superseded to KH-54-755-01-S)

Note: (Incl. Ref #3,4)

$9.49

$

In Stock, Qty 18

0

3

Cub Cadet KH-25-341-04-S

Knob, Cover

$7.99

$

In Stock, Qty 13

0

4

Cub Cadet KH-24-153-20-S

Seal, Air Cleaner Cover Knob

$2.49

$

In Stock, Qty 13

0

5

Cub Cadet KH-24-096-69-S

Cover, Air Cleaner

$47.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-100-01

Wing Nut

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet KH-24-096-01

Cover, Inner Air Cleaner

$

$

Not available

8

Cub Cadet KH-24-032-03

Seal, Inner Air Cleaner

$4.99

$

In Stock, Qty 17

0

9

Cub Cadet KH-24-083-02

Precleaner, Element
(Superseded to 4788303S1C)

$27.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-47-083-03

Element, Air Cleaner
(Superseded to 4788303S1C)

$27.99

$

In Stock, Qty 20+

0

11

Cub Cadet KH-24-086-53-S

Screw, Hex Flange, M6 x 1.0 x 16

$2.49

$

In Stock, Qty 10

0

12

Cub Cadet KH-24-126-21

Bracket, Air Cleaner Base
(Superseded to KH-24-126-206-S)

$10.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-24-094-24-S

Base, Air Cleaner
(Superseded to KH-24-094-84-S)

$18.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.49

$

In Stock, Qty 9

0

15

Cub Cadet KH-15-353-02

Line, Fuel 17"
(Superseded to 751-10349-22)

$24.99

$

Usually ships in 3-6 days

0

16

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

17

Cub Cadet KH-25-155-02

Connector, Hose 45°.

$

$

Not available

18

Cub Cadet KH-24-164-55-S

Manifold, Intake
(Superseded to KH-24-164-93-S)

Note: (Includes 19,20)

$203.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-24-153-27-S

O-Ring, Intake Manifold

$3.49

$

In Stock, Qty 12

0

20

Cub Cadet KH-24-041-53-S

Gasket, Carburetor

$3.49

$

In Stock, Qty 13

0

21

Cub Cadet KH-M-0651040-S

Screw, Hex Flange, M6 x 1.0 x 40

$

$

Currently unavailable

22

Cub Cadet KH-24-126-130-S

Bracket, Air Cleaner Base

$10.99

$

In Stock, Qty 5

0

23

Cub Cadet KH-M-0545010

Screw, Hex Flng, M5 x 0.8 x 10

$

$

Not available
