GT 3100 (14B-671-710) - Cub Cadet Garden Tractor Fuel Tank Parts Diagram

Garden Tractor

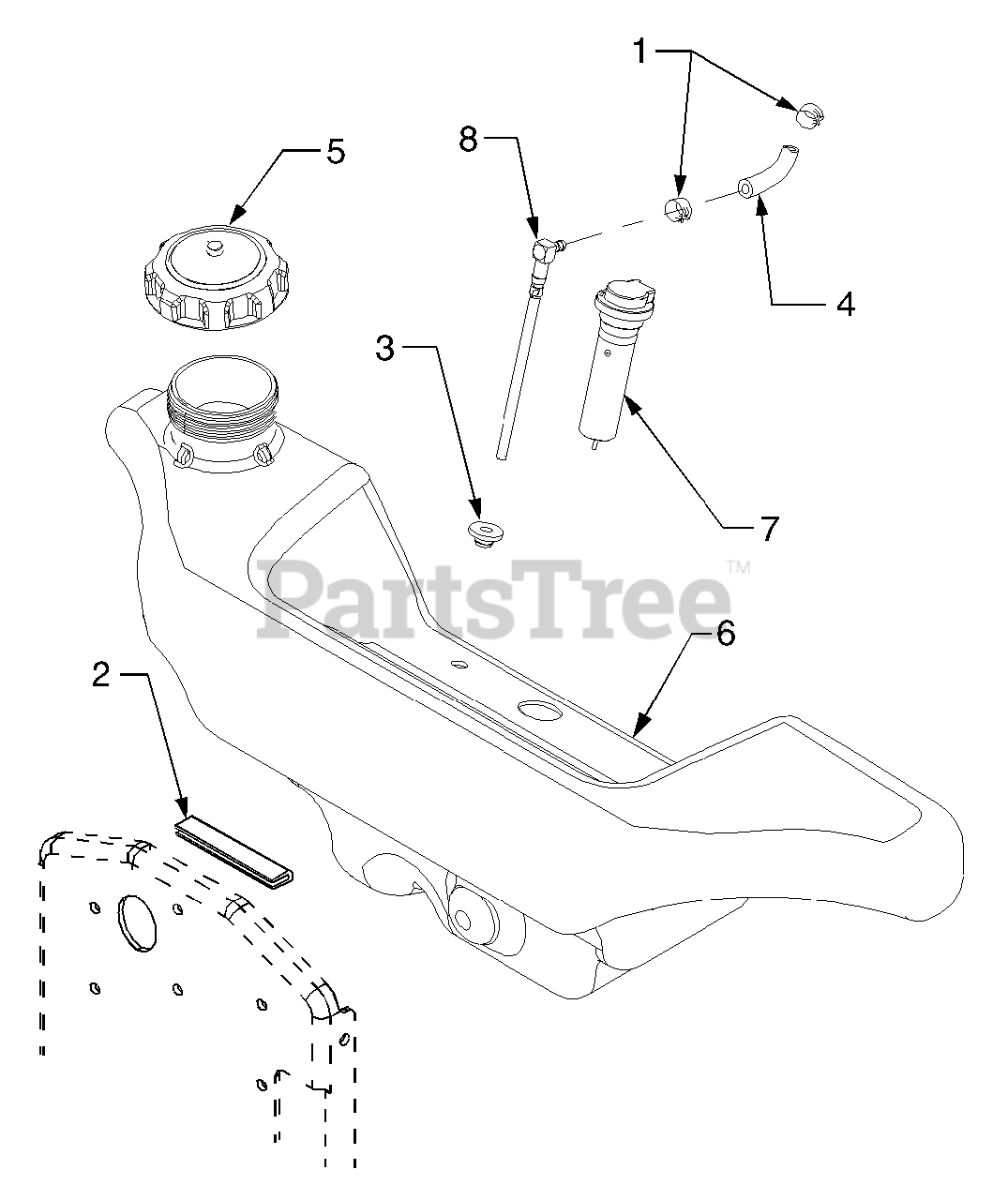

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 726-0205

Clamp, Hose

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 731-3268

Trim, Tank Protector

Note: 4in.

$

$

Not available

3

Cub Cadet 735-0149

Bushing, Rubber
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

4

Cub Cadet 751-10349-54

Fuel Line

Note: 54in, Replaces 751-0535-60 in this model

$56.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751-3124B

Cap, Fuel
(Superseded to 951-3124E)

$38.99

$

In Stock, Qty 20+

0

6

Cub Cadet 651-3002A

Tank Assembly, Fuel

Note: Includes Ref. Nos. 3,5,7 and 8

$

$

Not available

7

Cub Cadet 751-3161

Sensor, Low Fuel

$94.99

$

In Stock, Qty 5

0

7

Cub Cadet 751-3146

Grommet
(Superseded to 735-0699)

$17.99

$

In Stock, Qty 20+

0

8

Cub Cadet 751-3162A

Fitting, Fuel Pickup

$23.99

$

In Stock, Qty 20+

0
