GT 3100 (14B-671-710) - Cub Cadet Garden Tractor Hood, Grille And Side Panels Parts Diagram

Garden Tractor

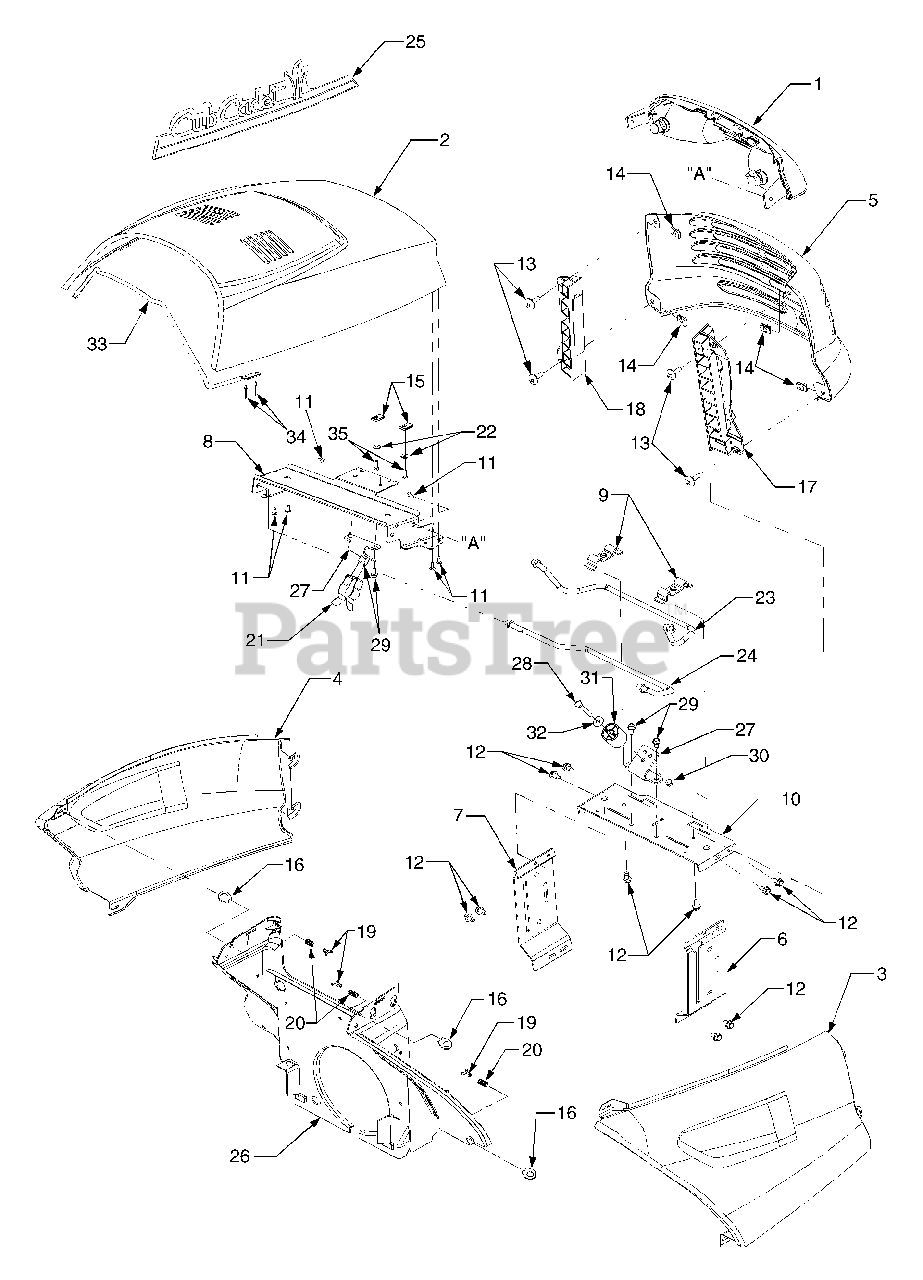

Hood, Grille And Side Panels Parts Diagram

  • Title
1

Cub Cadet 625-04001A

Headlight Assembly
(Superseded to 925-04001A)

$147.99

$

In Stock, Qty 20+

0

1

Cub Cadet 725-0963

Bulb, Headlight
(Superseded to 925-0963)

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

Cub Cadet 725-1649

Socket Assembly, Headlight
(Superseded to 925-1649A)

Note: Not shown

$10.99

$

In Stock, Qty 20+

0

$251.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2946-0499

Side Panel, RH

$320.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777D08868

Graphic, GT 3100

Note: Not shown

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 777X41482

Graphic, Lift Hood

Note: Not shown

$

$

Not available

3

Cub Cadet 777X40079

Strip, Protective

Note: Not shown

$

$

Not available

4

Cub Cadet 703-2947-0499

Side Panel, LH

$

$

Not available

4

Cub Cadet 777D08868

Graphic, GT 3100

Note: Not shown

$18.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 777X41482

Graphic, Lift Hood

Note: Not shown

$

$

Not available

4

Cub Cadet 777X40079

Strip, Protective

Note: Not shown

$

$

Not available

5

Cub Cadet 703-2950-0499

Grille, Series 3000

$163.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 777I20314

Graphic, Warning

Note: Not shown

$

$

Not available

6

Cub Cadet 703-2984-0716

Support, Grille - RH - Cub Yellow

$

$

Not available

6

Cub Cadet 703-2984-0637

Support, Grille - RH - Black

$

$

Not available

7

Cub Cadet 703-2985-0716

Support, Grille - LH - Cub Yellow

$

$

Not available

7

Cub Cadet 703-2985-0637

Support, Grille - LH - Black

$

$

Not available

8

Cub Cadet 703-3070B-0499

Bracket, Upper Hood

$

$

Not available

8

Cub Cadet 777S30538

Graphic, Hot Surface

Note: Not shown

$

$

Not available

9

Cub Cadet 703-3071

Bracket, Rod Retainer

$

$

Not available

10

Cub Cadet 703-3101B-0716

Support, Hood - Cub Yellow

$

$

Not available

10

Cub Cadet 703-3101B-0637

Support, Hood - Black

$

$

Not available

11

Cub Cadet 710-0351

Screw,Truss Hd, Tapp, #10-16 x .5

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0924

Screw, Phil. Pan Hd. 1/4-20 x 75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-3054

Nut, U Type Speed, 1/4-20

$4.49

$

In Stock, Qty 5

0

15

Cub Cadet 726-0139

Nut, U-type Speed, #10

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet 726-3056

Latch, 1/4 Turn

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 731-3227

Mount, Side Panel/Grille RH

$

$

Not available

18

Cub Cadet 731-3228

Mount, Side Panel/Grille LH

$

$

Not available

19

Cub Cadet 732-0936

Clip, Spring
(Superseded to 726-05561)

$32.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-0937

Spring, Compression

$7.99

$

In Stock, only 2 left!

0

21

Cub Cadet 732-1178

Spring, Hood Latch

$26.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0400

Washer, Flat, .194 x .62 x .063

$4.99

$

In Stock, Qty 16

0

23

Cub Cadet 747-3478

Rod, Upper Hood

$

$

Not available

24

Cub Cadet 747-3338

Rod, Lower Hood

$

$

Not available

25

Cub Cadet 777D07681

Graphic, Hood - RH 2008 & Before

$

$

Not available

25

Cub Cadet 777D09725

Graphic, Hood - RH 2009 & After

$

$

Not available

25

Cub Cadet 777D07682

Graphic, Hood - LH 2008 & Before

$

$

Not available

25

Cub Cadet 777D09724

Graphic, Hood - LH 2009 & After

$

$

Not available

26

Cub Cadet 731-3221A

Baffle, Lower Air

$98.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 703-4088-0637

Bracket, Hood Latch Support

$

$

Not available

28

Cub Cadet 710-0136

Screw, Hex Cap, 1/4-20 x 1.75 GR5

$3.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-1005

Screw, Hex Wash Hd Tapp, 1/4-14 x 5
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3051

Nut, Hex Top Lock, 1/4-20

$

$

Not available

31

Cub Cadet 731-3232

Roller, Hood Latch

$8.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0342

Washer, Flat, .283 x .75 x .030

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 747-04085

Rod, Hood Support

$

$

Not available

34

Cub Cadet 728-0117

Rivet, Pop, .125 OD

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0436

Screw, Hex Tapp, #10-16 x .625
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0
