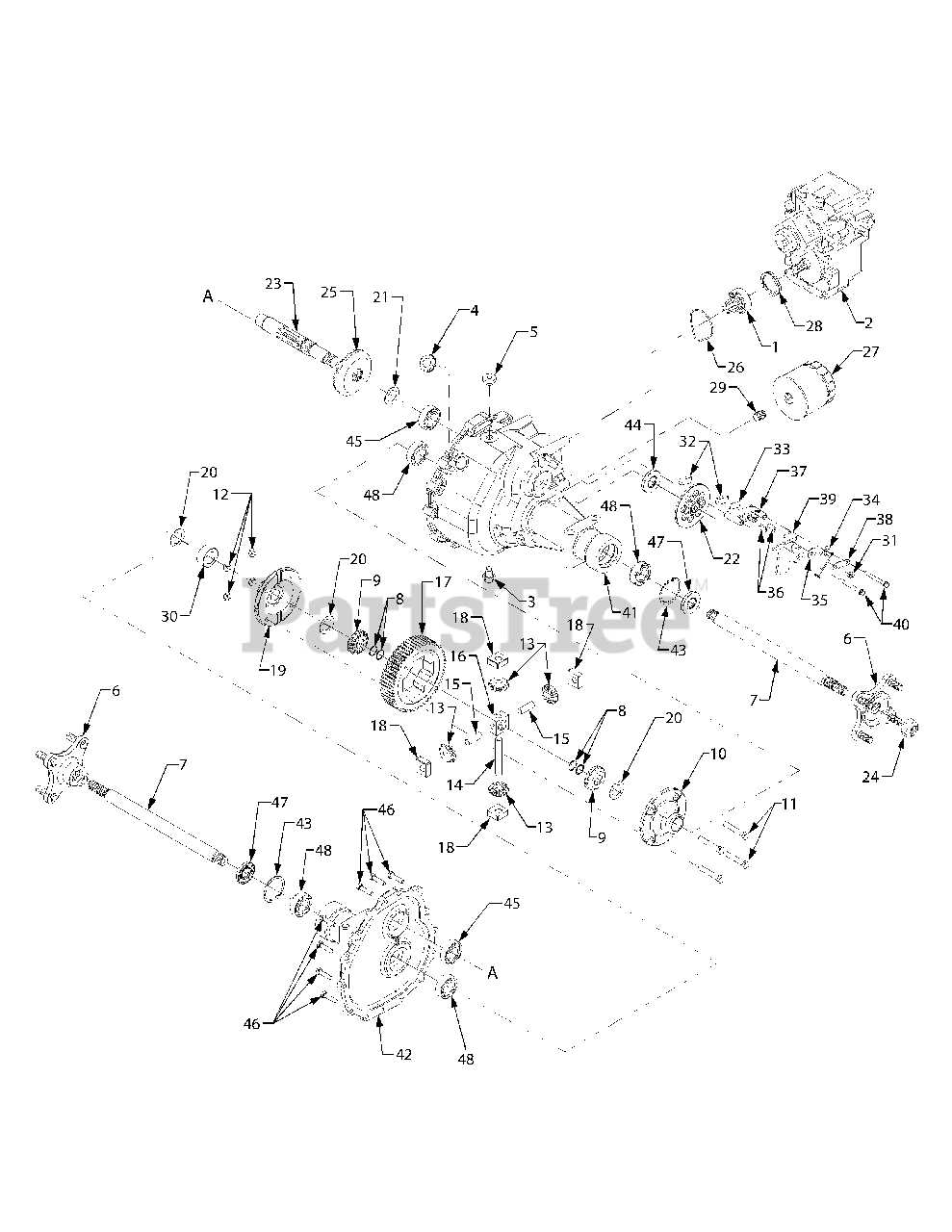

GT 3100 (14B-671-710) - Cub Cadet Garden Tractor Transmission - Differential 2009 & After Parts Diagram

Garden Tractor

Transmission - Differential 2009 & After Parts Diagram

  • Title

1

Cub Cadet 617-3001

Gear Assembly, Pinion 13T

$305.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 941-3037

Bearing, Ball

$44.99

$

In Stock, Qty 14

0

2

Cub Cadet 918-3214

Hydrostatic Transmission Assy.

Note: NOTE: For components see separate parts beakdown.

$2345.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1633

Plug, Drain, M14 x 1.5 x .827

$15.99

$

In Stock, only 1 left!

0

4

Cub Cadet 735-0277A

Grommet, Rubber

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 735-0279

Grommet

$7.99

$

In Stock, only 2 left!

0

6

Cub Cadet 618-3210A

Hub Assembly, Wheel

$152.99

$

In Stock, only 1 left!

0

7

Cub Cadet 911-1308

Axle Shaft, 1.181 x 15.08

$212.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 916-0172

Retaining Ring

$8.99

$

In Stock, only 3 left!

0

9

Cub Cadet 717-1119

Gear, Spur, 14T

$47.99

$

In Stock, only 3 left!

0

10

Cub Cadet 619-3086

Housing, Diff. Cover RH

$82.99

$

In Stock, only 3 left!

0

11

Cub Cadet 710-0331

Hex Cap Screw, 3/8-24 x 2.25 GR5

$7.49

$

In Stock, Qty 5

0

12

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24

$4.49

$

In Stock, Qty 19

0

13

Cub Cadet 717-1120

Gear, Differential 10T

$34.99

$

In Stock, only 4 left!

0

14

Cub Cadet 717-1173

Shaft, Cross, .5 x 3.485

$41.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 717-1178

Shaft, Cross, Special

$30.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-1180

Differential Pinion Block

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 717-3466

Gear, Spur 60T

$296.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 718-3101

Block, Thrust Miter

$13.99

$

In Stock, only 2 left!

0

19

Cub Cadet 719-3142

Housing, Differential Cover LH

$

$

Not available

20

Cub Cadet 736-0558

Washer, Flat, 1.187 x 1.56 x .062

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0615

Washer, Flat, 1.0 x 1.56 x .030

$9.49

$

In Stock, only 1 left!

0

22

Cub Cadet 761-0215

Disc, Brake

$22.99

$

In Stock, Qty 6

0

23

Cub Cadet 711-1385A

Shaft, Output 9T

$191.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-0682

Nut, Lock, 7/8-14

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 717-3449

Gear, Bevel 54T

$452.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 721-0519

Seal, Gland O-Ring

$37.99

$

In Stock, only 2 left!

0

27

Cub Cadet 923-3014

Filter, Oil

$21.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0619

Washer, Spring

$19.99

$

In Stock, Qty 5

0

29

Cub Cadet 937-3022

Fitting, Filter Nipple

$16.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 750-3238

Spacer, Axle, 1.188 x 1.665 x .67

$

$

Not available

31

Cub Cadet 912-0273

Nut, Hex Insert Lock, 5/16-24

$4.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 917-0678

Pad, Brake

$7.99

$

In Stock, Qty 20+

0

33

Cub Cadet 917-0682

Plate, Puck

$10.99

$

In Stock, Qty 16

0

34

Cub Cadet 732-0925

Spring, Torsion

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0371

Washer, Flat, .343 x .88 x .062

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet 941-0343

Pin, Brake Actuator
(Superseded to 741-0343)

$

$

Not available

37

Cub Cadet 761-0207A

Yoke, Brake

$42.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 761-0208

Bracket, Brake Anti-Rotation .

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 761-3074

Arm, Brake Actuator

$26.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-1206

Screw, Hex Wash. Hd. Tapp 1/4-20 x 2.375

$7.49

$

In Stock, only 2 left!

0

41

Cub Cadet 919-3066A

Housing, RH

$1034.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 619-3067

Housing, LH

$

$

Not available

43

Cub Cadet 716-0180

Retaining, Ring

$12.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 721-0523

Seal, Oil, 1.0 ID

$16.99

$

In Stock, Qty 9

0

45

Cub Cadet 741-3114

Bearing, Ball

$27.99

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0573

Screw, Hex Cap Locking .5/16-18 x 1.25 GR5

$6.99

$

In Stock, only 4 left!

0

47

Cub Cadet 921-3020A

Seal, Oil, 1.18 ID

$12.99

$

In Stock, Qty 20+

0

48

Cub Cadet 941-3033A

Bearing, Ball

$57.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3958

Sealant, Loctite Black, 5.3 oz. Tube

Note: Not shown

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

Note: Not shown

$23.99

$

In Stock, Qty 13

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

Note: Not shown

$81.99

$

In Stock, Qty 15

0

Cub Cadet 918-04779

Transmission Assembly Complete

Note: DOES NOT include Ref. Nos. 1, 2, 6, 24, 26-29

$

$

Not available

Cub Cadet 921-04019

Plug, Oil

Note: Not shown

$9.99

$

Usually ships in 3-6 days

0
