GT 32 - Jonsered String Trimmer (1992-03) SHAFT HANDLE Parts Diagram

String Trimmer

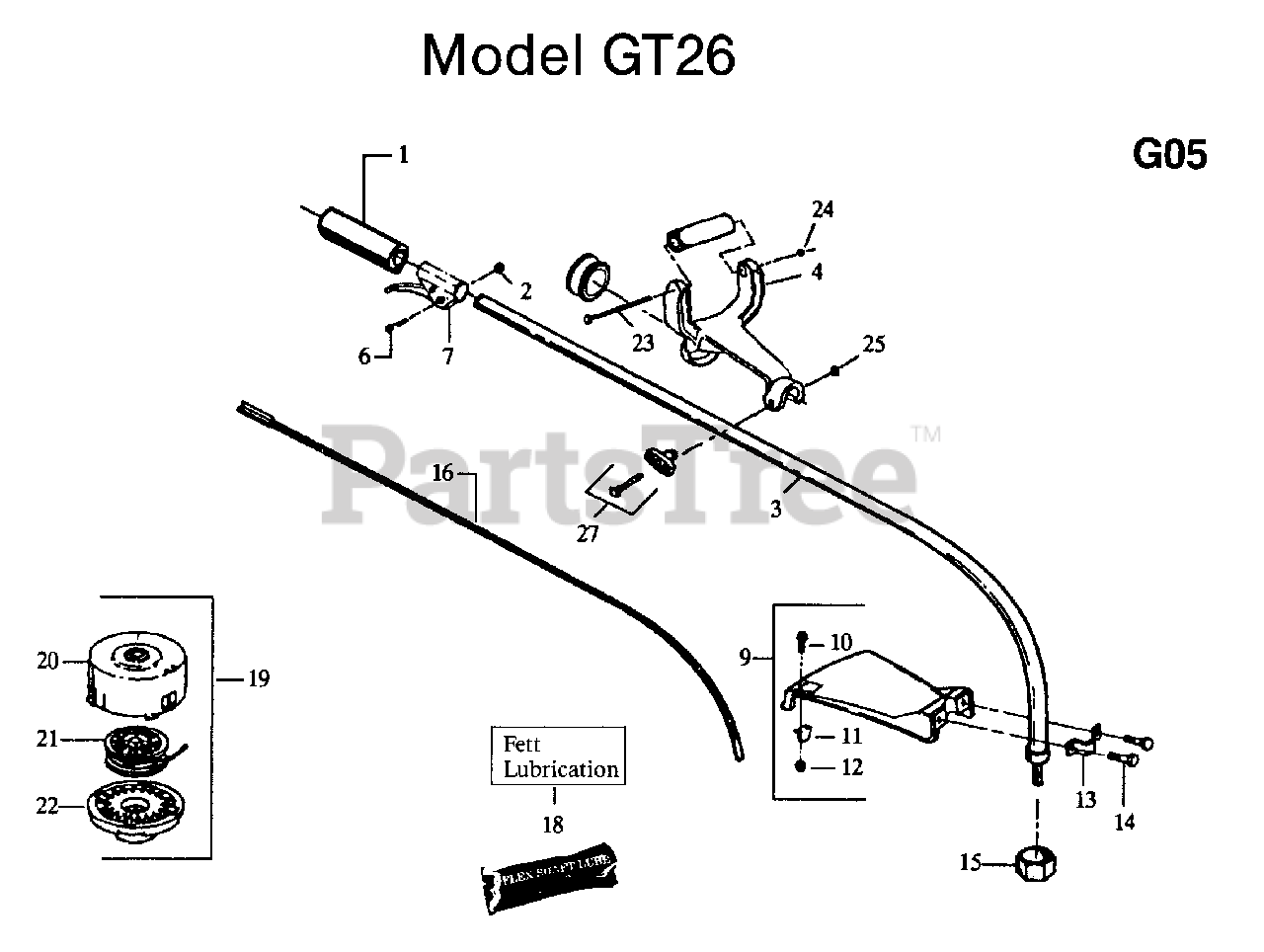

SHAFT HANDLE Parts Diagram

  • Title

1

Jonsered 530027595

GRIP-DRIVE SHAFT
(Superseded to 530029445)

$2.99

$

Usually ships in 3-10 days

0

2

Jonsered 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

3

Jonsered 530094891

ASSY-DRIVE SHAFT HSG
(Superseded to 530071371)

$

$

Not available

4

Jonsered 530010958

ASS'Y-HANDLE ANTIVIB

$

$

Not available

6

Jonsered 530015774

SCREW-10-24 X 1" (UNC)

$6.49

$

In Stock, only 3 left!

0

7

Jonsered 530010959

ASSY-THROTTLE HOUSING

$

$

Not available

9

Jonsered 530069249

KIT-SHIELD (SERVICE) BLACK

$

$

Not available

10

Jonsered 530015037

SCREW

$2.49

$

Usually ships in 3-10 days

0

11

Jonsered 530094570

LIMITER-LINE

$3.99

$

In Stock, only 2 left!

0

12

Jonsered 530015653

LOCKNUT-(10-24)
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 530093653

BRACKET-SHIELD

$3.99

$

In Stock, only 1 left!

0

14

Jonsered 530092243

SCREW-1/4-10X1-1/8 HEX
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

15

Jonsered 530094543

DUST CUP

$

$

Not available

16

Jonsered 530094551

SHAFT-FLEX (48")

$

$

Not available

18

Jonsered 530030102

GREASE-1/2 FL. OZ.
(Superseded to 952708514)

$

$

Not available

19

Jonsered 952715530

No Description Available

$

$

Not available

20

Jonsered 530094620

ASSY-HUB, SHAFT & BAL A NLA

$

$

Not available

21

Jonsered 952715533

No Description Available

$

$

Not available

22

Jonsered 530094494

COVER

$

$

Not available

23

Jonsered 530015784

SCREW-12-24 X 4-11/16 P

$1.99

$

Usually ships in 3-10 days

0

24

Jonsered 530015785

NUT-12-24 (HEX)

$1.49

$

Usually ships in 3-10 days

0

25

Jonsered 530015197

NUT

$6.49

$

In Stock, Qty 5

0

27

Jonsered 530069252

KIT "T" HANDLE
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0
