GT 3204 (14A-671-710) - Cub Cadet Garden Tractor Cylinder Head, Valves And Breather Parts Diagram

Garden Tractor

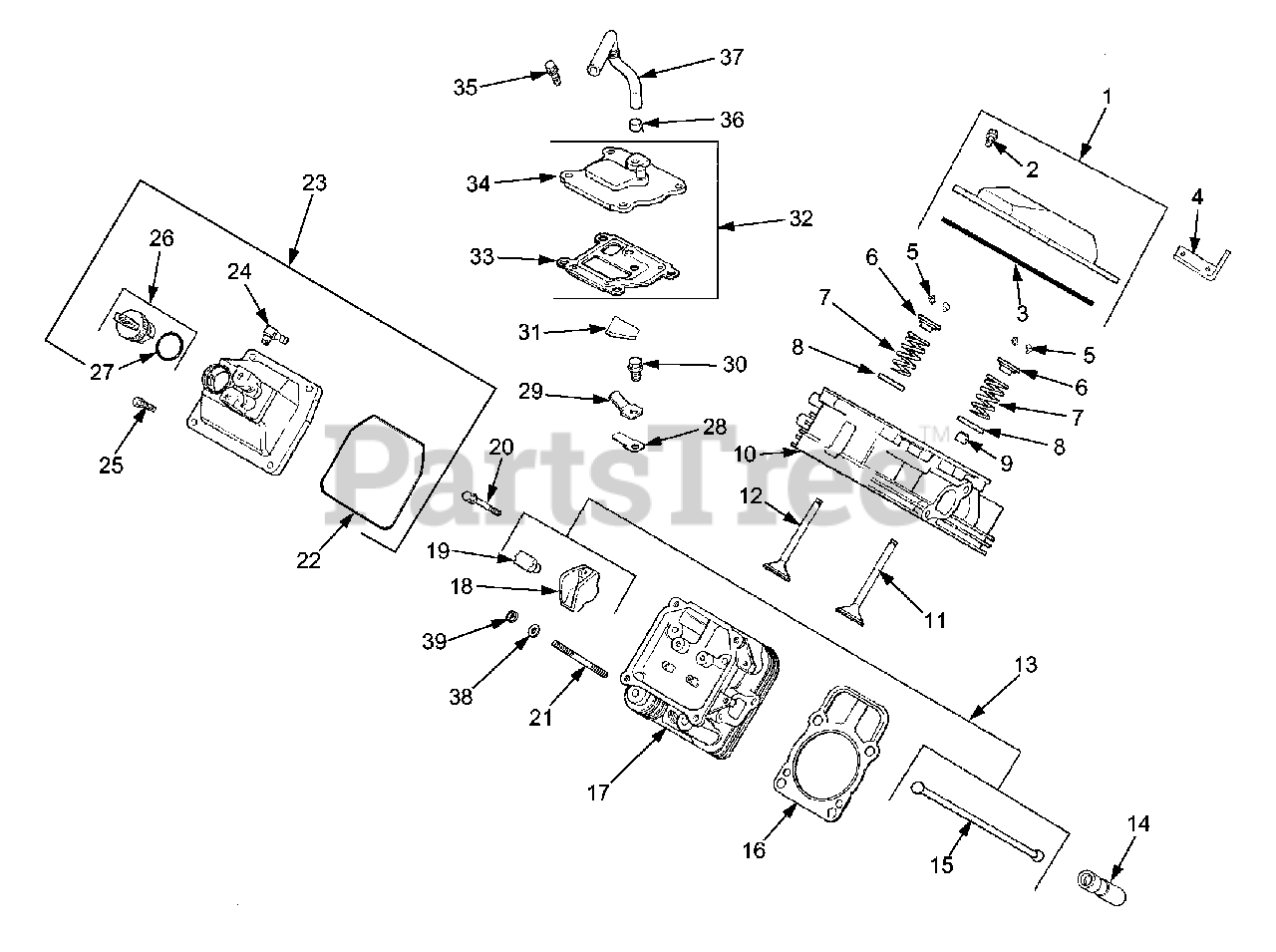

Cylinder Head, Valves And Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-74

Kit, Valve Cover
(Superseded to KH-24-755-141-S)

Note: (Includes 2-3)

$35.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-24-086-32

Screw, Shoulder

$

$

Not available

3

Cub Cadet KH-24-153-23-S

O-Ring, Valve Cover

$17.99

$

In Stock, Qty 7

0

4

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 9

0

7

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

8

Cub Cadet KH-235011

Retainer, Spring
(Superseded to KH-235011-S)

$6.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-318-68-S

Head Assembly, #1 Cylinder
(Superseded to KH-24-318-202-S)

$266.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-24-017-01

Valve, Intake (Std.)

$

$

Not available

Cub Cadet KH-24-017-02

Valve, Intake (.25mm)

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, Exhaust (Std.)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 19

0

Cub Cadet KH-24-016-02

Valve, Exhaust (.25mm)

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, Valve Train

Note: (Includes 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$22.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

16

Cub Cadet KH-24-841-02-S

Gasket, Kit, Cylinder Head

$45.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-318-70-S

Head Assembly, #2 Cylinder
(Superseded to KH-24-318-195-S)

$

$

Not available

18

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

19

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 12

0

20

Cub Cadet KH-M-0640034

Screw, Hex Flange M6 x 1 x 34

$

$

Not available

21

Cub Cadet KH-24-072-09-S

Stud, Cyl. Hd.

$5.99

$

In Stock, Qty 20+

0

22

Cub Cadet KH-24-153-23-S

O-Ring, Valve Cover

$17.99

$

In Stock, Qty 7

0

23

Cub Cadet KH-24-559-03-S

Cover Kit, Fuel Pump Valve
(Superseded to KH-24-559-10-S)

Note: (Includes 22, 24, 26, 27)

$168.99

$

In Stock, Qty 10

0

24

Cub Cadet KH-25-155-02

Connector 90°

$

$

Not available

25

Cub Cadet KH-24-086-34

Screw, Shoulder

$

$

Not available

26

Cub Cadet KH-24-227-02

Cap Assembly, Oil Fill
(Superseded to KH-24-227-02-S)

Note: (Includes 27)

$7.49

$

In Stock, Qty 7

0

27

Cub Cadet KH-24-153-09

O-Ring
(Superseded to KH-24-153-32-S)

$2.49

$

In Stock, Qty 9

0

28

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

29

Cub Cadet KH-66-018-04-S

Retainer, Breather Reed

$4.99

$

In Stock, Qty 9

0

30

Cub Cadet KH-M-0545010

Screw, Hex Flange M5 x 0.8 x 10

$

$

Not available

31

Cub Cadet KH-24-050-01

Filter, Breather
(Superseded to KH-24-050-11-S)

$2.49

$

In Stock, Qty 19

0

32

Cub Cadet KH-24-033-01

Kit, Breather

Note: (Includes 31-33)

$

$

Not available

33

Cub Cadet KH-24-041-50-S

Gasket, Breather
(Superseded to KH-24-041-67-S)

$12.99

$

In Stock, Qty 20+

0

34

Cub Cadet KH-24-096-86-S

Cover, Breather
(Superseded to KH-24-033-01)

$

$

Not available

35

Cub Cadet KH-M-645020

Screw, Hex Flange M6 x 1.0 x 20

$

$

Currently unavailable

36

Cub Cadet KH-25-237-14-S

Clamp, Breather
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

37

Cub Cadet KH-24-326-26

Hose, Breather
(Superseded to KH-24-326-89-S)

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet KH-24-468-16-S

Washer, Flat, 8mm

$2.49

$

Usually ships in 2-5 days

0

39

Cub Cadet KH-24-100-10-S

Nut, Hex Flange, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0
