GT 3204 (14A-671-710) - Cub Cadet Garden Tractor Dash Panel Parts Diagram

Garden Tractor

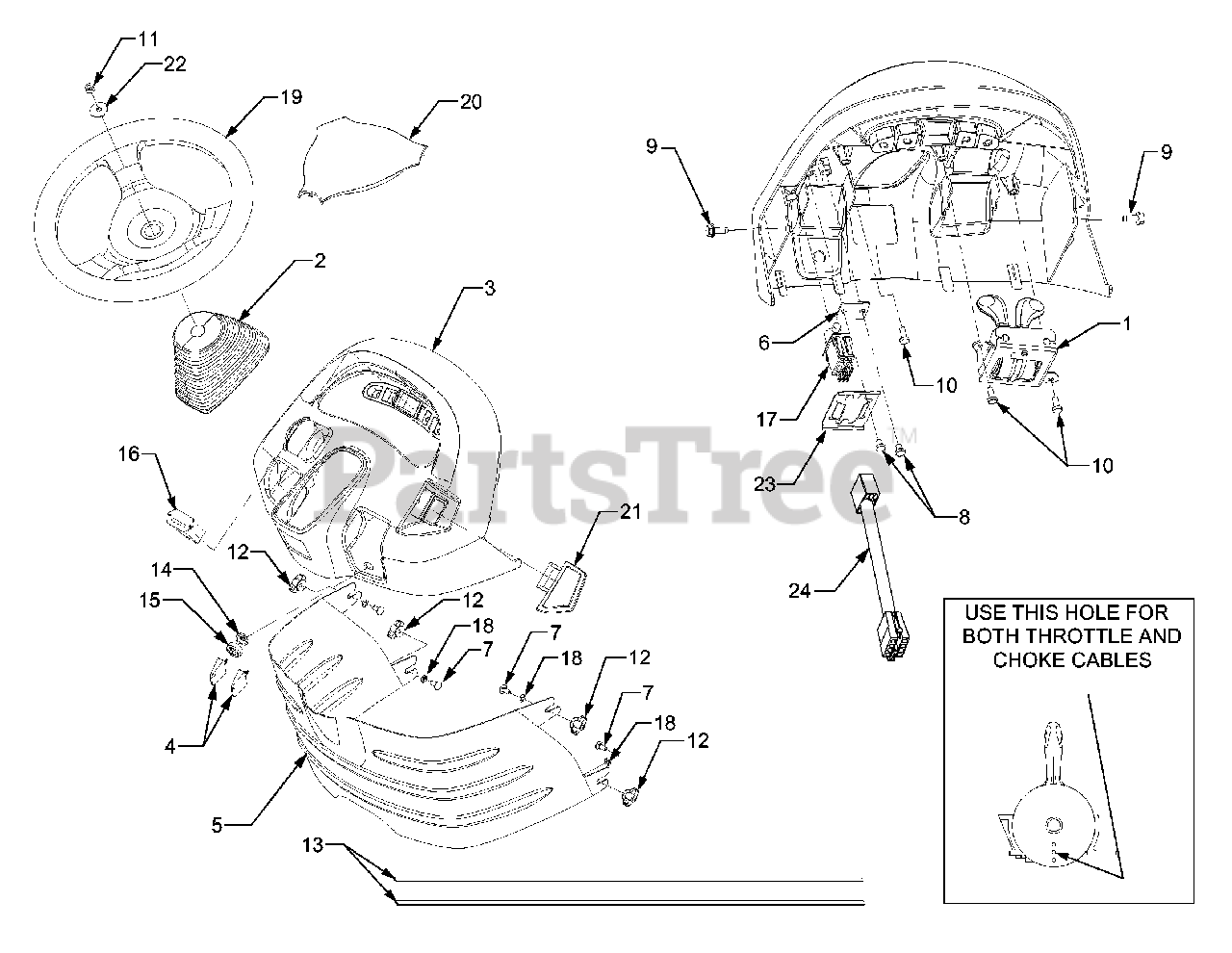

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 603-0586

Control Assembly, Throttle/Choke

$127.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-0076

Boot, Tilt Steer

$

$

Not available

3

Cub Cadet 631-3014A

Dash Panel
(Superseded to 931-3014A)

$

$

Not available

Cub Cadet 777I20183

Graphic, Monitor Light Cover

$17.99

$

In Stock, Qty 5

0

4

Cub Cadet 759-3476A

Key, Ignition (Set of 2)
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

5

Cub Cadet 703-3072

Screen, Dash

Variations

Cub Cadet 703-3072-0637

USE 703-3072 SCREEN-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-3162

Plate, PTO Handle

$

$

Not available

7

Cub Cadet 710-0134

Carriage Bolt, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0294

Screw, Hex Cap 1/4-20 x .375 GR5

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3013

Screw, Hex Cap 1/4-20 x .50 GR5

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, Qty 7

0

12

Cub Cadet 712-0397

Wing Nut, 1/4-20 w/Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 731-0511-37

Seal, Screen Cut to fit screen

$48.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

15

Cub Cadet 725-1347

Cap, Ignition Switch

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

17

Cub Cadet 725-3256

Switch, PTO
(Superseded to 925-3256A)

$70.99

$

In Stock, Qty 13

0

18

Cub Cadet 726-0233

Nut, Push

$3.99

$

In Stock, only 2 left!

0

19

Cub Cadet 731-3209

Steering Wheel

$

$

Not available

20

Cub Cadet 731-3210

Cover, Steering Wheel
(Superseded to 731-06459)

$19.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-3241

Handle, PTO Switch

$29.99

$

In Stock, only 1 left!

0

22

Cub Cadet 736-04062

Washer, Flat, .34 x 1.5 x .10
(Superseded to 936-04062)

$

$

Not available

23

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$7.99

$

In Stock, only 3 left!

0

24

Cub Cadet 629-3079

Harness, PTO Adapter
(Superseded to 929-3079)

$39.99

$

In Stock, only 1 left!

0
