GT 35 B (UT-26056) - Green Machine String Trimmer

String Trimmer

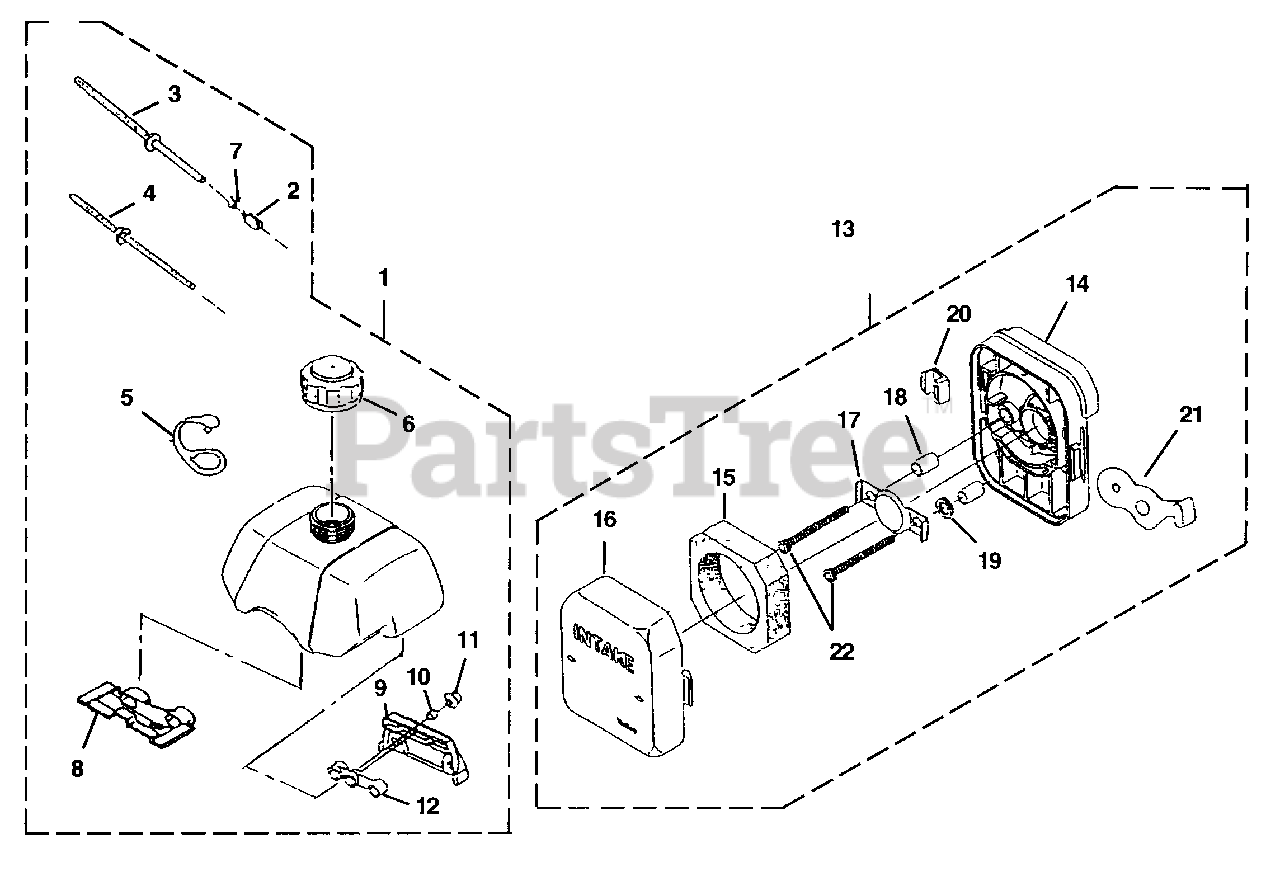

GT 35 B (UT-26056) - Green Machine String Trimmer > Parts Diagrams (9) > Air Filter - Fuel Tank

  • Title
UP05446

1

FUEL TANK ASSEMBLY

Part# UP05446

OEM Warranty Repair Part for Homelite

Not available

PS00520

2

FILTER-Fuel

Part# PS00520

OEM Warranty Repair Part for Homelite

Currently unavailable

PS03052

3

TUBE

Part# PS03052

OEM Warranty Repair Part for Homelite

Not available

PS03053

4

TUBE

Part# PS03053

OEM Warranty Repair Part for Homelite

Not available

PS00522

5

CAP- Retainer

Part# PS00522 (Superseded to UP02946)

OEM Warranty Repair Part for Homelite

Not available

PS03054

6

CAP - Fuel

Part# PS03054 (Superseded to UP02946)

OEM Warranty Repair Part for Homelite

Not available

PS00833

7

HOSE CLAMP

Part# PS00833

OEM Warranty Repair Part for Homelite

Not available

PS03055

8

BUMPER, Fuel Tank

Part# PS03055

OEM Warranty Repair Part for Homelite

Not available

PS03057

9

BRACKET - Fuel Tank

Part# PS03057

OEM Warranty Repair Part for Homelite

Not available

PS03058

10

SPACER

Part# PS03058

OEM Warranty Repair Part for Homelite

Not available

PS03059

11

BOLT (M5 X 14W)

Part# PS03059

Note: Torque Specs 11 - 15 In/Lbs, 1.2 - 1.7 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03056

12

BUMPER-Fuel Tank

Part# PS03056

OEM Warranty Repair Part for Homelite

Not available

UP05441

13

AIR FILTER ASSEMBLY

Part# UP05441

OEM Warranty Repair Part for Homelite

Not available

PS03033

14

BODY-Air Filter

Part# PS03033

OEM Warranty Repair Part for Homelite

Not available

PS03041

15

FILTER-Air

Part# PS03041

OEM Warranty Repair Part for Homelite

Not available

PS03042

16

COVER-Air Filter

Part# PS03042

OEM Warranty Repair Part for Homelite

Not available

PS03038

17

PLATE-Air Filter

Part# PS03038

OEM Warranty Repair Part for Homelite

Not available

PS03035

18

SLEEVE

Part# PS03035

OEM Warranty Repair Part for Homelite

Not available

PS03037

19

WASHER

Part# PS03037

OEM Warranty Repair Part for Homelite

Not available

PS03039

20

CLIP-Filter Cover

Part# PS03039

OEM Warranty Repair Part for Homelite

Not available

PS03036

21

VALVE, CHOKE

Part# PS03036

OEM Warranty Repair Part for Homelite

Not available

PS03043

22

SCREW-Socket Hd (M5 X 50)

Part# PS03043

Note: Torque Specs 19 - 25 In/Lbs, 2.1 - 2.8 Nm

OEM Warranty Repair Part for Homelite

Not available
