GT 35 B (UT-26056) - Green Machine String Trimmer

String Trimmer

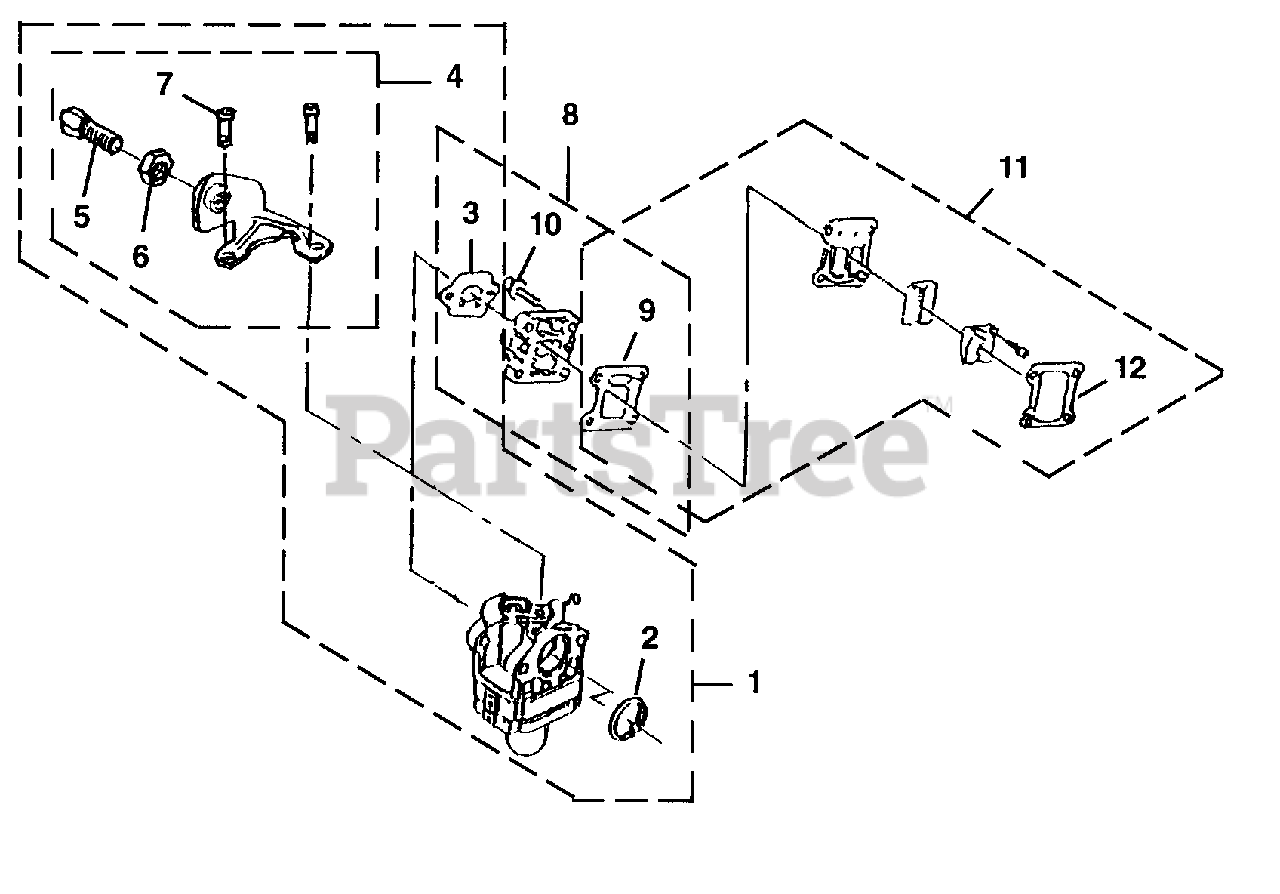

GT 35 B (UT-26056) - Green Machine String Trimmer > Parts Diagrams (9) > Carburetor - Heat Dam - Reed Valve

  • Title
UP05439

1

CARBURETOR ASSY

Part# UP05439

OEM Warranty Repair Part for Homelite

Not available

PS00541

2

RING-Packing

Part# PS00541

OEM Warranty Repair Part for Homelite

Not available

PS03028

3

GASKET-Carburetor

Part# PS03028

OEM Warranty Repair Part for Homelite

Not available

UP00485

4

CABLE BRACKET

Part# UP00485

OEM Warranty Repair Part for Homelite

Not available

PS00611

5

SCREW-Cable Adjust

Part# PS00611

OEM Warranty Repair Part for Homelite

Not available

PS00544

6

NUT-Cable Adjust

Part# PS00544

OEM Warranty Repair Part for Homelite

Not available

PS00542

7

SCREW-Throttle Collar

Part# PS00542

Note: Torque Specs 48 - 56 In/Lbs, 5.4 - 6.3 Nm

OEM Warranty Repair Part for Homelite

Not available

UP05438

8

HEAT DAM ASSEMBLY

Part# UP05438

OEM Warranty Repair Part for Homelite

Not available

PS03028

3

GASKET-Carburetor

Part# PS03028

OEM Warranty Repair Part for Homelite

Not available

PS00764

9

GASKET-Heat Dam

Part# PS00764

Note: Torque Specs 33 - 37 In/Lbs, 3.7 - 4.2 Nm. Red 262 Loctite Required

OEM Warranty Repair Part for Homelite

Not available

PS00583

10

SCREW-Socket Hd (M5 x 20)

Part# PS00583

OEM Warranty Repair Part for Homelite

Not available

UP05437

11

REED VALVE ASSY

Part# UP05437

OEM Warranty Repair Part for Homelite

Not available

PS00765

9

GASKET-Heat Dam

Part# PS00765

OEM Warranty Repair Part for Homelite

Not available

PS00766

12

GASKET-Reed Valve

Part# PS00766

OEM Warranty Repair Part for Homelite

Not available
