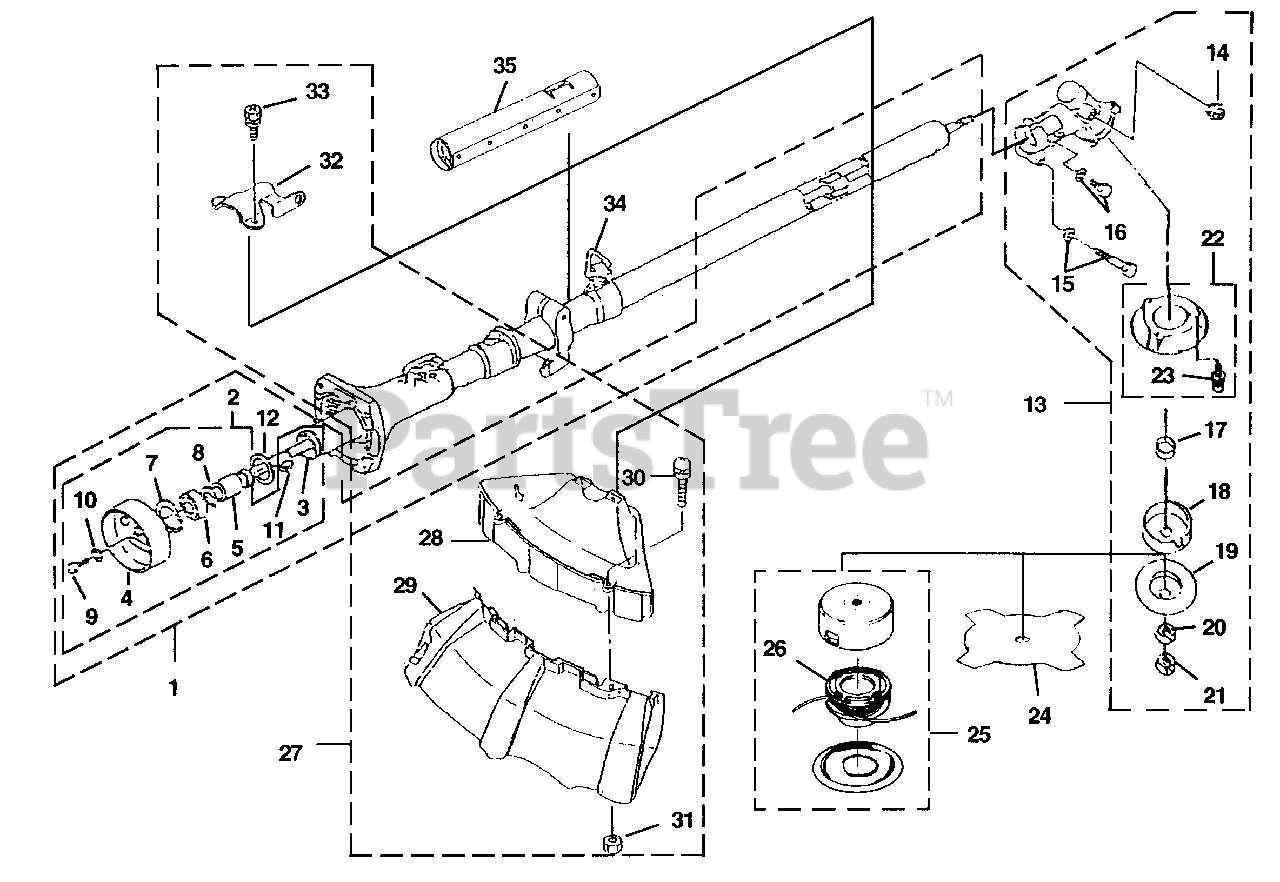

GT 35 B (UT-26056) - Green Machine String Trimmer > Parts Diagrams (9) > Deflector - Guard - Driveshaft - Stringhead

  • Title
UP05456

1

DRIVESHAFT HSG

Part# UP05456

OEM Warranty Repair Part for Homelite

Not available

UP05455

2

DRIVESHAFT ASSY

Part# UP05455

OEM Warranty Repair Part for Homelite

Not available

PS03098

3

DRIVESHAFT

Part# PS03098

OEM Warranty Repair Part for Homelite

Not available

PS03099

4

CLUTCH DRUM

Part# PS03099

OEM Warranty Repair Part for Homelite

Not available

PS03100

5

DAMPER

Part# PS03100

OEM Warranty Repair Part for Homelite

Not available

PS03101

6

BEARING, BALL

Part# PS03101

OEM Warranty Repair Part for Homelite

Not available

PS03102

7

SNAPPING - Inner

Part# PS03102

OEM Warranty Repair Part for Homelite

Not available

PS03103

8

SNAPPING - Outer

Part# PS03103

OEM Warranty Repair Part for Homelite

Not available

PS03079

9

BOLT

Part# PS03079

OEM Warranty Repair Part for Homelite

Not available

PS00829

10

WASHER

Part# PS00829

OEM Warranty Repair Part for Homelite

Not available

PS03106

11

SNAPPING - Outer

Part# PS03106

OEM Warranty Repair Part for Homelite

Not available

PS03107

12

WASHER

Part# PS03107

OEM Warranty Repair Part for Homelite

Not available

UP05462

13

GEARHEAD ASSEMBLY

Part# UP05462

OEM Warranty Repair Part for Homelite

Currently unavailable

PS00449

14

BOLT-Grease

Part# PS00449

Note: Torque Specs 39 - 47 In/Lbs, 4.4 - 5.3 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03131

15

BOLT (M6 X 32)

Part# PS03131

Note: Torque Specs 44 - 60 In/Lbs, 5.0 - 6.8 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03132

16

BOLT(M6 X 14)

Part# PS03132 (Superseded to PS03362)

Note: Torque Specs 44 - 60 In/Lbs, 5.0 - 6.8 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03133

17

SPACER

Part# PS03133

OEM Warranty Repair Part for Homelite

Not available

PS03134

18

WASHER - Flange

Part# PS03134

OEM Warranty Repair Part for Homelite

Not available

PS03135

19

WASHER - Clamp

Part# PS03135

OEM Warranty Repair Part for Homelite

Not available

PS03136

20

NUT

Part# PS03136

OEM Warranty Repair Part for Homelite

Not available

PS03137

21

NUT

Part# PS03137

Note: Torque Specs 149 - 165 In/Lbs, 16.8 - 18.6 Nm

OEM Warranty Repair Part for Homelite

Not available

UP00496

22

GRASS GUARD

Part# UP00496

OEM Warranty Repair Part for Homelite

Not available

PS00554

23

SCREW-Socket Hd

Part# PS00554

Note: Torque Specs 48 - 56 In/Lbs, 5.4 - 6.3 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03161

24

BLADE - Cutter

Part# PS03161

OEM Warranty Repair Part for Homelite

Not available

UP05463

25

STRING HEAD ASSY

Part# UP05463

OEM Warranty Repair Part for Homelite

Not available

UP05465

26

SPOOL & STRING

Part# UP05465 (Superseded to UP08358)

OEM Warranty Repair Part for Homelite

Not available

UP05461

27

PROTECTOR ASSY

Part# UP05461

OEM Warranty Repair Part for Homelite

Not available

PS03123

28

PROTECTOR COMP

Part# PS03123

OEM Warranty Repair Part for Homelite

Not available

PS03124

29

PROTECTOR COMP

Part# PS03124 (Superseded to PS02685)

OEM Warranty Repair Part for Homelite

Not available

PS03125

30

SCREW ASSEMBLY

Part# PS03125 (Superseded to PS02681)

OEM Warranty Repair Part for Homelite

Not available

PS03126

31

NUT

Part# PS03126 (Superseded to PS02680)

OEM Warranty Repair Part for Homelite

Not available

PS03127

32

CLAMP, PROTECTOR

Part# PS03127

OEM Warranty Repair Part for Homelite

Not available

PS00455

33

BOLT ASSEMBLY, CROSSRECESS

Part# PS00455

Note: Torque Specs 52 - 68 In/Lbs, 5.9 - 7.7 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03109

34

HANGER ASSEMBLY

Part# PS03109

OEM Warranty Repair Part for Homelite

Not available

PS03160

35

CUSION

Part# PS03160

OEM Warranty Repair Part for Homelite

Currently unavailable
