GT 35 B (UT-26056) - Green Machine String Trimmer

String Trimmer

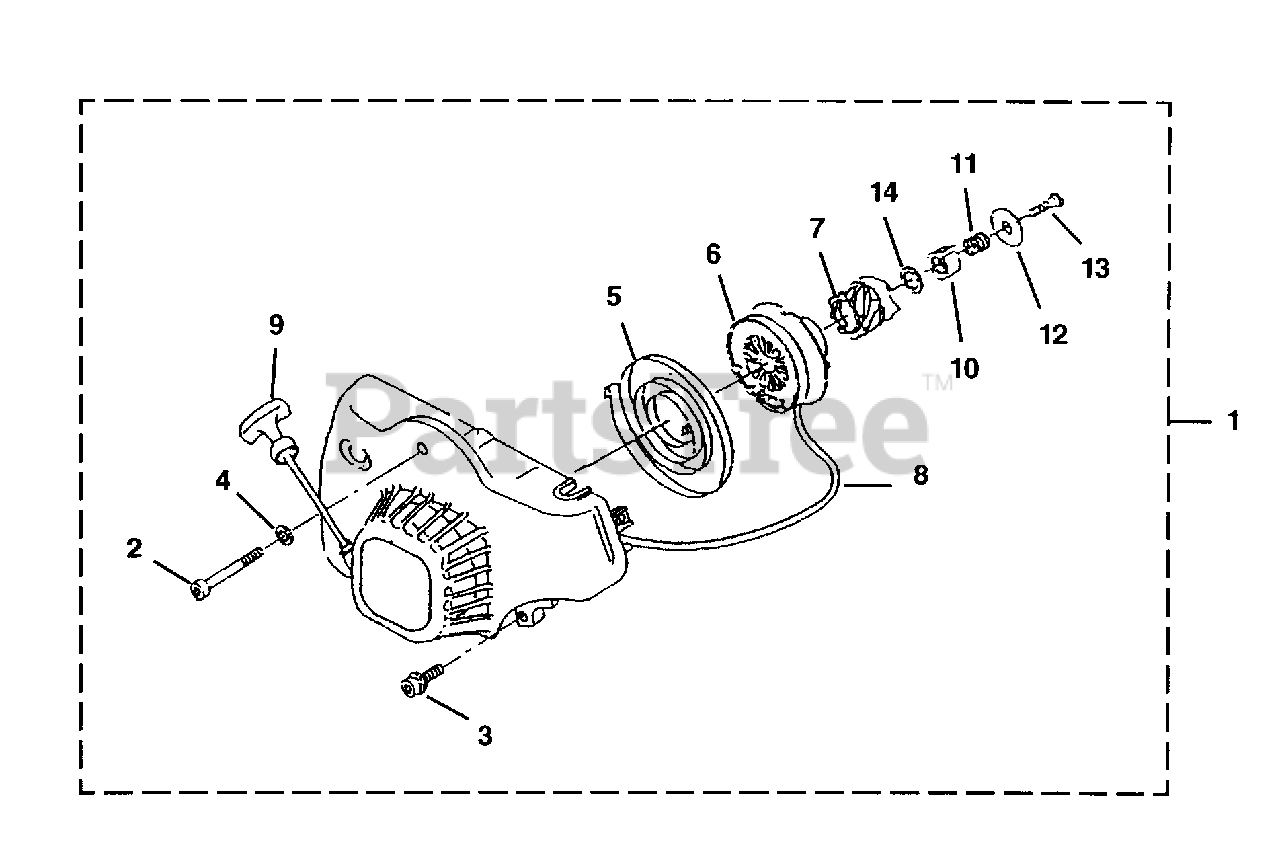

GT 35 B (UT-26056) - Green Machine String Trimmer > Parts Diagrams (9) > Starter

  • Title
UP05447

1

STARTER ASSEMBLY

Part# UP05447

OEM Warranty Repair Part for Homelite

Currently unavailable

PS03070

2

SCREW - Socket Hd (M5 X 50)

Part# PS03070

Note: Torque Specs 26 - 34 In/Lbs, 2.9 - 3.8 Nm

OEM Warranty Repair Part for Homelite

Not available

PS00764

3

SCREW - Socket Hd (M5 x 22 W)

Part# PS00764

Note: Torque Specs 26 - 34 In/Lbs, 2.9 - 3.8 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03071

4

WASHER

Part# PS03071

OEM Warranty Repair Part for Homelite

Currently unavailable

PS03062

5

SPRING

Part# PS03062

OEM Warranty Repair Part for Homelite

Not available

PS03063

6

PULLEY

Part# PS03063

OEM Warranty Repair Part for Homelite

Not available

PS03064

7

RATCHET

Part# PS03064

OEM Warranty Repair Part for Homelite

Not available

PS00711

8

ROPE - Starter

Part# PS00711

OEM Warranty Repair Part for Homelite

Not available

PS00801

9

GRIP

Part# PS00801

OEM Warranty Repair Part for Homelite

Not available

PS03066

10

RATCHET GUIDE

Part# PS03066

OEM Warranty Repair Part for Homelite

Not available

PS03067

11

SPRING - Friction

Part# PS03067

OEM Warranty Repair Part for Homelite

Not available

PS03068

12

WASHER

Part# PS03068

OEM Warranty Repair Part for Homelite

Not available

PS03069

13

SCREW

Part# PS03069

Note: Torque Specs 62 - 78 In/Lbs, 7.0 - 8.8 Nm

OEM Warranty Repair Part for Homelite

Not available

PS03065

14

THRUST WASHER

Part# PS03065

OEM Warranty Repair Part for Homelite

Not available
