GT 400 EL - Jonsered String Trimmer (1996-03) PRODUCT COMPLETE Parts Diagram

String Trimmer

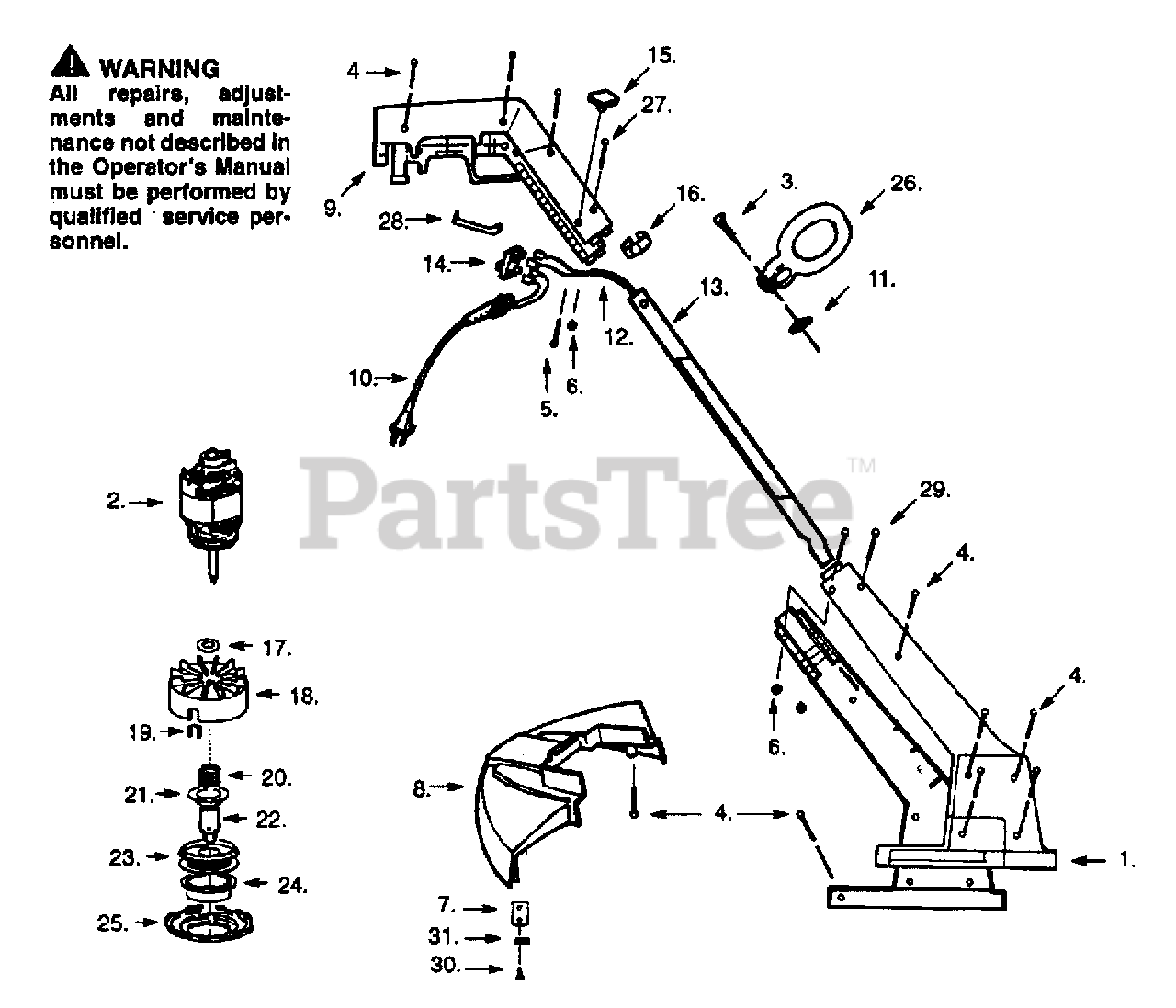

PRODUCT COMPLETE Parts Diagram

  • Title

1

Jonsered 530400611

HOUSING

$12.99

$

Usually ships in 3-10 days

0

2

Jonsered 530401339

MOTOR

$51.99

$

Usually ships in 3-10 days

0

3

Jonsered 530340228

BOLT

$1.99

$

Usually ships in 3-10 days

0

4

Jonsered 530352036

SCREW

$0.99

$

Usually ships in 3-10 days

0

5

Jonsered 530348050

SCREW, UPPER KNOB

$0.99

$

Usually ships in 3-10 days

0

6

Jonsered 534790500

LOCKNUT - LINE LIMITER

$3.49

$

In Stock, Qty 6

0

7

Jonsered 530351802

LINE LIMITER

$3.99

$

Usually ships in 3-10 days

0

8

Jonsered 530400629

SHIELD

$5.99

$

Usually ships in 3-10 days

0

9

Jonsered 530401003

HANDLE

$

$

Not available

10

Jonsered 530401401

CORD/PLUG ASSY

$26.99

$

Usually ships in 3-10 days

0

11

Jonsered 530091373

NUT-"D" HANDLE
(Superseded to 530401992)

$4.99

$

In Stock, only 1 left!

0

12

Jonsered 530402055

CABLE

$17.99

$

Usually ships in 3-10 days

0

13

Jonsered 530401280

TUBE

$3.99

$

Usually ships in 3-10 days

0

14

Jonsered 530402705

SWITCH

$5.99

$

Usually ships in 3-10 days

0

15

Jonsered 530347898

KNOB

$2.99

$

Usually ships in 3-10 days

0

16

Jonsered 530401555

SNAP BUTTON

$0.99

$

Usually ships in 3-10 days

0

17

Jonsered 530347986

WASHER

$0.99

$

Usually ships in 3-10 days

0

18

Jonsered 530400008

HUB

$

$

Not available

19

Jonsered 530340594

LINE SAVER

$1.99

$

Usually ships in 3-10 days

0

20

Jonsered 530340006

SPRING

$3.99

$

In Stock, only 1 left!

0

21

Jonsered 530340732

CAP

$1.99

$

Usually ships in 3-10 days

0

22

Jonsered 530350366

DRIVING GEAR

$4.99

$

In Stock, only 1 left!

0

23

Jonsered 952715559

No Description Available

$

$

Not available

24

Jonsered 530400009

RELEASE BUTTON

$

$

Not available

25

Jonsered 530400007

COVER

$4.99

$

Usually ships in 3-10 days

0

26

Jonsered 530322296

HANDLE

$2.99

$

Usually ships in 3-10 days

0

27

Jonsered 530400023

SCREW, UPPER

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 530351826

THROTTLE TRIGGER

$1.99

$

Usually ships in 3-10 days

0

29

Jonsered 530400024

SCREW, LOWER

$0.99

$

Usually ships in 3-10 days

0

30

Jonsered 530351800

SCREW

$3.99

$

Usually ships in 3-10 days

0

31

Jonsered 530351801

COVER

$3.99

$

Usually ships in 3-10 days

0
