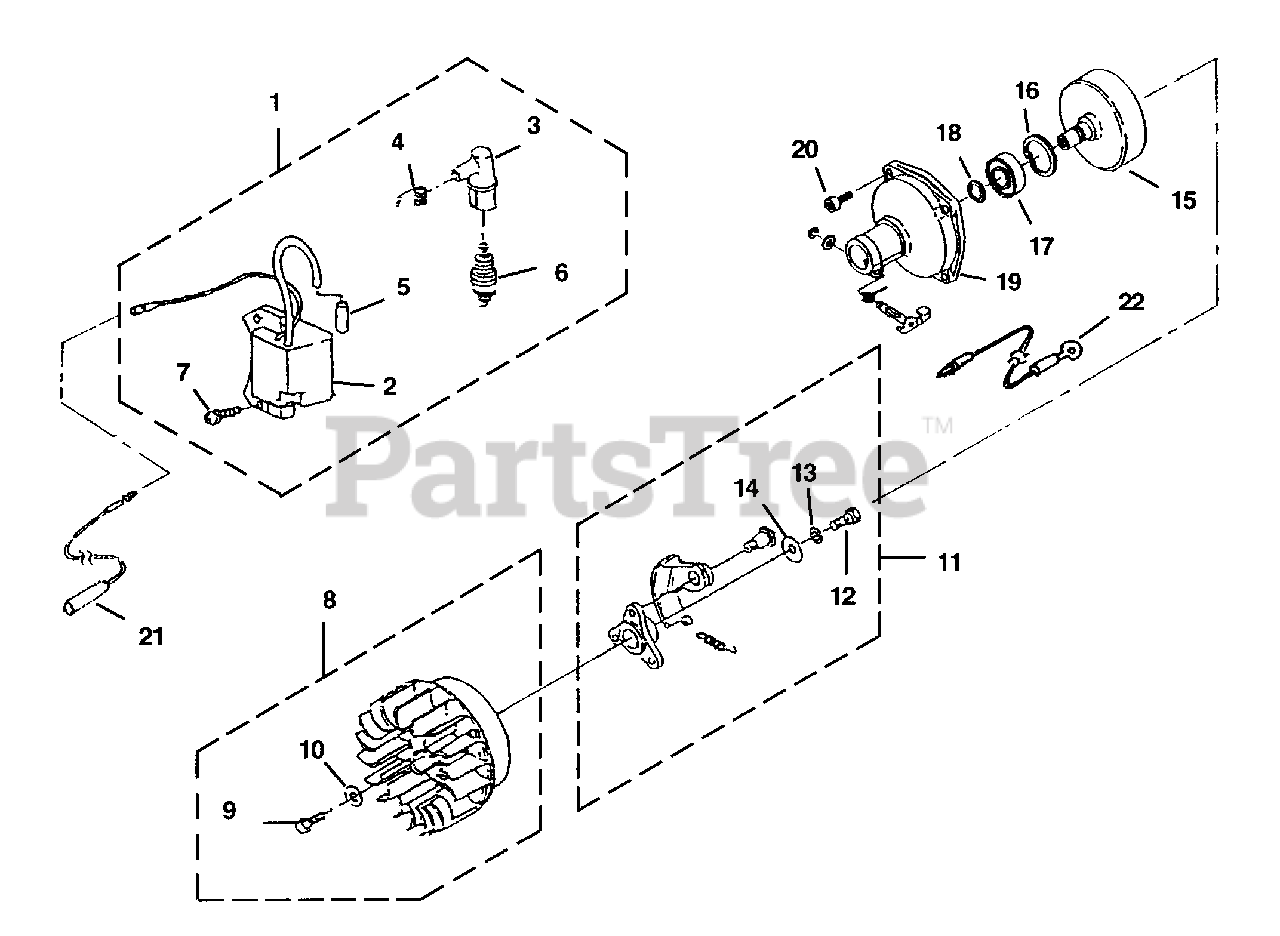

GT 41 (UT-26058) - Green Machine String Trimmer Ignition - Rotor - Clutch - Isolator Parts Diagram

String Trimmer

Ignition - Rotor - Clutch - Isolator Parts Diagram

  • Title

1

Homelite UP05442

IGNITION KIT

$

$

Not available

2

Homelite PS03044

MODULE - Ignition

$

$

Not available

3

Homelite PS03045

CAP - Plug

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite PS03048

TUBE

$

$

Not available

6

Homelite PS03050

SPARK PLUG

Note: Torque Specs: 105 - 155 In/Lbs; 11.9 - 17.5 Nm

$

$

Currently unavailable

7

Homelite PS00764

SCREW-Socket Hd (M5 x 22 W)

Note: Torque Specs: 38 - 42 In/Lbs; 4.3 - 4.7 Nm

$

$

Not available

8

Homelite UP05443

ROTOR ASSEMBLY

$

$

Not available

9

Homelite PS03049

BOLT

Note: Torque Specs: 96 - 112 In/Lbs; 10.8 - 12.7 Nm

$

$

Not available

10

Homelite PS00716

WASHER

$

$

Not available

11

Homelite UP05452

CLUTCH ASSEMBLY

$

$

Not available

12

Homelite PS03085

BOLT

Note: Torque Specs: 65 - 87 In/Lbs; 7.3 - 9.8 Nm

$

$

Currently unavailable

13

Homelite PS03094

WASHER - Spring

$

$

Currently unavailable

14

Homelite PS00829

WASHER

$

$

Not available

15

Homelite PS03175

CLUTCH DRUM

$

$

Not available

16

Homelite PS03176

SNAP RING R-35

$

$

Not available

17

Homelite PS03177

BALL BEARING #620ZZZ

$

$

Not available

18

Homelite PS03178

SNAP RING S-15

$

$

Not available

19

Homelite PS03179

CLUTCH HOUSING

$

$

Not available

20

Homelite PS03180

TORX BOLT M6 X 18

$

$

Not available

21

Homelite PS00853

WIRE

$

$

Not available

22

Homelite PS03181

WIRE

$

$

Not available
