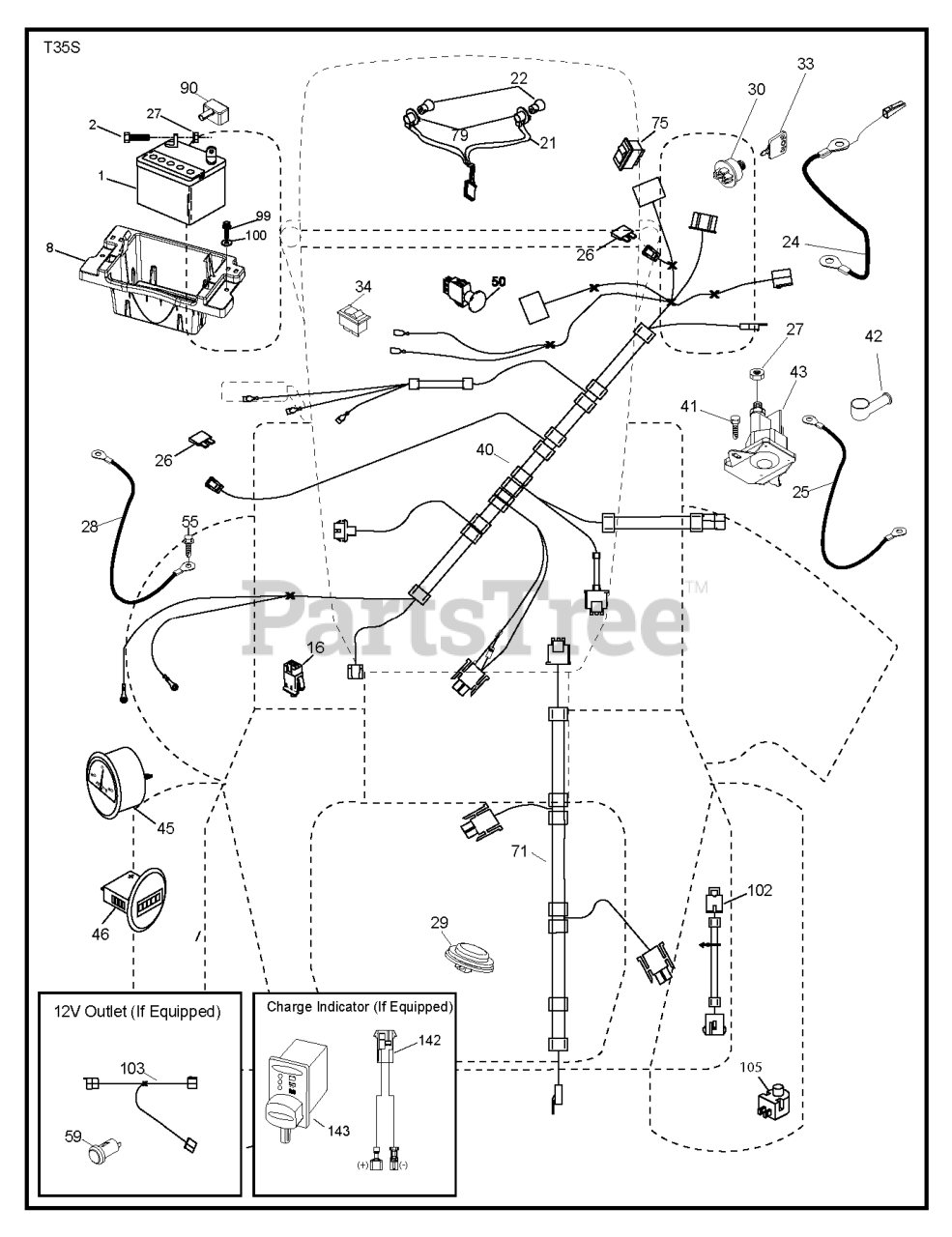

GT 48 DXLS - Husqvarna 48" Garden Tractor (Original) ELECTRICAL Parts Diagram

48" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, Qty 11

0

8

Husqvarna 532414126

TRAY.ASM.BATTERY.FRT.TEX.CARB
(Superseded to 587210601)

Note: For 96043023300 only

$71.99

$

Usually ships in 3-10 days

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$31.99

$

In Stock, Qty 20+

0

103

Husqvarna 532421747

HARNESS.PIGTAIL.12V.OUTLET.

$11.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, only 4 left!

0

24

Husqvarna 585555601

CABLE.FRBATT.W/WIRE.8GA.8

$9.49

$

In Stock, Qty 8

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$21.99

$

In Stock, only 2 left!

0

105

Husqvarna 532407568

REVERSE SWITCH

$17.99

$

In Stock, only 1 left!

0

100

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

75

Husqvarna 580366401

SWITCH.ON/OFF.(DIFF.LOCK)

$41.99

$

In Stock, only 1 left!

0

59

Husqvarna 532400303

OUTLET.12-VOLT
(Superseded to 596941001)

$17.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 587553903

GAUGE.AMMETER.SILVER/WHITE

$

$

Not available

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$11.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 11

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$5.99

$

In Stock, only 1 left!

0

142

Husqvarna 583857801

CHARGE.PORT.PIGTAIL HARNESS
(Superseded to 583593501)

$39.99

$

In Stock, only 2 left!

0

28

Husqvarna 532416588

CABLE.GROUND.21"BLK.8GA.90T

$14.99

$

In Stock, only 2 left!

0

143

Husqvarna 532448059

CHARGE.PORT
(Superseded to 583593501)

$39.99

$

In Stock, only 2 left!

0

40

Husqvarna 501133601

HARNESS.DASH.EDIFF.RND.CHG

$95.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$17.99

$

In Stock, Qty 9

0

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

Note: For 96043023100 only

$21.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 1 left!

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$35.99

$

In Stock, Qty 20+

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$45.99

$

In Stock, Qty 20+

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$27.99

$

In Stock, only 2 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

46

Husqvarna 587554003

GAUGE.HOUR.METER.SILVER/WHITE

$

$

Not available

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

71

Husqvarna 580513001

HARNESS.IGN.CHASSIS.TEX.DCKLOC

$47.99

$

In Stock, only 2 left!

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0
