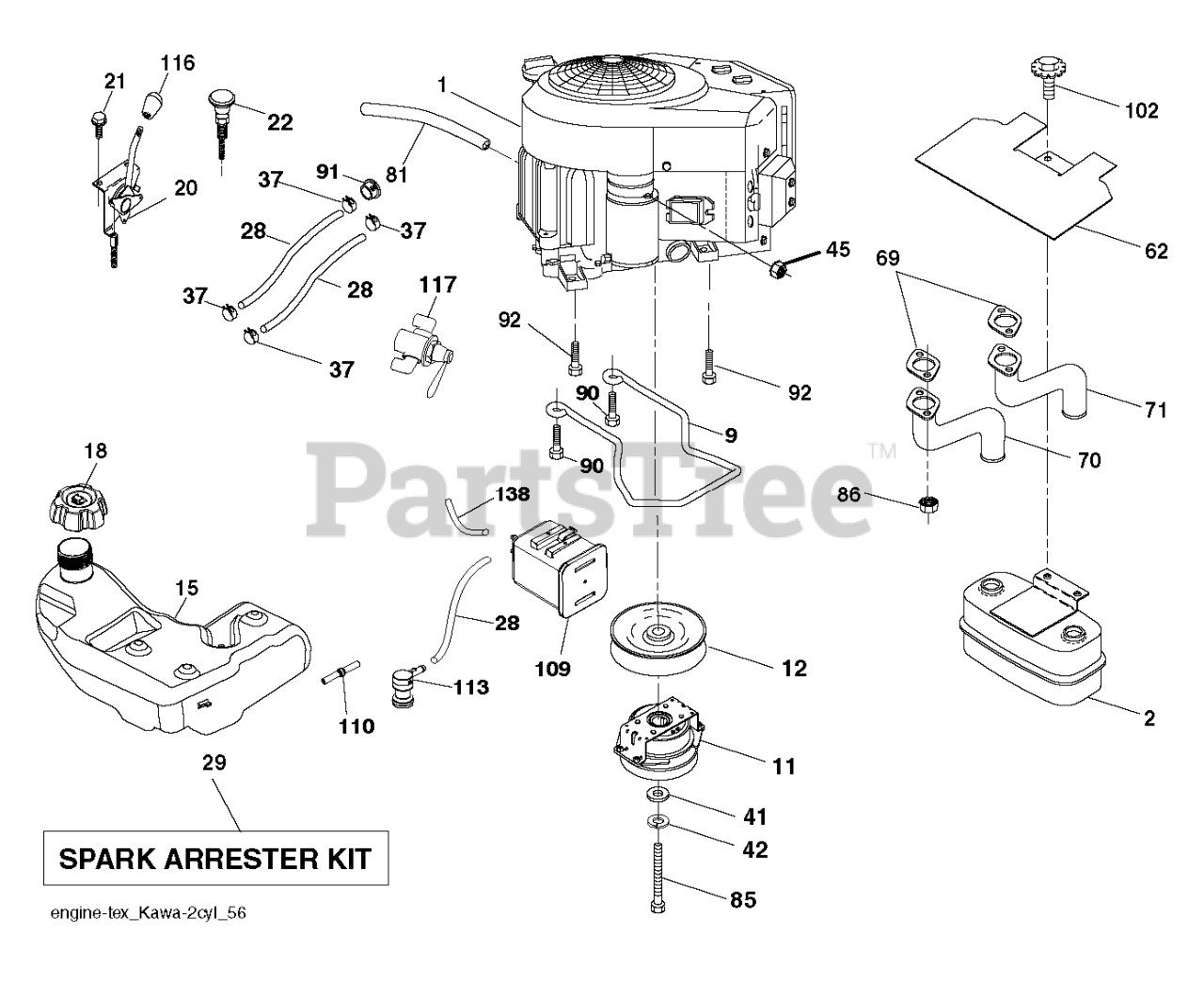

GT 48 DXLS - Husqvarna 48" Garden Tractor (Original) ENGINE Parts Diagram

48" Garden Tractor

ENGINE Parts Diagram

  • Title

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

109

Husqvarna 532414114

CANNISTER, CARBON

Note: For 96043023300 only

$68.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 15

0

12

Husqvarna 532194343

PULLEY ENGINE

$51.99

$

In Stock, only 2 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$39.99

$

In Stock, Qty 6

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$31.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$43.99

$

In Stock, only 2 left!

0

15

Husqvarna 532422901

TANK.ASM.FUEL.4R.GAL.CARB.17
(Superseded to 599306202)

Note: Fits 2.75" filler neck. For 96043023300 only

$284.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$284.99

$

In Stock, Qty 5

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$22.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

138

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

Note: For 96043023300 only

$14.99

$

In Stock, only 1 left!

0

116

Husqvarna 532424659

RP KNOB SOFT TOUCH
(Superseded to 539132624)

$7.99

$

In Stock, Qty 5

0

85

Husqvarna 501606901

BOLT.HEX.7/16-20X3.GR5.YELLOW

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$34.99

$

In Stock, only 2 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$28.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

Note: For 96043023300 only

$26.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$31.99

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 5

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

Note: For 96043023300 only

$13.99

$

In Stock, only 2 left!

0

1

000000000

Note: ENGINE KAWA MODEL NO. FR730-DS04 (445363)

$

$

Not available

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$56.99

$

In Stock, only 3 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

Husqvarna 532438021

TANK.ASM.FUEL.4R.GAL.EPA.17
(Superseded to 529999002)

Note: Fits 2.75" filler neck. For 96043023100 only

$284.99

$

Usually ships in 3-10 days

0
