GT 48 DXLS - Husqvarna 48" Garden Tractor (Original) MOWER DECK / CUTTING DECK Parts Diagram

48" Garden Tractor

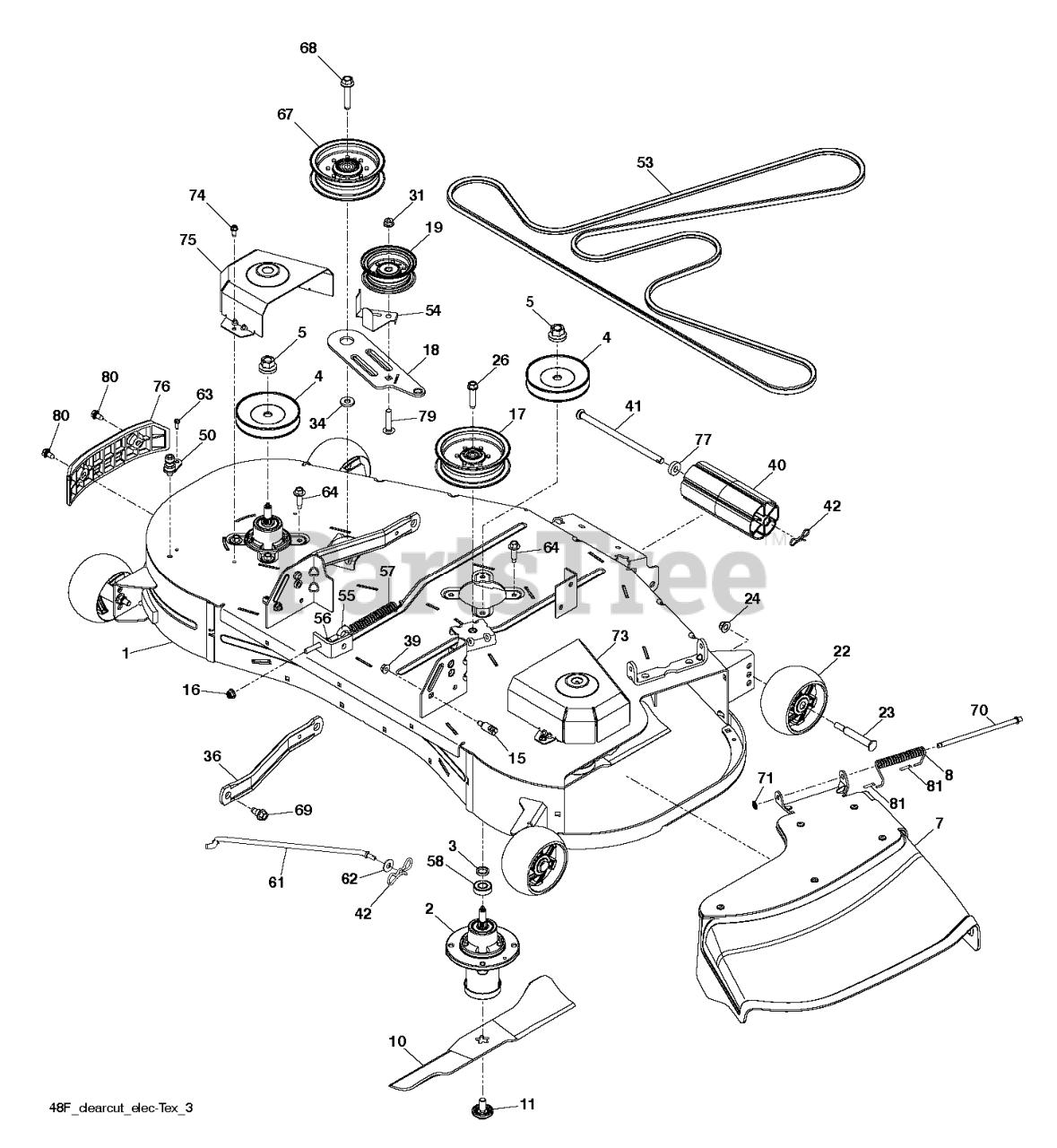

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

2

Husqvarna 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 20+

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

69

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

16

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

79

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

61

Husqvarna 532400337

ROD.ANTI.SWAY.48/54"TE

$

$

Not available

22

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

80

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

19

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

36

Husqvarna 532195185

ARM.SUSPENSION.MOWER

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.49

$

In Stock, Qty 9

0

34

Husqvarna 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

53

Husqvarna 588814301

BELT.DECK.TRACTOR
(Superseded to 599275701)

$66.99

$

In Stock, Qty 13

0

62

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

$30.99

$

In Stock, Qty 20+

0

50

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

15

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

70

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588980701

DEFLECTOR.ASM.48".CLRCT.RES.OR

$

$

Not available

54

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 17

0

67

Husqvarna 532196106

PULLEY.IDLER.2006

$24.99

$

In Stock, Qty 20+

0

76

Husqvarna 582541101

BUMPER.ASM.SIDE.TRIM.CLRCUT.48

$11.99

$

In Stock, Qty 8

0

23

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

58

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

1

Husqvarna 588788002

DECK KIT.SVC.48.CC.ASM.668
(Superseded to 583810001)

$739.99

$

Usually ships in 3-10 days

0

57

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV

$4.99

$

In Stock, Qty 20+

0

73

Husqvarna 588812402

COVER.PNT.MANDREL.RH.GREY

$12.99

$

Usually ships in 3-10 days

0

63

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

$

$

Not available

18

Husqvarna 588812302

ARM.PNT.CLUTCHING.ASM.EDIP

$24.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

--

Husqvarna 532416405

COUPLING.QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

31

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 588813102

COVER.PNT.MANDREL.LH.TR.GREY

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532173434

MANDREL PULLEY

$18.99

$

In Stock, Qty 20+

0

17

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$34.99

$

In Stock, Qty 20+

0

71

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

64

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$4.99

$

In Stock, Qty 6

0

77

Husqvarna 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 11

0

74

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

11

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0
