GT 50 B (UT-26049) - Green Machine String Trimmer Exhaust System Parts Diagram

String Trimmer

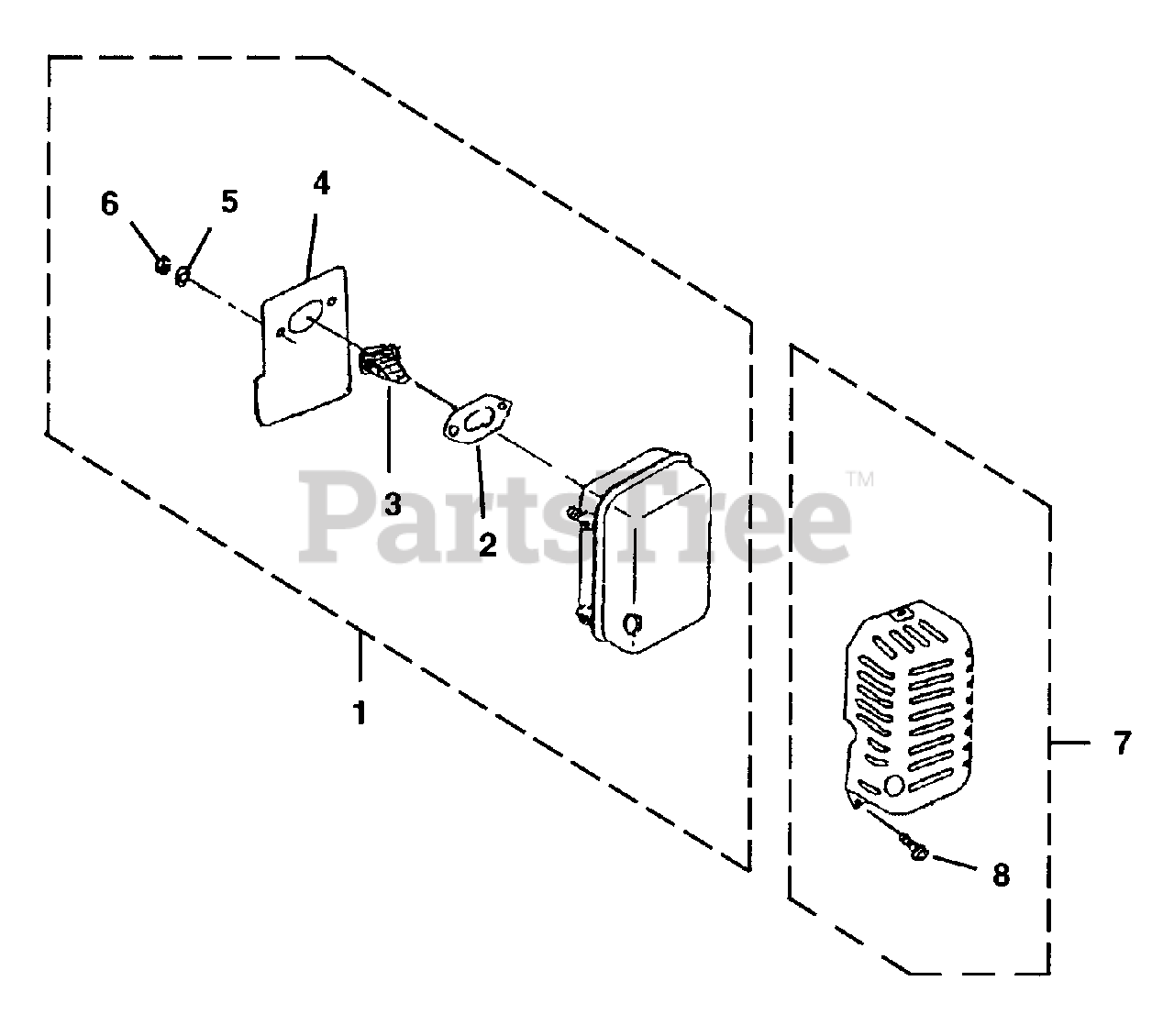

Exhaust System Parts Diagram

  • Title

1

Homelite UP05495

MUFFLER ASSEMBLY

$

$

Not available

2

Homelite PS03277

GASKET - Muffler

$

$

Not available

3

Homelite PS03278

SPARK ARRESTER

$

$

Not available

4

Homelite PS03279

GASKET - Muffler

$

$

Currently unavailable

5

Homelite PS00503

WASHER-Spring

$

$

Not available

6

Homelite PS03280

NUT

$

$

Not available

7

Homelite UP05496

MUFFLER COVER

$

$

Not available

8

Homelite PS03281

SCREW
(Superseded to PS03247)

Note: Torque Specs 11 - 15 In/Lbs 1.2 - 1.7 Nm

$

$

Not available
