GT 50 B (UT-26049) - Green Machine String Trimmer Ignition - Rotor - Clutch - Isolator Parts Diagram

String Trimmer

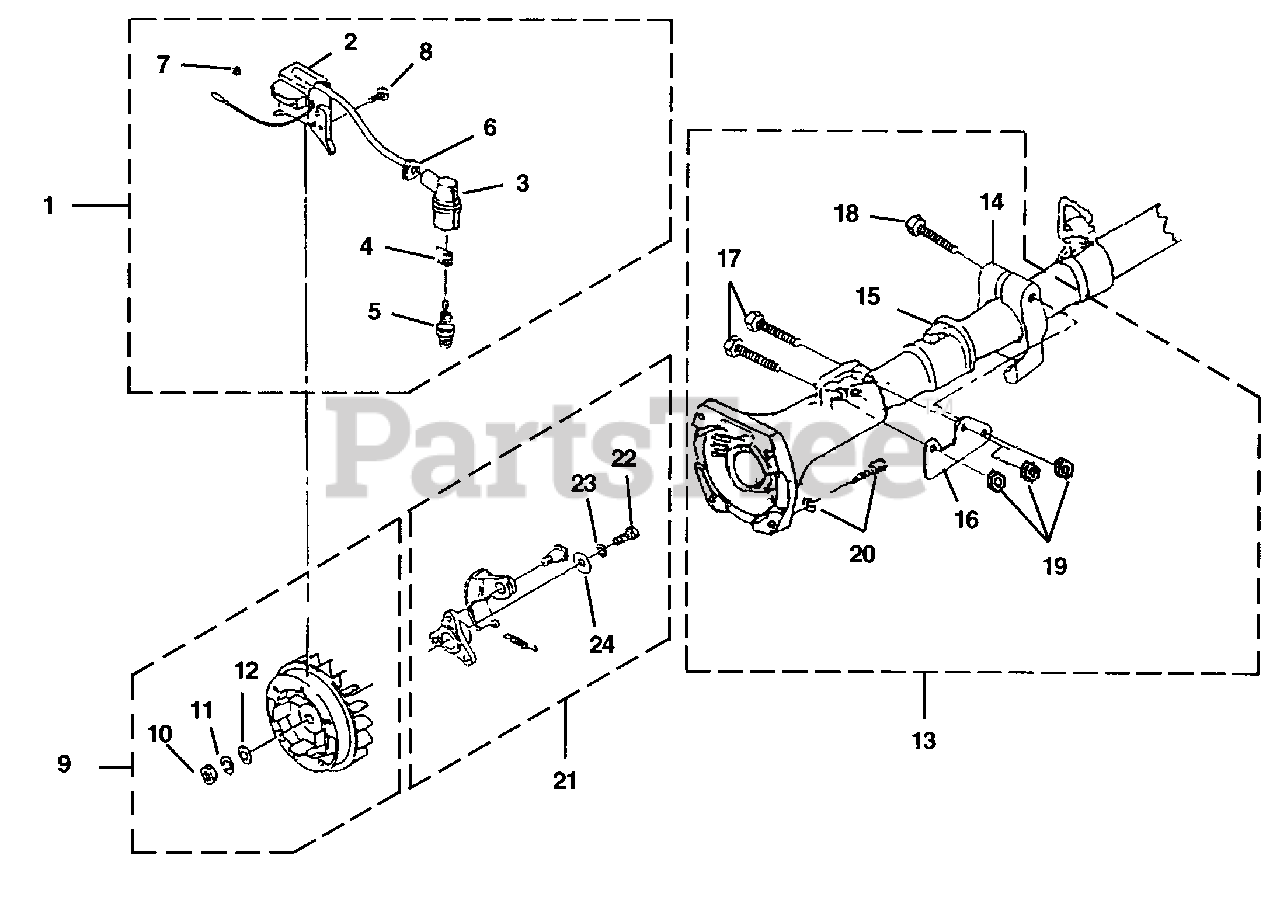

Ignition - Rotor - Clutch - Isolator Parts Diagram

  • Title

1

Homelite UP05491

IGNITION KIT

$

$

Not available

2

Homelite PS03260

MODULE - Ignition

$

$

Not available

3

Homelite PS03045

CAP, PLUG

$

$

Not available

4

UNKNOWN

$

$

Not available

5

Homelite PS02691

SPARK PLUG

Note: Torque Specs 105 - 155 In/Lbs 11.9 - 17.5 Nm

$

$

Currently unavailable

6

Homelite PS03263

GROMMET

$

$

Not available

7

Homelite PS03264

GROMMET

$

$

Not available

8

Homelite PS03265

SCREW - Socket Hd (MS X 18W SW)

Note: Torque Specs 38 - 42 In/Lbs 4.3 - 4.7 Nm

$

$

Not available

9

Homelite UP05492

ROTOR ASSEMBLY

Note: Torque Specs 96 - 112 In/Lbs 10.8 - 12.7 Nm

$

$

Not available

10

Homelite PS03266

NUT

$

$

Not available

11

Homelite PS03267

WASHER - Spring

$

$

Not available

12

Homelite PS03268

WASHER

$

$

Not available

13

Homelite UP05454

CLUTCH HSG ASSY

$

$

Currently unavailable

14

Homelite PS03082

STOPPER

$

$

Not available

15

Homelite PS03083

STOPPER

$

$

Currently unavailable

16

Homelite PS03093

PLATE

$

$

Not available

17

Homelite PS00455

BOLT (M6 X 30)

$

$

Not available

18

Homelite PS03085

BOLT

$

$

Currently unavailable

19

Homelite PS03094

NUT

$

$

Currently unavailable

20

Homelite PS03096

SCREW - Socket Hd (M6 X 18W SW)

$

$

Not available

21

Homelite UP05452

CLUTCH ASSEMBLY

$

$

Not available

22

Homelite PS03079

BOLT

Note: Torque Specs 65 - 87 In/Lbs 7.3 - 9.8 Nm

$

$

Not available

23

Homelite PS03080

WASHER - Spring
(Superseded to PS00503)

$

$

Not available

24

Homelite PS00829

WASHER

$

$

Not available
