GT 50 B (UT-26049) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

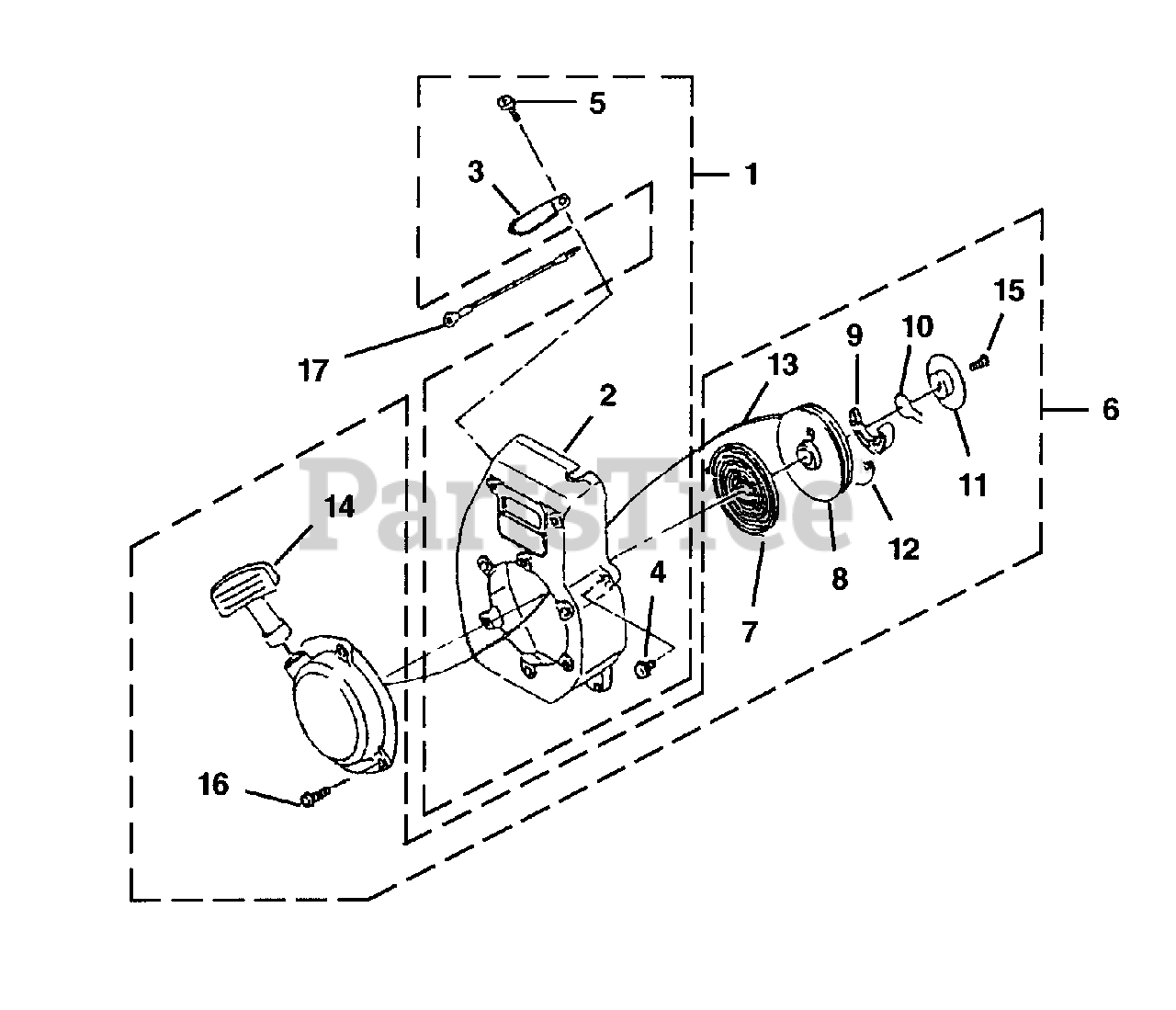

Starter Parts Diagram

  • Title

1

Homelite UP05502

BLOWER HOUSING

$

$

Not available

2

Homelite PS03306

HOUSING, BLOWER

$

$

Not available

3

Homelite PS03366

CLAMP

$

$

Not available

4

Homelite PS03308

SCREW
(Superseded to PS03255)

Note: Torque Specs 26 - 34 In/Lbs 2.9 - 3.8 Nm

$

$

Not available

5

Homelite PS03309

SCREW

Note: Torque Specs 26 - 34 In/Lbs 2.9 - 3.8 Nm

$

$

Currently unavailable

6

Homelite UP05504

STARTER ASSEMBLY

$

$

Currently unavailable

7

Homelite PS03310

SPRING

$

$

Not available

8

Homelite PS03311

PULLEY

$

$

Not available

9

Homelite PS00809

RATCHET

$

$

Not available

10

Homelite PS00810

SPRING-Friction

$

$

Not available

11

Homelite PS00811

PLATE-Friction

$

$

Not available

12

Homelite PS00808

SPRING-Return

$

$

Not available

13

Homelite PS03312

ROPE - Starter

$

$

Not available

14

Homelite PS00801

GRIP

$

$

Not available

15

Homelite PS00710

SCREW

Note: Torque Specs 26 - 34 In/Lbs 2.9 - 3.8 Nm

$

$

Not available

16

Homelite PS03313

SCREW

Note: Torque Specs 26 - 34 In/Lbs 2.9 - 3.8 Nm

$

$

Not available

17

Homelite PS03314

WIRE

$

$

Not available
